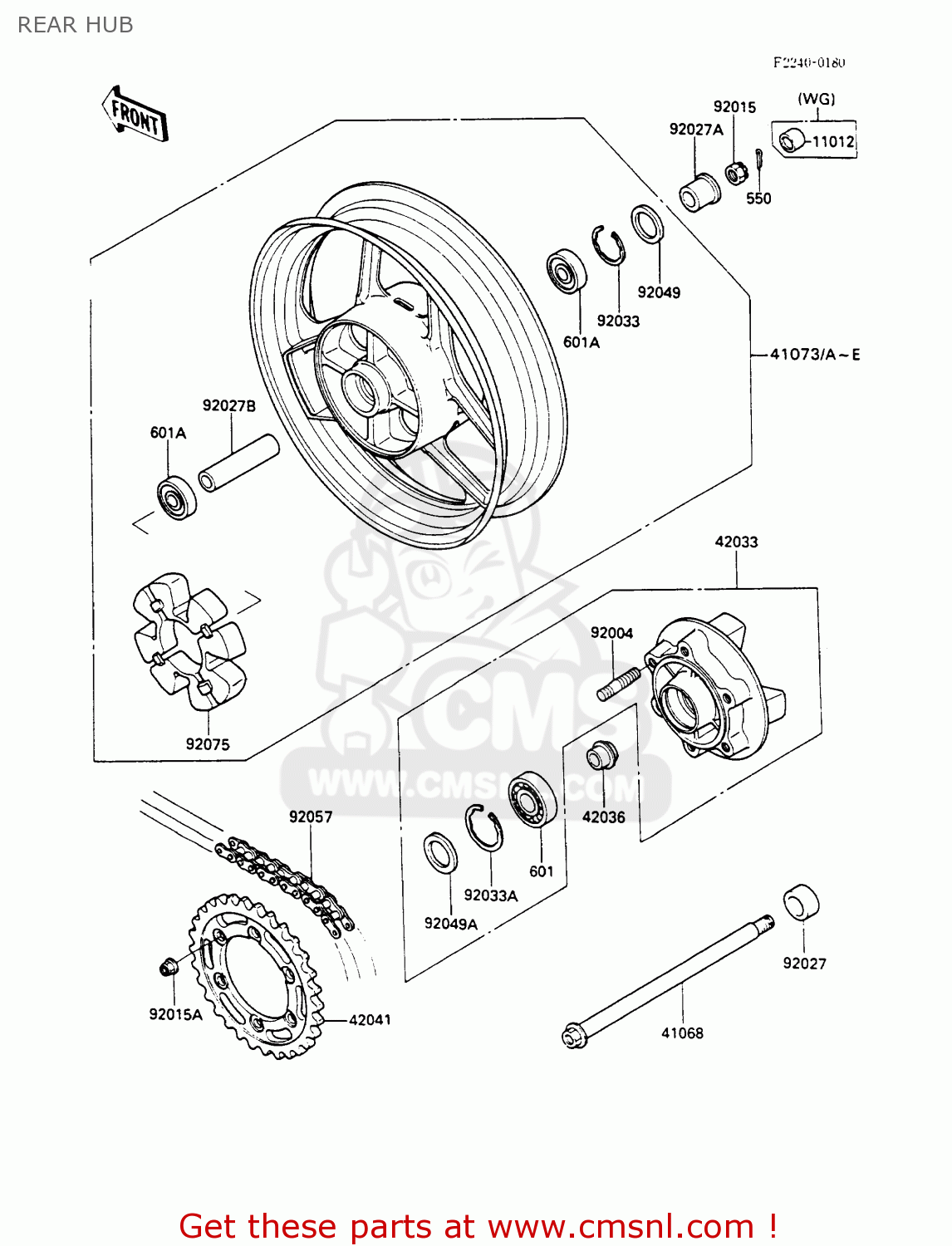

REAR HUB

ref

part #

description

quantity

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6205G
ref: 601

BEARING BALL

€ 14.00

601A

601B6303ZZ
ref: 601A

BEARING-BALL,#6303ZZC

€ 32.50

11012

110121592
ref: 11012
FG

CAP,AXLE NUT

€ 5.00

41068

410681232
ref: 41068

AXLE,RR

€ 36.00

41073A

410731310T6
ref: 41073A
EUFGFRGRITSDUK

WHEEL-ASSY,RR,WHITE N

€ 700.50

41073B

410731310X4
ref: 41073B

WHEEL-ASSY,RR,F.RED

€ 526.50

42033

420331114
ref: 42033

COUPLING-ASSY,RR HUB

€ 204.50

42036

420361149
ref: 42036

SLEEVE,RR HUB,L=26

€ 20.50

42041

420411287
ref: 42041

SPROCKET-HUB,39T

€ 38.00

92004

920041146
ref: 92004

STUD,10X24

€ 4.00

92015

42045014
ref: 92015

NUT CASTLE, 16M/M

€ 6.50

92015A

920151502
ref: 92015A

NUT,FLANGED,10MM

€ 7.00

92027

920271874
ref: 92027

COLLAR,RR AXLE,L=20

€ 13.50

92027A

920271875
ref: 92027A

COLLAR,RR AXLE,L=28

€ 16.50

92027B

920271876
ref: 92027B

COLLAR,L=106

€ 15.00

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92033A

920331043
ref: 92033A

RING,SNAP,56.2M/M

€ 6.00

92049

920491056
ref: 92049

OIL SEAL,BJN28475

€ 8.50

92049A

92052006
ref: 92049A

OIL SEAL WTC35527

€ 6.50

92057

920571232
ref: 92057

CHAIN,DRIVE,EK50MV-OX

€ 167.50

92075

920751687
ref: 92075

DAMPER,SHOCK,RR HUB

€ 54.50
