CRANKCASE BOLT PATTERN

ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST

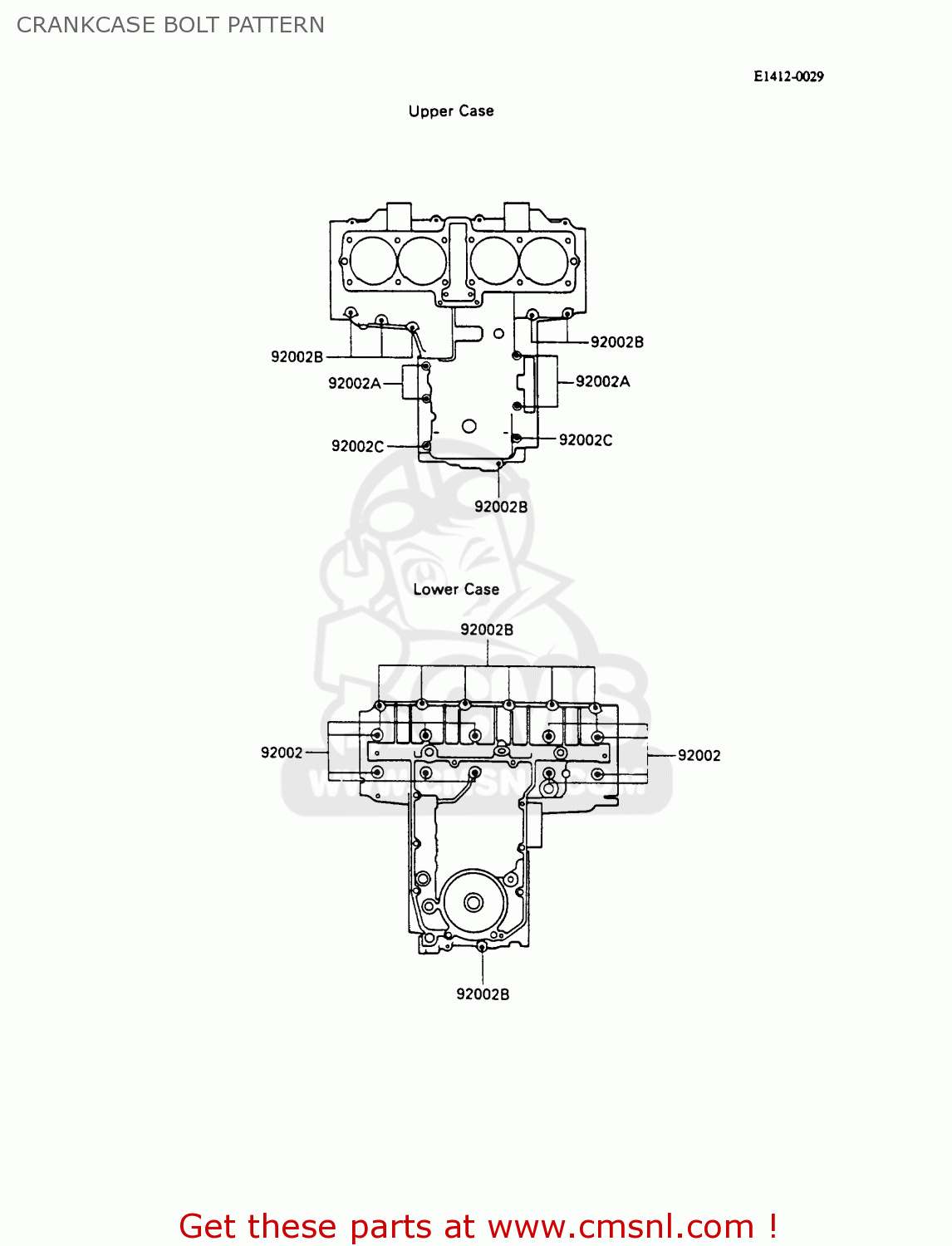

Crankcase bolt pattern diagram ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST

CRANKCASE BOLT PATTERN ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST

CRANKCASE BOLT PATTERN ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

92002

920021077
ref: 92002

BOLT,8X95

€ 7.50

92002A

920021078
ref: 92002A

BOLT,6X95

€ 2.50

92002B

920021080
ref: 92002B

BOLT,6X40

€ 3.50

92002C

920021483
ref: 92002C

BOLT,6X75

€ 3.00
