FRONT MASTER CYLINDER

ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST

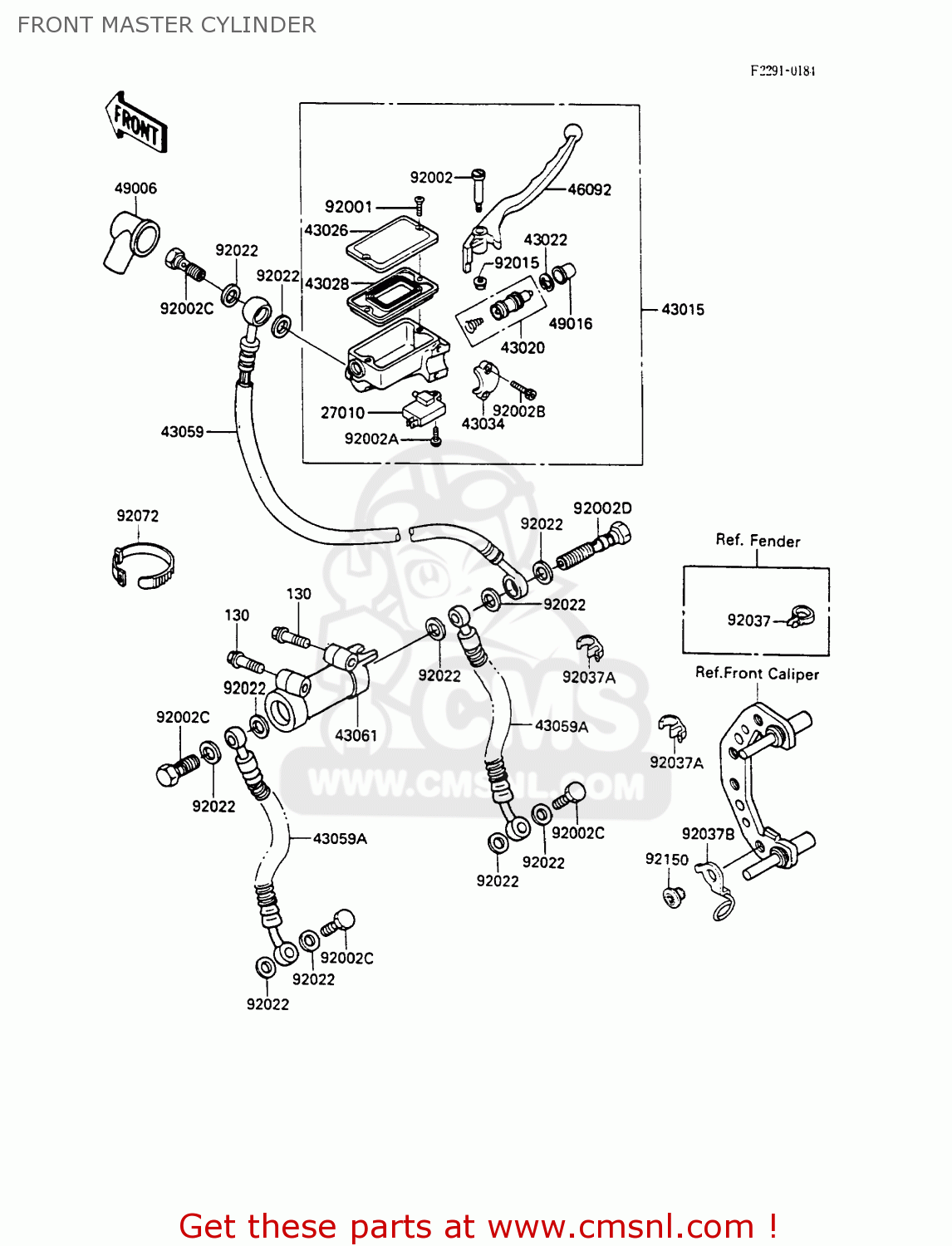

Front master cylinder diagram ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST

FRONT MASTER CYLINDER ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST
FRONT MASTER CYLINDER ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST
FRONT MASTER CYLINDER ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
130
130G0635
ref: 130
BOLT, FLANGED, 6X35
130G0635
€ 0.50
27010
270101170
ref: 27010
SWITCH,BRAKE
270101170
€ 26.00
43015
430151345
ref: 43015
CYLINDER-ASSY-MASTER,
€ 262.00
43020
430201054
ref: 43020
PISTON-COMP-BRAKE,FR
430201054
€ 47.50
43022
430221010
ref: 43022
STOPPER-BRAKE,PISTON
430221010
€ 3.00
43026
430261055
ref: 43026
CAP-BRAKE,FR
430261055
€ 25.00
43028
430281058
ref: 43028
DIAPHRAGM,MASTER CYLI
430281058
€ 15.50
43034
430341053
ref: 43034
HOLDER-BRAKE,MASTER C
430341053
€ 26.00
43059
430591296
ref: 43059
HOSE-BRAKE,FR
430591296
€ 63.00
43059A
430591386
ref: 43059A
HOSE-BRAKE,FR
€ 63.00
43061
430611002
ref: 43061
JOINT-BRAKE
430611002
€ 48.00
46092
460921117
ref: 46092
LEVER-GRIP,FRONT BRAK
460921117
€ 14.00
49006
490061040
ref: 49006
BOOT,DUST
490061040
€ 7.50
49016
490161044
ref: 49016
COVER-SEAL,MASTER CYL
490161044
€ 7.00
92001
920011727
ref: 92001
BOLT,MASTER CYLINDER
920011727
€ 2.50
92002
920021322
ref: 92002
BOLT,LEVER SET
920021322
€ 8.00
92002A
920021323
ref: 92002A
BOLT
920021323
€ 2.50
92002B
920021324
ref: 92002B
BOLT,SOCKET,6X20
920021324
€ 5.00
92002C
920021888
ref: 92002C
BOLT,OIL,L=23
920021888
€ 3.50
92002D
920021909
ref: 92002D
BOLT
920021909
€ 8.50
92015
920151233
ref: 92015
NUT,FLANGED,6MM
920151233
€ 3.50
92022
43067001
ref: 92022
WASHER,10.5X15X1.5
43067001
€ 1.50
92037
920371827
ref: 92037
CLAMP,HOSE
920371827
€ 5.00
92037A
920371858
ref: 92037A
CLAMP,HOSE
920371858
€ 2.50
92037B
920371917
ref: 92037B
CLAMP,CABLE
920371917
€ 9.00
92072
92072056
ref: 92072
BAND,RUBBER
92072056
€ 3.00
92150
920021973
ref: 92150
BOLT,10X10
€ 3.00
