CYLINDER HEAD COVER

ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST

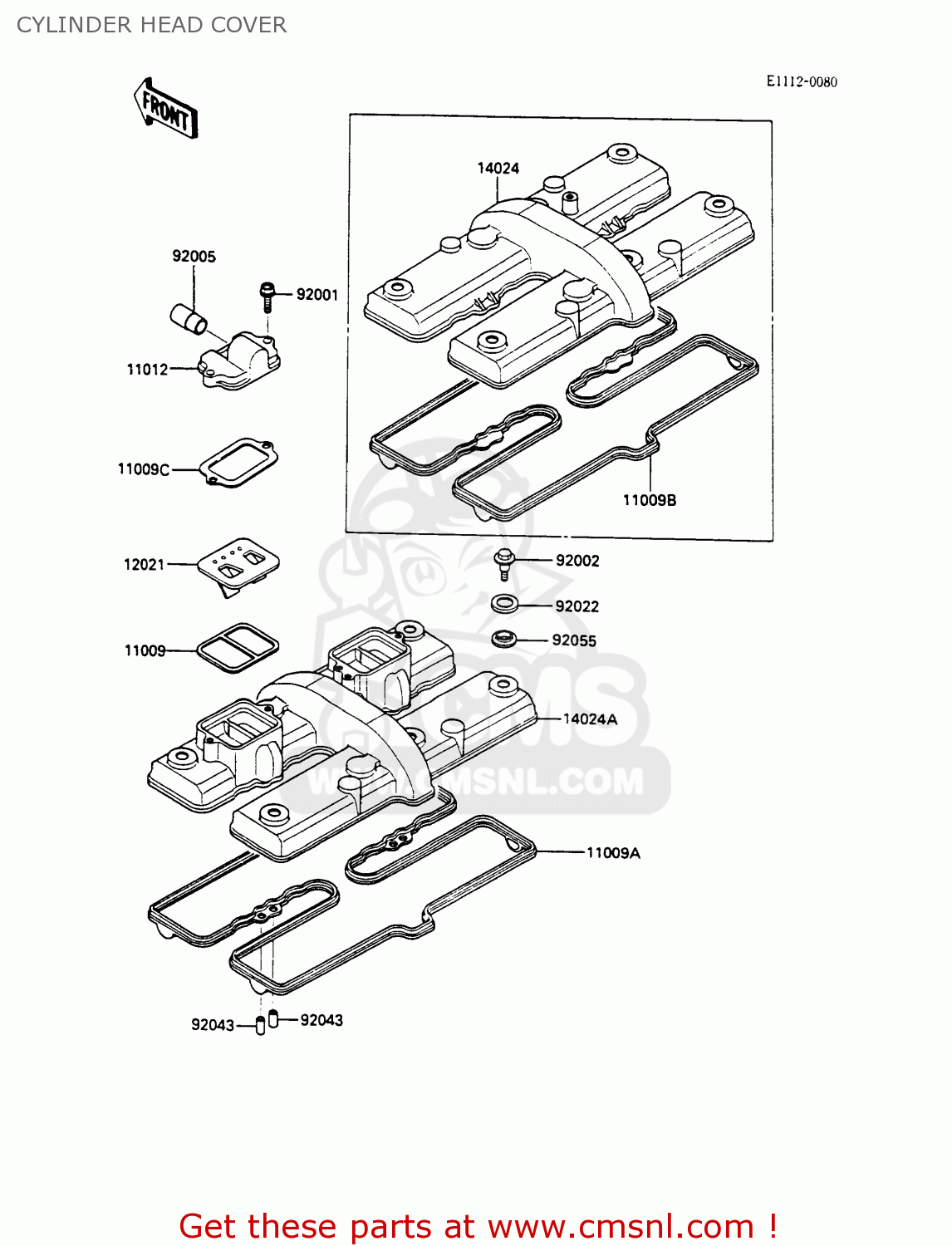

Cylinder head cover diagram ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST

CYLINDER HEAD COVER ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST

CYLINDER HEAD COVER ZX600C1 GPX600R 1988 EUROPE UK FR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

11009

110091379
ref: 11009
ST

GASKET,REED VALVE (MCA)

€ 6.00

11009A

110091497
ref: 11009A
ST

GASKET,CYLINDER HEAD (NAS)

€ 60.50

11009B

110091498
ref: 11009B
EUFGFRGRITNRSDSPUK

GASKET,CYLINDER HEAD (NAS)

€ 67.00

11009C

110091545
ref: 11009C
ST

GASKET (MCA)

€ 3.50

11012

110121481
ref: 11012
ST

CAP,REED VALVE

€ 32.00

12021

120211053
ref: 12021
ST

VALVE-ASSY-REED

€ 50.50

14024

140241142
ref: 14024
EUFGFRGRITNRSDSPUK

COVER,CYLINDER HEAD

€ 122.00

14024A

140241144
ref: 14024A
ST

COVER,CYLINDER HEAD

€ 134.00

92001

920011352
ref: 92001
ST

BOLT,FLANGED,6X22

€ 2.50

92002

920021504
ref: 92002

BOLT

€ 3.00

92005

920051006
ref: 92005
ST

FITTING,REED VALVE

€ 6.00

92022

920221637
ref: 92022

WASHER,HEAD COVER BOL

€ 3.50

92043

920431263
ref: 92043
ST

PIN,DOWEL,6.2X8X14

€ 0.50

92055

920551225
ref: 92055

RING-O,HEAD COVER BOL

€ 4.50
