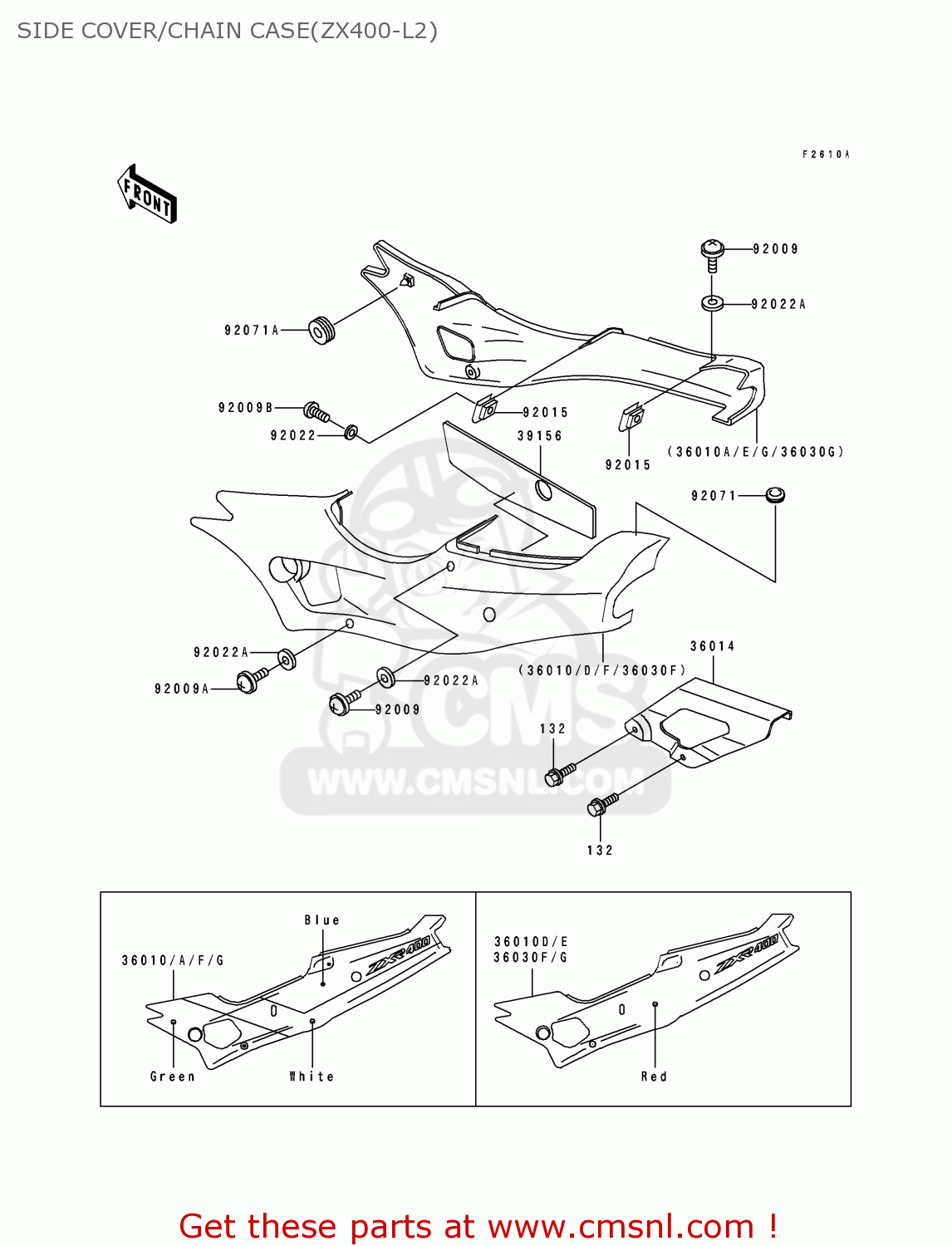

SIDE COVER/CHAIN CASE(ZX400-L2)

ref

part #

description

quantity

36010

360105466KE
ref: 36010
AREUFRGRITSDUK

COVER-SIDE,LH,GREEN/W

€ 412.00

36010A

360105467KE
ref: 36010A
AREUFRGRITSDUK

COVER-SIDE,RH,GREEN/W

€ 412.00

36010D

360105472H3
ref: 36010D
EUGRNRUK

COVER-SIDE,LH,C.W.RED

€ 327.50

36010E

360105473H3
ref: 36010E
EUGRNRUK

COVER-SIDE,RH,C.W.RED

€ 367.50

36010F

360105474KE
ref: 36010F
FG

COVER-SIDE,LH,GREEN/W

€ 387.00

36010G

360105475KE
ref: 36010G
FG

COVER-SIDE,RH,GREEN/W

€ 387.00

36014

360141167
ref: 36014

CASE-CHAIN

€ 65.50

36014

360141167
ref: 36014
AREUFRGRITNRSDUK

CASE-CHAIN

€ 65.50

36030F

360305117H3
ref: 36030F
FG

COVER-SIDE,LH,C.W.RED

€ 308.00

36030G

360305118H3
ref: 36030G
FG

COVER-SIDE,RH,C.W.RED

€ 308.00

132

132E0612
ref: 132

BOLT-FLANGED-SMALL

€ 3.50

39156

391561241
ref: 39156

PAD,SIDE COVER,LH

€ 14.00

92009

920091287
ref: 92009

SCREW,6X14

€ 1.50

92009A

920091354
ref: 92009A

SCREW,6X30

€ 4.00

92009B

920091654
ref: 92009B

SCREW

€ 0.50

92015

920151569
ref: 92015

NUT,5MM

€ 4.50

92022

920221038
ref: 92022

WASHER,PLAIN

€ 2.50

92022A

920221654
ref: 92022A

WASHER,6.5X16X1.0

€ 2.50

92071

920711027
ref: 92071
FG

GROMMET,AIR CLEANER

€ 3.00

92071A

920711043
ref: 92071A

GROMMET,SIDE COVER

€ 3.50

all assemblies
