FRAME FITTING

ZX400L2 ZXR400 1992 EUROPE UK FR AR FG GR IT NR SD

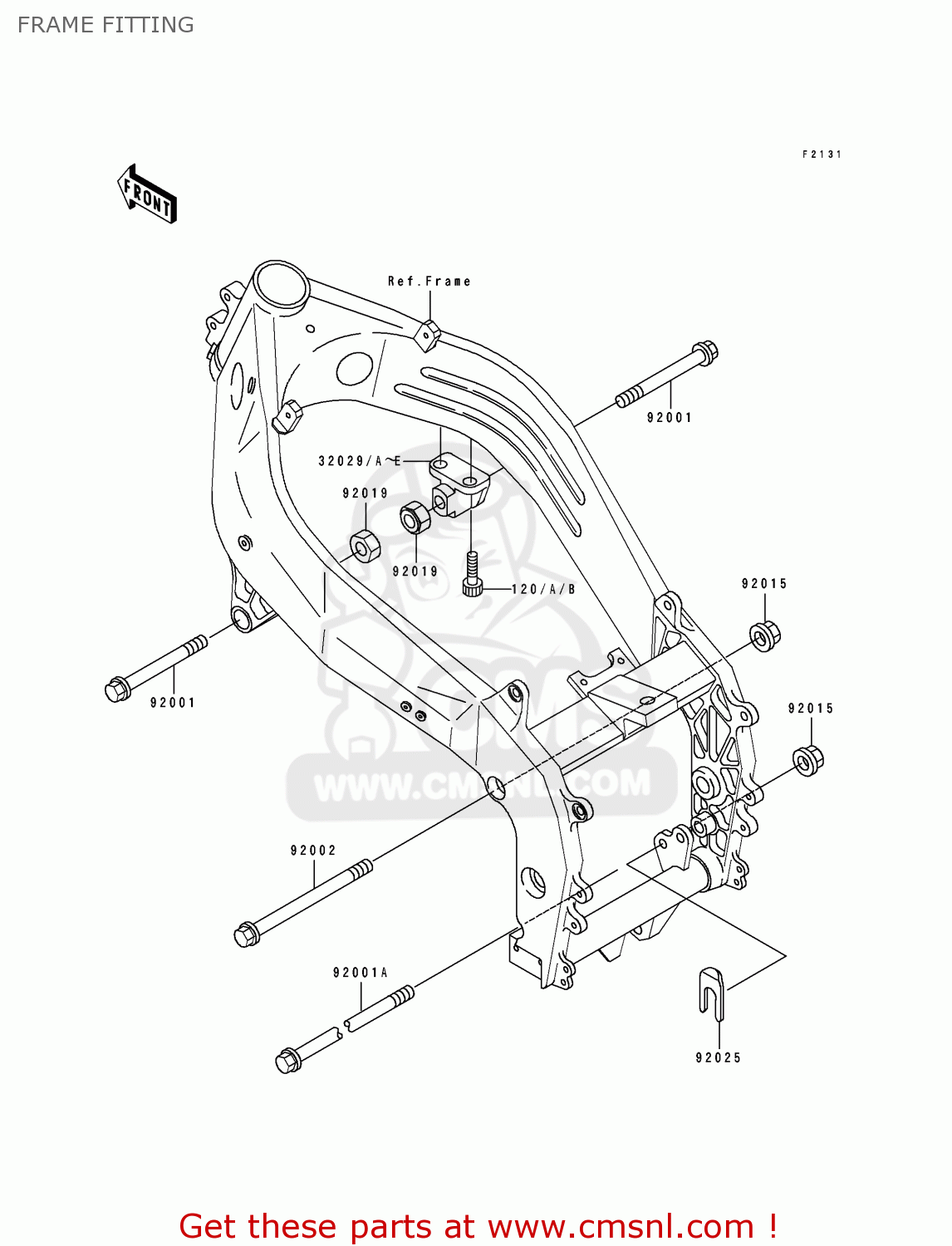

Frame fitting diagram ZX400L2 ZXR400 1992 EUROPE UK FR AR FG GR IT NR SD

prices are in EUR

ref

part #

description

quantity

120

120P0820
ref: 120

BOLT-SOCKET

€ 2.50

120B

120P0830
ref: 120B

BOLT,SOCKET,8X30

€ 2.00

32029

320291764KF
ref: 32029
AREUFGFRGRITSDUK

BRACKET-ENGINE,RH,SIL

€ 27.50

32029A

32029176410
ref: 32029A
EUFGGRNRUK

BRACKET-ENGINE,RH,BLA

€ 23.00

32029D

320291837KF
ref: 32029D
AREUFGFRGRITSDUK

BRACKET-ENGINE,RH,SIL

€ 27.50

32029E

32029183710
ref: 32029E
EUFGGRNRUK

BRACKET-ENGINE,RH,BLA

€ 23.00

92001

920011619
ref: 92001

BOLT,FLANGED,10X85

€ 5.50

92001A

920011621
ref: 92001A

BOLT,FLANGED,10X180

€ 15.00

92002

920021087
ref: 92002

BOLT,10X130

€ 6.50

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92019

92019021
ref: 92019

NUT,LOCK,10M/M

€ 2.00

92025

92025053
ref: 92025

SHIM,T=0.5

€ 3.00
