HEAD LAMP

ZX400L2 ZXR400 1992 EUROPE UK FR AR FG GR IT NR SD

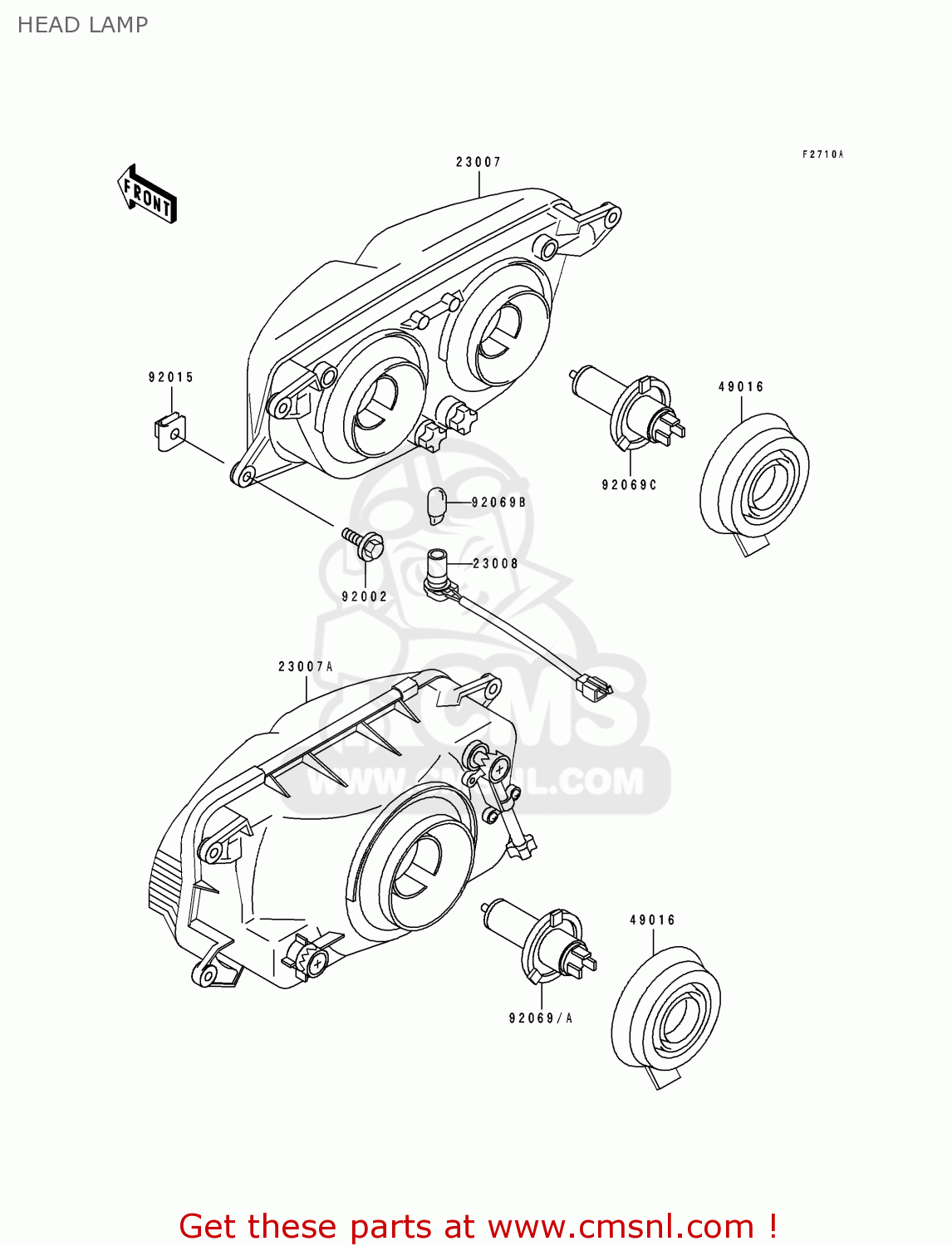

Head lamp diagram ZX400L2 ZXR400 1992 EUROPE UK FR AR FG GR IT NR SD

prices are in EUR

ref

part #

description

quantity

23007

230071272
ref: 23007
UK

LENS-COMP,HEAD LAMP

€ 433.00

23007A

230071276
ref: 23007A
AREUFGFRGRITNRSD

LENS-COMP,HEAD LAMP

€ 375.00

23008

230081472
ref: 23008

SOCKET-ASSY,HEAD LAMP

€ 17.50

49016

490161137
ref: 49016
UK

COVER-SEAL,HEAD LAMP

€ 10.50

49016

490161137
ref: 49016
AREUFGFRGRITNRSD

COVER-SEAL,HEAD LAMP

€ 10.50

92002

920021320
ref: 92002

BOLT,6X25

€ 3.00

92015

920151094
ref: 92015

NUT,MUFFLER

€ 5.50

92069

920691002
ref: 92069
AREUFGGRITNRSD

BULB,12V-60155W

€ 15.00

92069A

920691004
ref: 92069A
FR

BULB,12V 60/55W,H4,YE

€ 15.00

92069B

920691016
ref: 92069B

BULB,12V 5W

€ 4.00

92069C

920691079
ref: 92069C
UK

BULB,12V 60/35W

€ 30.50

HEAD LAMP

all assemblies
