CAMSHAFT/TENSIONER

ZX400L2 ZXR400 1992 EUROPE UK FR AR FG GR IT NR SD

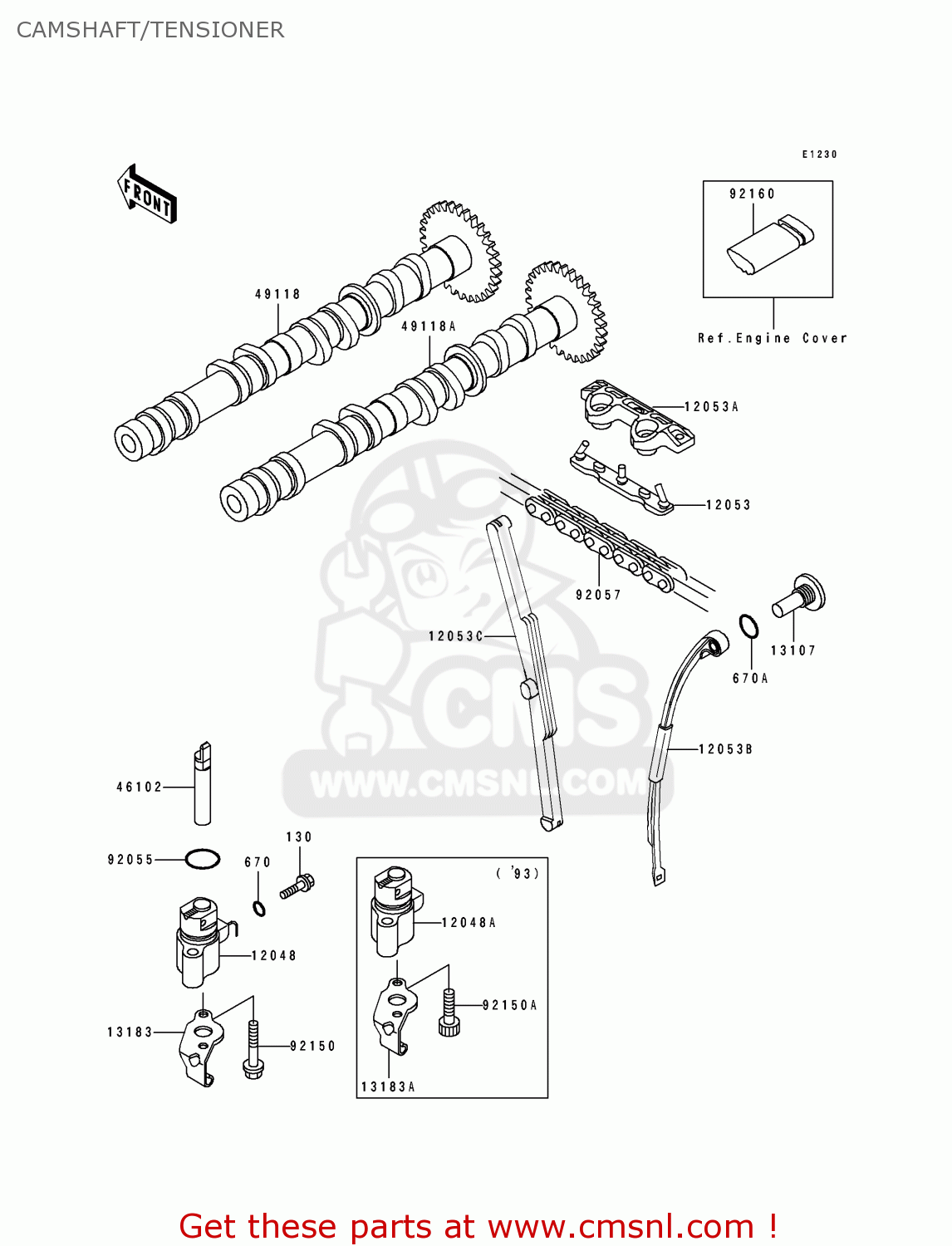

Camshaft/tensioner diagram ZX400L2 ZXR400 1992 EUROPE UK FR AR FG GR IT NR SD

prices are in EUR

ref

part #

description

quantity

130

130G0508
ref: 130

BOLT-FLANGED

€ 0.50

670

670B1506
ref: 670

O RING,6MM

€ 1.00

670A

670D2014
ref: 670A

O RING,14MM

€ 3.50

12048

120481096
ref: 12048

TENSIONER-ASSY

€ 39.50

12053

120531244
ref: 12053

GUIDE-CHAIN,HEAD

€ 6.00

12053A

120531245
ref: 12053A

GUIDE-CHAIN,HEAD

€ 12.50

12053B

120531265
ref: 12053B

GUIDE-CHAIN,RR

€ 37.50

12053C

120531266
ref: 12053C

GUIDE-CHAIN,FR

€ 30.00

13107

131071226
ref: 13107

SHAFT

€ 17.00

13183

131831258
ref: 13183

PLATE

€ 4.50

46102

461021261
ref: 46102

ROD,CAM CHAIN TENSION

€ 25.50

49118

491181088
ref: 49118

CAMSHAFT-COMP,EXHAUST

€ 351.50

49118A

491181095
ref: 49118A

CAMSHAFT-COMP,INTAKE

€ 310.50

92055

92055086
ref: 92055

RING-O

€ 2.50

92057

920571328
ref: 92057

CHAIN,CAM,88RH2010

€ 35.50

92150

921501137
ref: 92150

BOLT,6X35

€ 3.50

92160

921601134
ref: 92160

DAMPER

€ 3.50
