FUEL TANK(ZX400-L2)

ZX400L2 ZXR400 1992 EUROPE UK FR AR FG GR IT NR SD

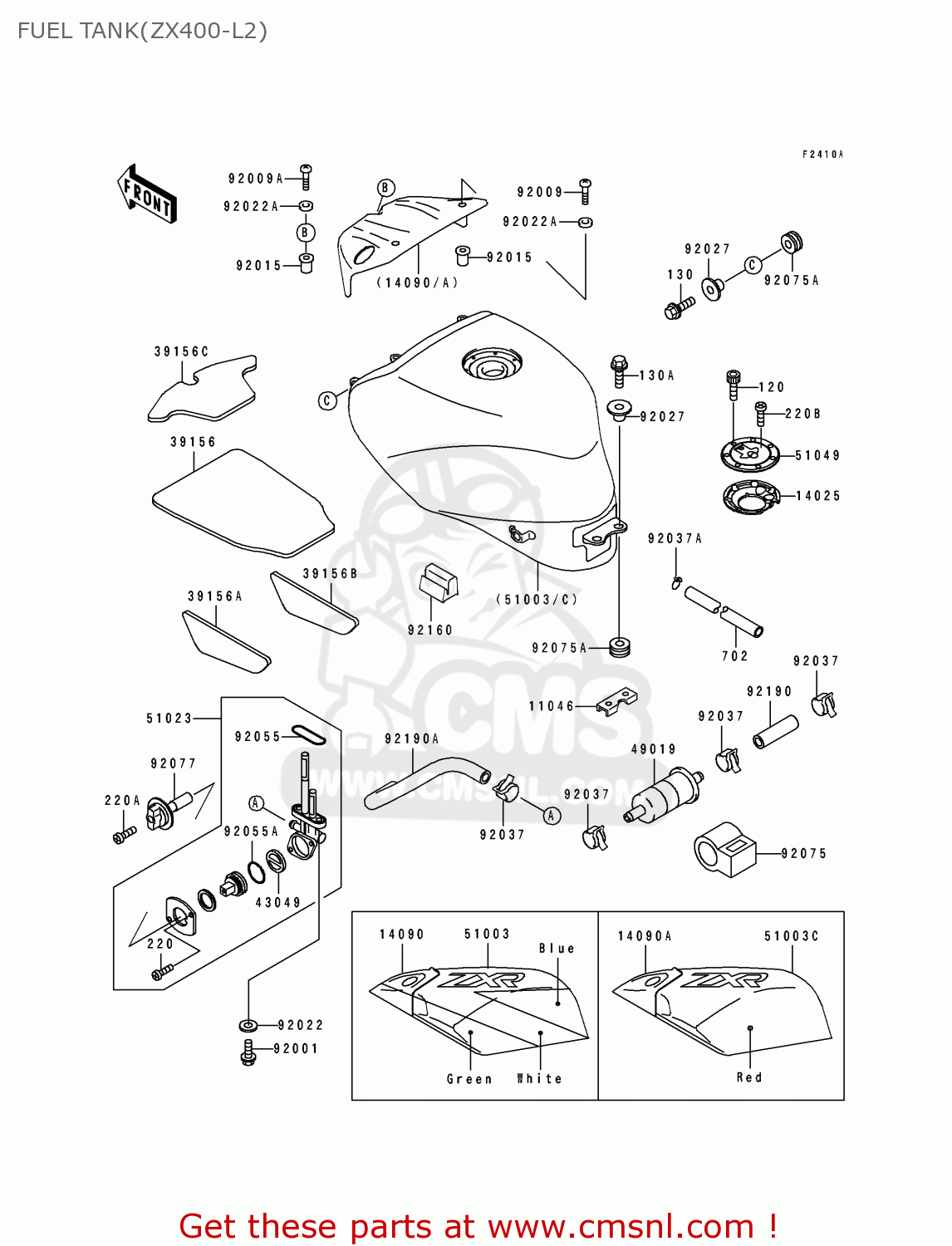

Fuel tank(zx400-l2) diagram ZX400L2 ZXR400 1992 EUROPE UK FR AR FG GR IT NR SD

FUEL TANK(ZX400-L2) ZX400L2 ZXR400 1992 EUROPE UK FR AR FG GR IT NR SD
FUEL TANK(ZX400-L2) ZX400L2 ZXR400 1992 EUROPE UK FR AR FG GR IT NR SD
FUEL TANK(ZX400-L2) ZX400L2 ZXR400 1992 EUROPE UK FR AR FG GR IT NR SD
prices are in EUR
ref
part #
description
quantity
11046
110461712
ref: 11046
BRACKET,FUEL TANK,RR
110461712
€ 4.00
14025
140251913
ref: 14025
COVER,TANK CAP
140251913
€ 13.50
14090
140901080CK
ref: 14090
AREUFGFRGRITSDUK
COVER,FUEL TANK,GREEN
140901080CK
€ 164.50
14090A
140901080H3
ref: 14090A
EUFGGRNRUK
COVER,FUEL TANK,C.W.R
€ 164.50
39156
391561229
ref: 39156
PAD,FUEL TANK
391561229
€ 16.00
39156A
391561230
ref: 39156A
PAD,FUEL TANK,LH
391561230
€ 4.50
39156B
391561231
ref: 39156B
PAD,FUEL TANK,RH
391561231
€ 4.50
39156C
391561232
ref: 39156C
PAD,FUEL TANK COVER
€ 7.50
43049
430491066
ref: 43049
PACKING,TAP VALVE (NAS)
430491066
€ 5.00
49019
490191055
ref: 49019
FILTER-FUEL
490191055
€ 14.50
51003
510035265KE
ref: 51003
AREUFGFRGRITSDUK
TANK-COMP-FUEL,GREEN/
€ 734.00
51003C
510035268H3
ref: 51003C
EUFGGRNRUK
TANK-COMP-FUEL,C.W.RE
€ 734.00
51023
510231167
ref: 51023
TAP-ASSY,FUEL
€ 74.50
51049
510491091
ref: 51049
CAP-TANK,FUEL
510491091
€ 88.00
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
920011091
€ 2.50
92009
920091654
ref: 92009
SCREW
920091654
€ 0.50
92009A
920091658
ref: 92009A
SCREW
920091658
€ 2.50
92015
920151757A
ref: 92015
NUT,5MM
920151757A
€ 5.00
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
92022183
€ 2.50
92022A
920221977
ref: 92022A
WASHER,5.1X10X1.0
920221977
€ 2.50
92027
920271450
ref: 92027
COLLAR,L=13.1,BLACK
920271450
€ 4.00
92037
920371181
ref: 92037
CLAMP
920371181
€ 1.00
92037A
920371712
ref: 92037A
CLAMP
920371712
€ 3.00
92055
920551112
ref: 92055
RING-/,FUEL TAP PACKI
920551112
€ 3.00
92055A
920551419
ref: 92055A
RING-O,TAP LEVER
920551419
€ 3.00
92075
920751853
ref: 92075
DAMPER
920751853
€ 8.50
120
120S0512
ref: 120
BOLT-SOCKET
120S0512
€ 1.00
130
130J0625
ref: 130
BOLT-FLANGED,6X25
130J0625
€ 2.00
130A
130J0630
ref: 130A
BOLT FLANGED,6X30,BLC
130J0630
€ 2.50
220
220B0308
ref: 220
SCREW-PAN-CROS
220B0308
€ 0.50
220A
220C0425
ref: 220A
SCREW-PAN-CROS,4X25,B
220C0425
€ 1.50
220B
220C0508
ref: 220B
SCREW-PAN-CROS
220C0508
€ 1.00
702
702A07550
ref: 702
TUBE, RUBBER,7X10X100
€ 9.50
92075A
92075209
ref: 92075A
DAMPER RUBBER
92075209
€ 3.00
92077
920771098
ref: 92077
KNOB,FUEL TAP
920771098
€ 12.50
92160
921601197
ref: 92160
DAMPER
921601197
€ 4.50
92190
921901045
ref: 92190
TUBE,FUEL
€ 6.50
92190A
921901208
ref: 92190A
TUBE,FUEL
921901208
€ 6.00
