OIL PAN

ZX400L2 ZXR400 1992 EUROPE UK FR AR FG GR IT NR SD

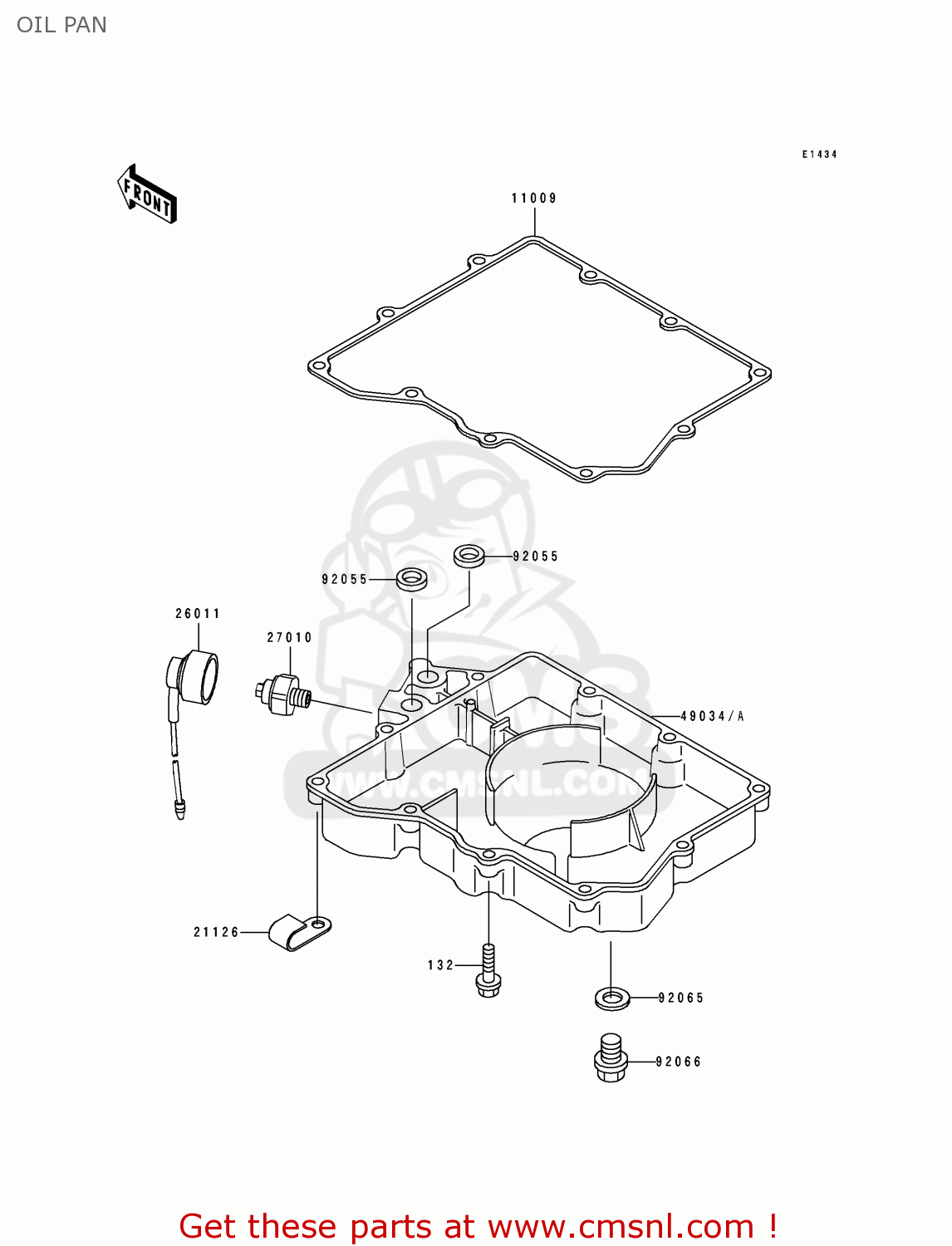

Oil pan diagram ZX400L2 ZXR400 1992 EUROPE UK FR AR FG GR IT NR SD

prices are in EUR

ref

part #

description

quantity

132

132E0625
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

11009

110091916
ref: 11009

GASKET,OIL PAN (NAS)

€ 18.50

21126

21126008
ref: 21126

CLAMP,WIRING HARNESS

€ 3.00

26011

260111422
ref: 26011

WIRE-LEAD

€ 6.50

27010

270101313
ref: 27010

SWITCH,OIL PRESSURE

€ 28.00

49034

490341098
ref: 49034

PAN-OIL

€ 132.00

92055

92055077
ref: 92055

O RING

€ 4.00

92065

92065097
ref: 92065

GASKET,DRAIN PLUG BOL (NAS)

€ 1.00

92066

920661174
ref: 92066

PLUG,OIL DRAIN,12X15

€ 4.00
