REAR HUB
ZX400C2 1985 EUROPE UK FR GR SD SP

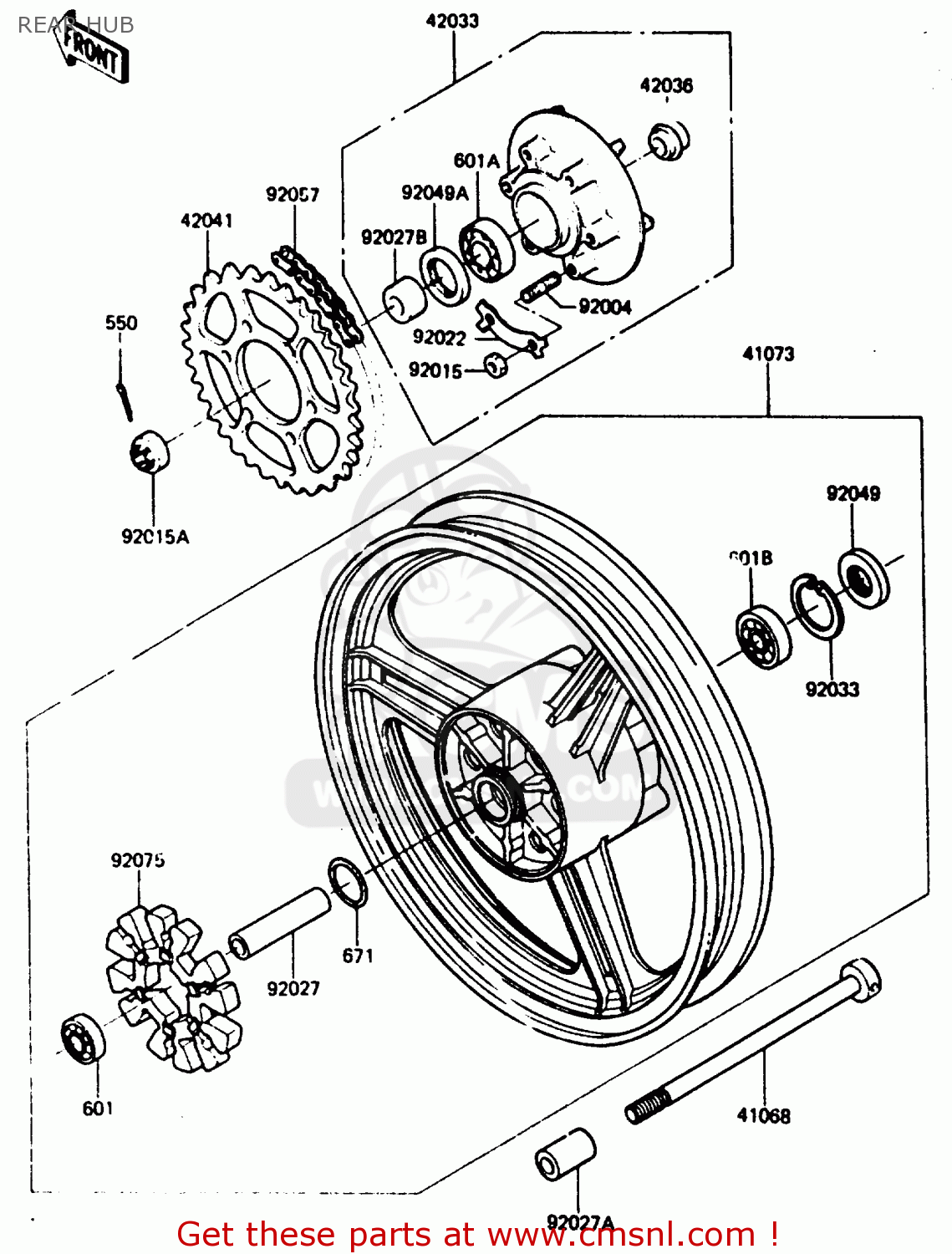

Rear hub diagram ZX400C2 1985 EUROPE UK FR GR SD SP
REAR HUB ZX400C2 1985 EUROPE UK FR GR SD SP
×
prices are in EUR
ref
part #
description
quantity
41068
410681086
ref: 41068
AXLE,RR
€ 49.00
41073
410731207J9
ref: 41073
WHEEL-ASSY,RR,M.GRAY
€ 619.00
42033
420331053
ref: 42033
COUPLING-ASSY
€ 164.00
42036
420361055
ref: 42036
SLEEVE,L=25
€ 19.00
42041
420411130
ref: 42041
SPROCKET-HUB,42T
€ 39.00
92004
920041062
ref: 92004
STUD,10X18
€ 5.00
92015
42045005
ref: 92015
NUT,10MM
€ 5.00
92015A
92015055
ref: 92015A
NUT,16MM
€ 8.00
92022
920221212
ref: 92022
WASHER,LOCK
€ 4.00
92027
920271543
ref: 92027
COLLAR,L=23.5
€ 25.00
92027A
920271569
ref: 92027A
COLLAR,17X28X32
€ 12.00
92027B
920271661
ref: 92027B
COLLAR,L=21
€ 19.50
92033
920331042
ref: 92033
CIRCLIP,47M/M
€ 4.00
92049
920491056
ref: 92049
OIL SEAL,BJN28475
€ 8.50
92049A
92052006
ref: 92049A
OIL SEAL WTC35527
€ 6.50
92057
920571128
ref: 92057
CHAIN,DRIVE EK520 HVD
€ 107.50
92075
920751436
ref: 92075
DAMPER,RR HUB SHOCK
€ 65.00
550
550D4035
ref: 550
PIN-COTTER,4.0X35
€ 1.00
601
601B6203ZZ
ref: 601
BEARING-BALL,#6203ZZC
€ 16.50
601A
601B6205
ref: 601A
BEARING-BALL,#6205C3
€ 14.00
601B
601B6303ZZ
ref: 601B
BEARING-BALL,#6303ZZC
€ 32.50
671
671B2550
ref: 671
O RING,50MM
€ 1.50
