CARBURETOR
ZX400C2 1985 EUROPE UK FR GR SD SP

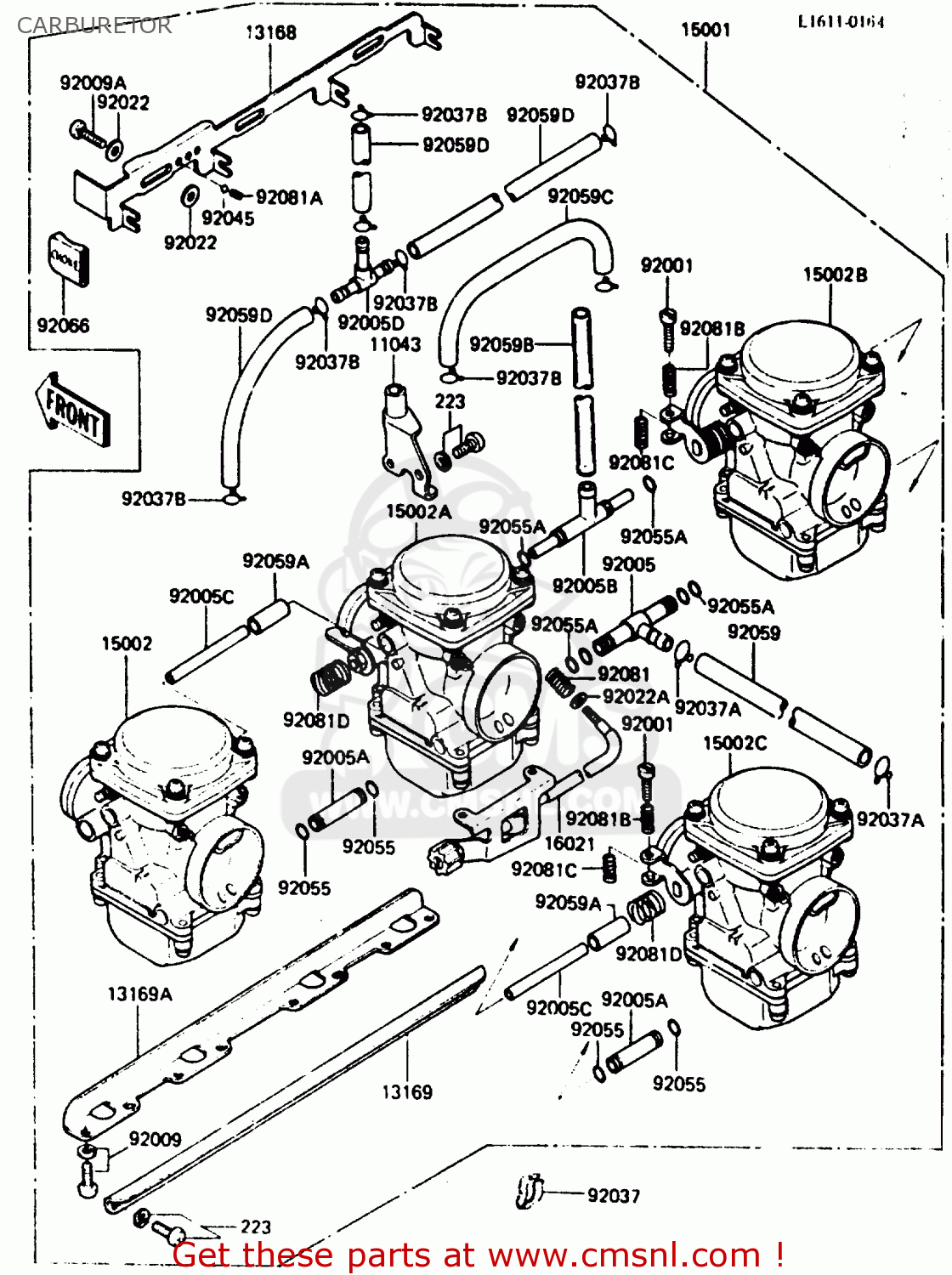

Carburetor diagram ZX400C2 1985 EUROPE UK FR GR SD SP
CARBURETOR ZX400C2 1985 EUROPE UK FR GR SD SP
×
prices are in EUR
ref
part #
description
quantity
11043
110431336
ref: 11043
BRACKET-B,THROTTLE CA
€ 18.00
13168
131681243
ref: 13168
LEVER,STARTER PLUNGER
€ 82.50
13169
131691737
ref: 13169
PLATE,CARBURETOR HOLD
€ 54.00
13169A
131691738
ref: 13169A
PLATE,CARBURETOR HOLD
€ 54.00
15001
150011093
ref: 15001
CARBURETOR-ASSY
€ 1,389.00
15002
150021086
ref: 15002
CARBURETOR,LH,OUTSIDE
€ 441.00
15002A
150021087
ref: 15002A
CARBURETOR,LH,INSIDE
€ 349.50
15002B
150021088
ref: 15002B
CARBURETOR,RH,INSIDE
€ 441.00
15002C
150021089
ref: 15002C
CARBURETOR,RH,OUTSIDE
€ 349.50
16021
160211101
ref: 16021
SCREW-THROTTLE STOP
€ 83.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92005
920051108
ref: 92005
FITTING,FUEL,T-TYPE
€ 16.50
92005A
920051109
ref: 92005A
FITTING,FUEL,I-TYPE
€ 25.00
92005B
920051110
ref: 92005B
FITTING,FUEL,T-TYPE
€ 16.00
92005C
920051111
ref: 92005C
FITTING,FUEL,I-TYPE
€ 8.50
92005D
920051112
ref: 92005D
FITTING,FUEL,T-TYPE
€ 10.00
92009
920091129
ref: 92009
SCREW,6X16
€ 3.00
92009A
920091262
ref: 92009A
SCREW
€ 4.00
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
€ 3.00
92037
92037093
ref: 92037
CLAMP
€ 7.50
92037A
920371075
ref: 92037A
CLAMP,FUEL INLET TUBE
€ 2.50
92037B
920371470
ref: 92037B
CLAMP,TUBE
€ 3.00
92045
920451104
ref: 92045
BALL,BRASS,SHAFT STOP
€ 2.00
92055
920551004
ref: 92055
O RING
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
€ 3.50
92059
920591236
ref: 92059
TUBE,FUEL
€ 25.00
92059A
920591375
ref: 92059A
TUBE
€ 16.50
92059B
920591376
ref: 92059B
TUBE,6.5X9.5X290
€ 20.50
92059C
920591377
ref: 92059C
TUBE,5X9X180
€ 16.50
92059D
920591378
ref: 92059D
TUBE,5X9X150
€ 16.50
92066
920661157
ref: 92066
PLUG,STARTER LEVER
€ 10.50
92081
920811617
ref: 92081
SPRING,THROTTLE STOP
€ 3.50
92081A
920811619
ref: 92081A
SPRING,SHAFT STOP
€ 4.50
92081B
920811620
ref: 92081B
SPRING,THROTTLE ADJUS
€ 3.00
92081C
920811621
ref: 92081C
SPRING,THROTTLE ADJUS
€ 3.00
92081D
920811622
ref: 92081D
SPRING,THROTTLE ADJUS
€ 6.50
223
223C0512
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
