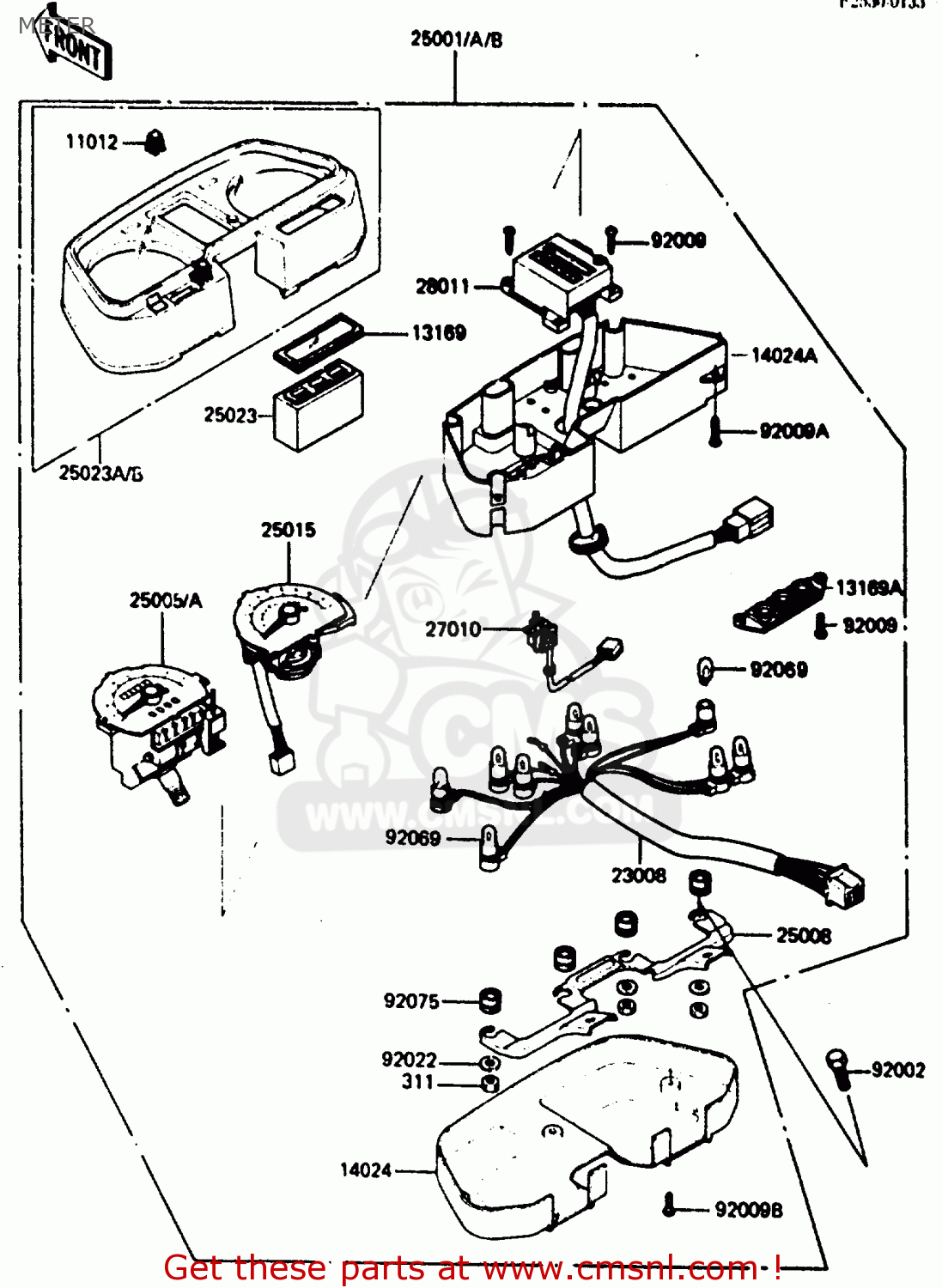

METER

ref

part #

description

quantity

11012

110121291
ref: 11012
EU, FR, GR, UK

CAP,TRIP RESET,SQUARE

€ 11.00

13169

131691308
ref: 13169

PLATE,AIR FILTER

€ 11.50

13169A

131691556
ref: 13169A

PLATE,BULB SOCKET

€ 7.50

14024

140251473
ref: 14024

COVER,METER,LWR

€ 24.50

16024A

140251951
ref: 16024A

COVER,METER UNIT

€ 48.50

23008

230081160
ref: 23008

SOCKET-ASSY,METER

€ 79.50

25001

250011590
ref: 25001
EU, FR, GR

METER-ASSY,KPH

€ 1,710.00

25001A

250011591
ref: 25001A
UK

METER-ASSY,MPH

€ 1,758.00

25001B

250011617
ref: 25001B
SD

METER-ASSY,KPH

€ 1,758.00

25005

250051191
ref: 25005
EU, FR, GR, SP

SPEEDOMETER,KPH

€ 123.00

25005A

250051192
ref: 25005A
UK

SPEEDOMETER,MPH

€ 149.50

25008

250081057
ref: 25008

BRACKET-METER

€ 36.00

25015

250151223
ref: 25015

TACHOMETER,(X1000RPM)

€ 161.00

25023

250231041
ref: 25023

COVER-METER CASE

€ 19.50

25023A

250231124
ref: 25023A
EU, FR, GR, UK

COVER-METER CASE,UPP

€ 90.00

25023B

250231129
ref: 25023B
SD

COVER-METER CASE,UPP

€ 48.00

27010

270101062
ref: 27010

SWITCH,TACHOMETER & V

€ 26.50

28011

280111060
ref: 28011

METER,FUEL & WARNING

€ 600.50

92002

920021133
ref: 92002

BOLT,6X14

€ 0.50

92009

920091140
ref: 92009

SCREW,TAPPING,4X14

€ 2.50

92009A

920091141
ref: 92009A

SCREW,TAPPING,4X20

€ 3.00

92009B

920091142
ref: 92009B

SCREW,TAPPING,4X12

€ 3.00

92022

92022263
ref: 92022

WASHER,PLAIN,6MM

€ 1.50

92069

920691007
ref: 92069

BULB,12V3.4W

€ 2.50

92075

920751385
ref: 92075

DAMPER,METER BRACKET

€ 3.00

311

311B0500
ref: 311

NUT-HEX

€ 0.50

all assemblies
