FRAME FITTING
ZX400C2 1985 EUROPE UK FR GR SD SP

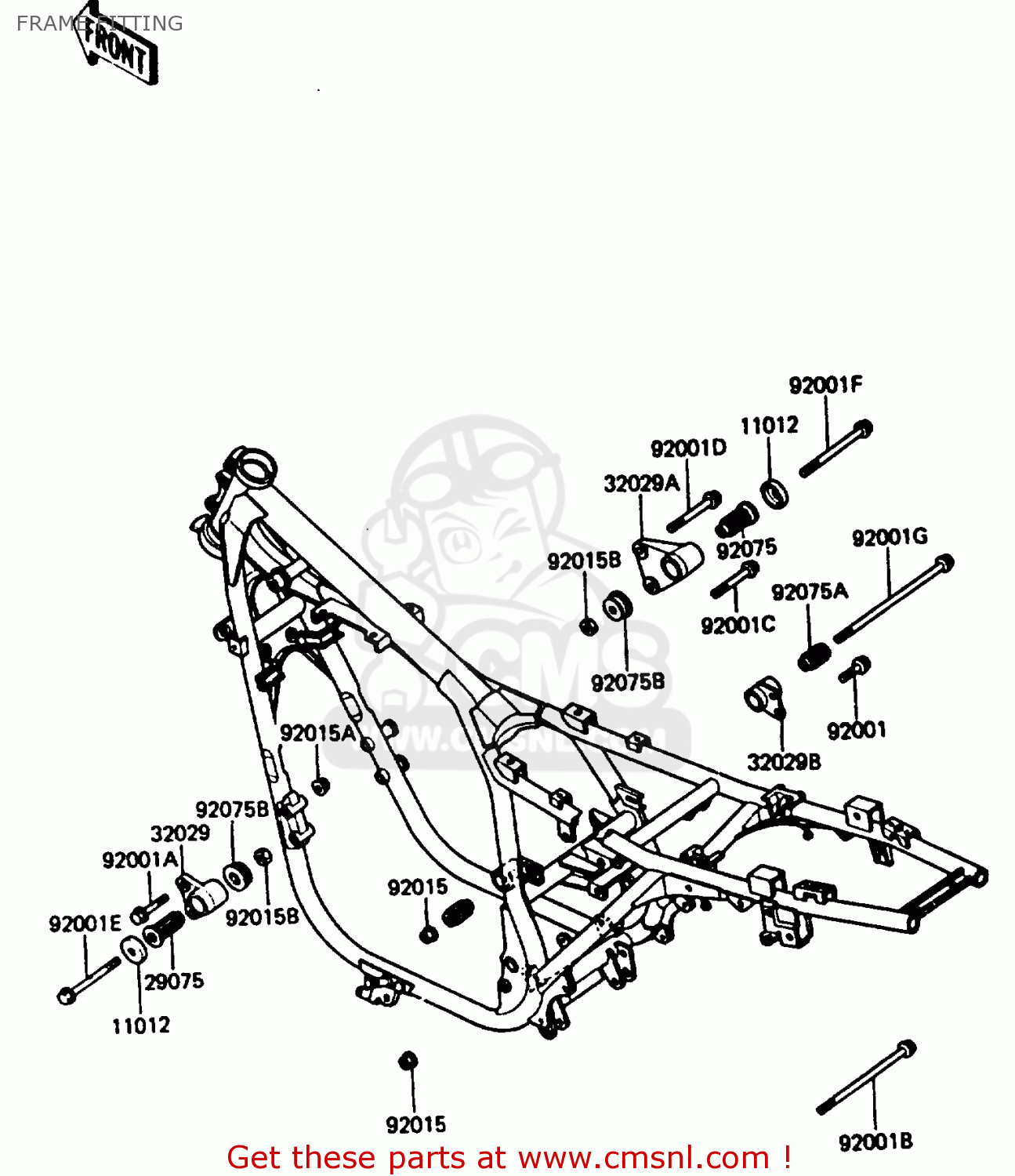

Frame fitting diagram ZX400C2 1985 EUROPE UK FR GR SD SP
FRAME FITTING ZX400C2 1985 EUROPE UK FR GR SD SP
×
prices are in EUR
ref
part #
description
quantity
11012
110121228
ref: 11012
CAP,ENGINE BRACKET
€ 4.50
32029
320291192
ref: 32029
BRACKET-ENGINE,FR,LH
€ 30.00
32029A
320291193
ref: 32029A
BRACKET-ENGINE,FR,RH
€ 28.50
32039B
320291259
ref: 32039B
BRACKET-ENGINE,RR,UPP
€ 15.00
92001
920011308
ref: 92001
BOLT,FLANGED,10X33
€ 2.00
92001A
920011615
ref: 92001A
BOLT,FLANGED,8X60
€ 4.00
92001B
920011621
ref: 92001B
BOLT,FLANGED,10X180
€ 15.00
92001C
920011642
ref: 92001C
BOLT,FLANGED,8X75,BLA
€ 4.50
92001D
920011718
ref: 92001D
BOLT,FLANGED,8X85
€ 6.00
92001E
920011719
ref: 92001E
BOLT,FLANGED,10X110
€ 7.00
92001F
920011720
ref: 92001F
BOLT,FLANGED,10X125
€ 7.50
92001G
920011812
ref: 92001G
BOLT,FLANGED,10X240
€ 13.00
92015
920151180
ref: 92015
NUT,FLANGED,10MM,BLAC
€ 2.50
92015A
920151183
ref: 92015A
NUT,FLANGED,8MM,BLACK
€ 1.00
92015B
920151168
ref: 92015B
NUT,CAP,8MM
€ 3.00
92075
920751377
ref: 92075
DAMPER,ENGINE BRACKET
€ 19.50
92075A
920751379
ref: 92075A
DAMPER,11X29X42X7
€ 16.00
92075B
920751462
ref: 92075B
DAMPER,ENGINE BRACKET
€ 11.00
