HANDLEBAR
ZX400C2 1985 EUROPE UK FR GR SD SP

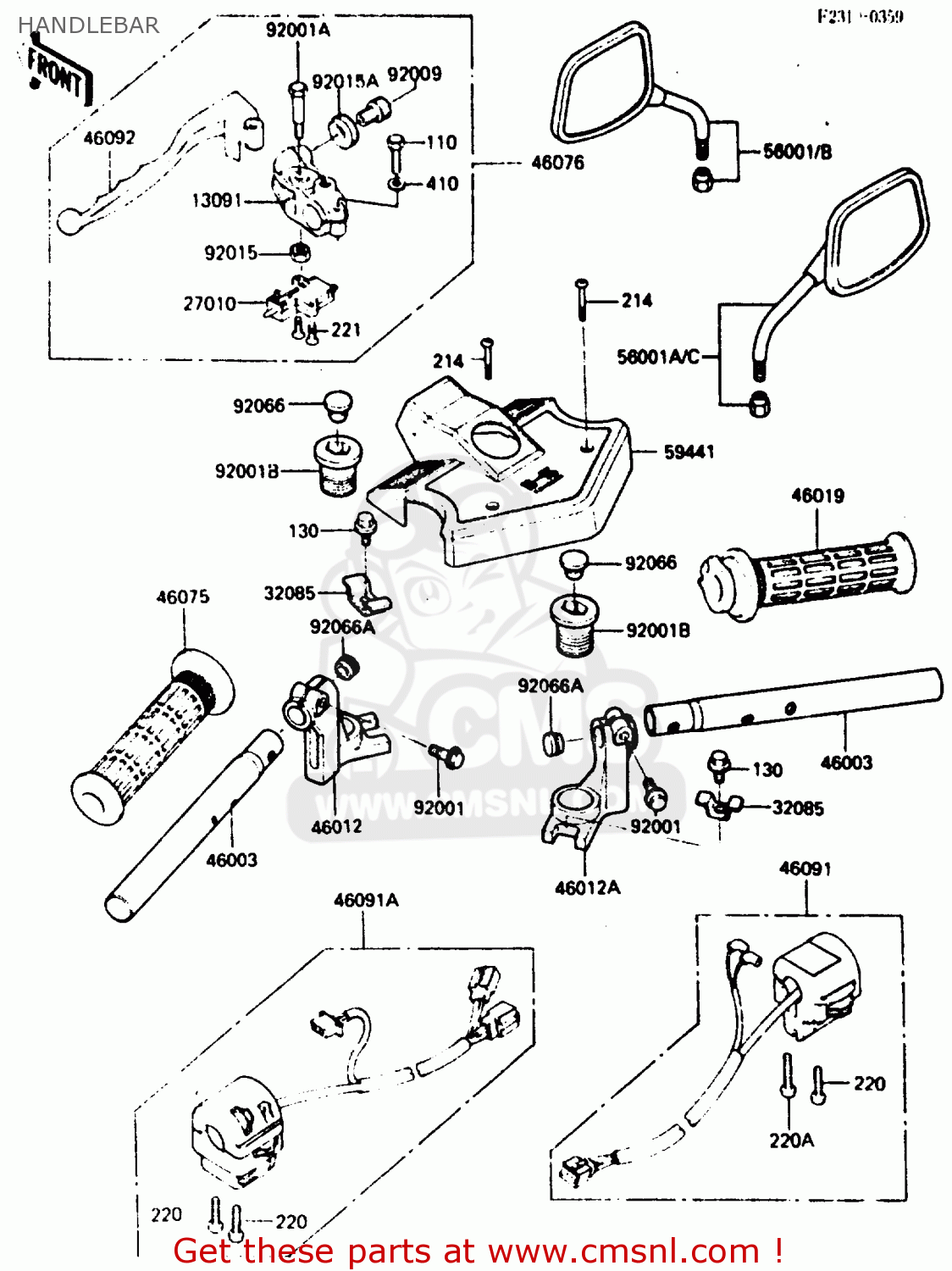

Handlebar diagram ZX400C2 1985 EUROPE UK FR GR SD SP
HANDLEBAR ZX400C2 1985 EUROPE UK FR GR SD SP
×
prices are in EUR
ref
part #
description
quantity
12091
130911272
ref: 12091
HOLDER,CLUTCH LEVER
€ 33.00
27010
270101094
ref: 27010
SWITCH,CLUTCH
€ 20.50
32085
320851156
ref: 32085
STOPPER,HANDLE HOLDER
€ 9.50
46003
460031157
ref: 46003
HANDLE
€ 17.00
46012
460121103
ref: 46012
HOLDER-HANDLE,LH
€ 96.50
46012A
460121104
ref: 46012A
HOLDER-HANDLE,RH
€ 93.00
46019
460191015
ref: 46019
GRIP-ASSY,THROTTLE
€ 28.50
46075
460751022
ref: 46075
GRIP,LH
€ 8.50
46076
460761105
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 61.00
46091
460911209
ref: 46091
HOUSING-ASSY-CONTROL,
€ 121.00
46091A
460911422
ref: 46091A
HOUSING-ASSY-CONTROL,
€ 134.00
46092
460921103
ref: 46092
LEVER-GRIP,CLUTCH
€ 14.00
56001
560011105
ref: 56001
FR, UK
MIRROR-ASSY,LH
€ 61.50
56001A
560011106
ref: 56001A
FR, UK
MIRROR-ASSY,RH
€ 61.50
56001B
560011108
ref: 56001B
EU, GR, SD
MIRROR-ASSY,LH
€ 61.50
56001C
560011109
ref: 56001C
EU, GR, SD
MIRROR-ASSY,RH
€ 61.50
59441
594411054
ref: 59441
COVER-HANDLE
€ 13.00
92001
920011508
ref: 92001
BOLT,FLANGED,8X28,BLA
€ 3.00
92001A
920011548
ref: 92001A
BOLT,CLUTCH LEVER,BLA
€ 5.50
92001B
920011912
ref: 92001B
BOLT,HANDLE HOLDER,BL
€ 29.50
92009
920091134
ref: 92009
SCREW,CBL ADJUST,8MM
€ 10.50
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
€ 2.00
92015A
920151197
ref: 92015A
NUT,CABLE ADJUST LOCK
€ 6.50
92066
920661018
ref: 92066
PLUG,END,17.5MM
€ 2.50
92066A
920661093
ref: 92066A
PLUG
€ 3.50
110
110C0622
ref: 110
BOLT,6X22,BLACK
€ 3.00
130
130J0616
ref: 130
BOLT-FLANGED,6X16
€ 1.50
214
214C0430
ref: 214
SCREW-PAN+-
€ 0.50
220
220B0535
ref: 220
SCREW-PAN-CROS
€ 2.00
220A
220B0540
ref: 220A
SCREW-PAN-CROS
€ 2.00
221
221C0316
ref: 221
SCREW-CSK-CROS
€ 2.50
410
410F0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
