FRONT MASTER CYLINDER

ZX400C2 1985 EUROPE UK FR GR SD SP

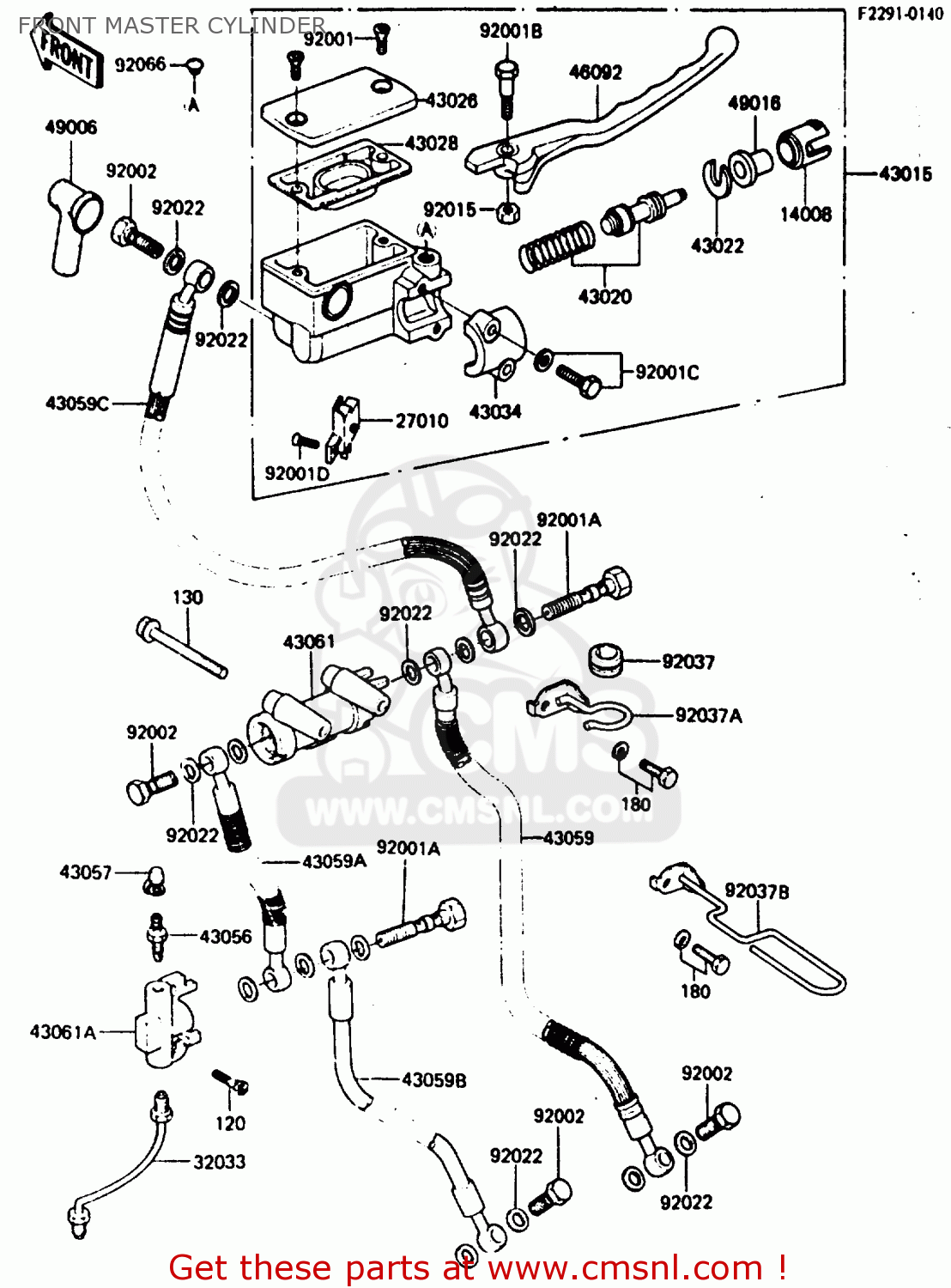

Front master cylinder diagram ZX400C2 1985 EUROPE UK FR GR SD SP

FRONT MASTER CYLINDER ZX400C2 1985 EUROPE UK FR GR SD SP
FRONT MASTER CYLINDER ZX400C2 1985 EUROPE UK FR GR SD SP
FRONT MASTER CYLINDER ZX400C2 1985 EUROPE UK FR GR SD SP
prices are in EUR
ref
part #
description
quantity
14008
140081035
ref: 14008
LINER,PISTON
140081035
€ 8.00
27010
270101056
ref: 27010
SWITCH,BRAKE
270101056
€ 24.50
32033
320331080
ref: 32033
PIPE,FR,LH
320331080
€ 16.00
43015
430151146
ref: 43015
CYLINDER-ASSY-MASTER,
430151146
€ 267.50
43020
430201032
ref: 43020
PISTON-COMP-BRAKE,FR
430201032
€ 36.50
43022
430221009
ref: 43022
STOPPER-BRAKE,PISTON
430221009
€ 3.50
43026
430261018
ref: 43026
CAP-BRAKE,FR
€ 26.50
43028
430281029
ref: 43028
DIAPHRAGM,MASTER CYLI
430281029
€ 17.50
43034
430341013
ref: 43034
HOLDER-BRAKE,MASTER C
430341013
€ 20.00
43056
430561051
ref: 43056
BREATHER-BRAKE
430561051
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
430571001
€ 3.00
43059
430591168
ref: 43059
HOSE-BRAKE,FR,RH,L=52
430591168
€ 69.50
43059A
430591170
ref: 43059A
HOSE-BRAKE,FR,LH,UPP,
430591170
€ 33.50
43059B
430591251
ref: 43059B
HOSE-BRAKE,FR,LH,LWR,
430591251
€ 46.50
43059C
430591257
ref: 43059C
HOSE-BRAKE,FR,L=305
430591257
€ 38.00
43061
430611004
ref: 43061
JOINT-BRAKE
430611004
€ 51.50
43061A
430611006
ref: 43061A
JOINT-BRAKE,FR,LH
430611006
€ 38.00
46092
460921026
ref: 46092
LEVER-GRIP,FRONT BRAK
460921026
€ 15.00
49006
490061067
ref: 49006
BOOT,DUST
490061067
€ 6.50
49016
490161041
ref: 49016
COVER-SEAL,BRAKE PIST
490161041
€ 8.50
92001
920011055
ref: 92001
SCREW,COUNTERSUNK HED
920011055
€ 3.50
92001A
920011203
ref: 92001A
BOLT,OIL
920011203
€ 8.50
92001B
920011512
ref: 92001B
BOLT,6X37.3,BLACK
920011512
€ 5.50
92001C
920011513
ref: 92001C
BOLT,BOLT,6X25,W/WASH
€ 3.00
92001D
920011532
ref: 92001D
SCREW-COUNTERSUNK
920011532
€ 2.50
92002
920021888
ref: 92002
BOLT,OIL,L=23
920021888
€ 3.50
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
920151191
€ 2.00
92022
43067001
ref: 92022
WASHER,10.5X15X1.5
43067001
€ 1.50
92037
43064006
ref: 92037
GROMMET,BRAKE HOSE
43064006
€ 2.50
92037A
920371217
ref: 92037A
CLAMP,BRAKE HOSE,RH
920371217
€ 13.00
92037B
920371393
ref: 92037B
CLAMP,BRAKE HOSE,LH,B
920371393
€ 10.00
92066
920661077
ref: 92066
CAP,REAR VIEW MIRROR
920661077
€ 3.00
120
120S0614
ref: 120
BOLT-SOCKET,6X14,BLAC
120S0614
€ 2.50
130
130G0660
ref: 130
BOLT-FLANGED,6X60
130G0660
€ 3.00
180
180C0612
ref: 180
BOLT-UPSET-WS
180C0612
€ 2.50
