TAILLIGHT(S)

ZX1100E4 GPZ1100 1998 EUROPE UK FR NL AR FG GR NR SP

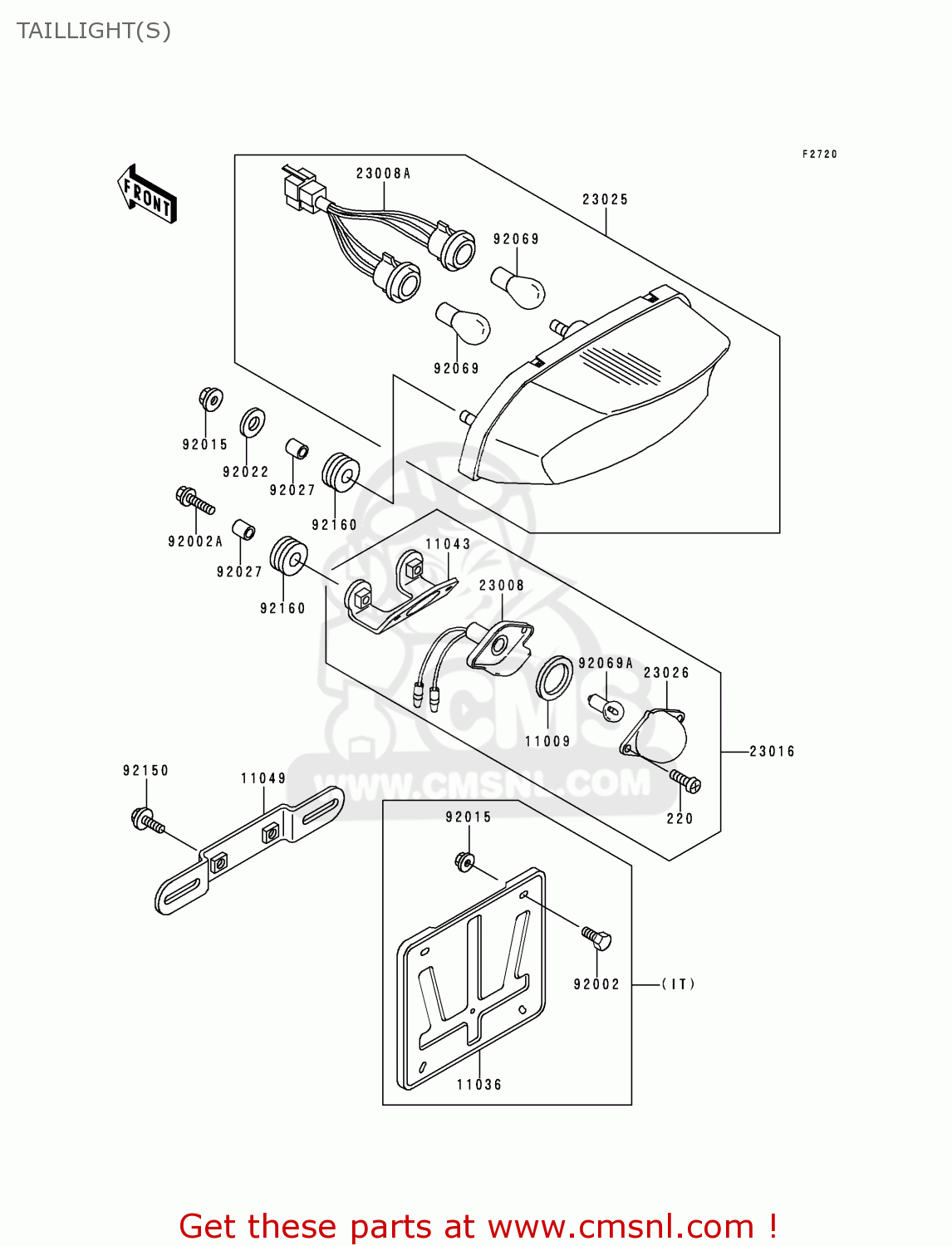

Taillight(s) diagram ZX1100E4 GPZ1100 1998 EUROPE UK FR NL AR FG GR NR SP

prices are in EUR

ref

part #

description

quantity

220

220B0410
ref: 220

SCREW-PAN-CROS

€ 2.00

11009

110091372
ref: 11009

GASKET,LICENSE PLATE (NAS)

€ 3.00

11043

110431497
ref: 11043

BRACKET,LICENSE PLATE

€ 10.00

11049

110491194
ref: 11049

BRACKET,LICENSE

€ 12.00

23008

230081221
ref: 23008

SOCKET-ASSY,LICENSE P

€ 7.50

23008A

230081413
ref: 23008A

SOCKET-ASSY,TAIL LAMP

€ 29.50

23016

230161054
ref: 23016

LAMP-ASSY,LICENSE PLA

€ 54.50

23025

230251245
ref: 23025

LAMP-TAIL

€ 186.50

23026

230261054
ref: 23026

LENS,LICENSE PLATE LA

€ 7.00

92002A

920021135
ref: 92002A

BOLT,6X25

€ 2.50

92015

920151367
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92022

920221557
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

92027162
ref: 92027

COLLAR-REAR FENDER

€ 4.50

92069

92069063
ref: 92069

BULB 12V 21/5W

€ 4.50

92069A

920691055
ref: 92069A

BULB,12V 5W

€ 4.00

92150

921501909
ref: 92150

BOLT

€ 3.00

92160

921601162
ref: 92160

DAMPER

€ 3.00
