MUFFLER(S)

ZX1100E4 GPZ1100 1998 EUROPE UK FR NL AR FG GR NR SP

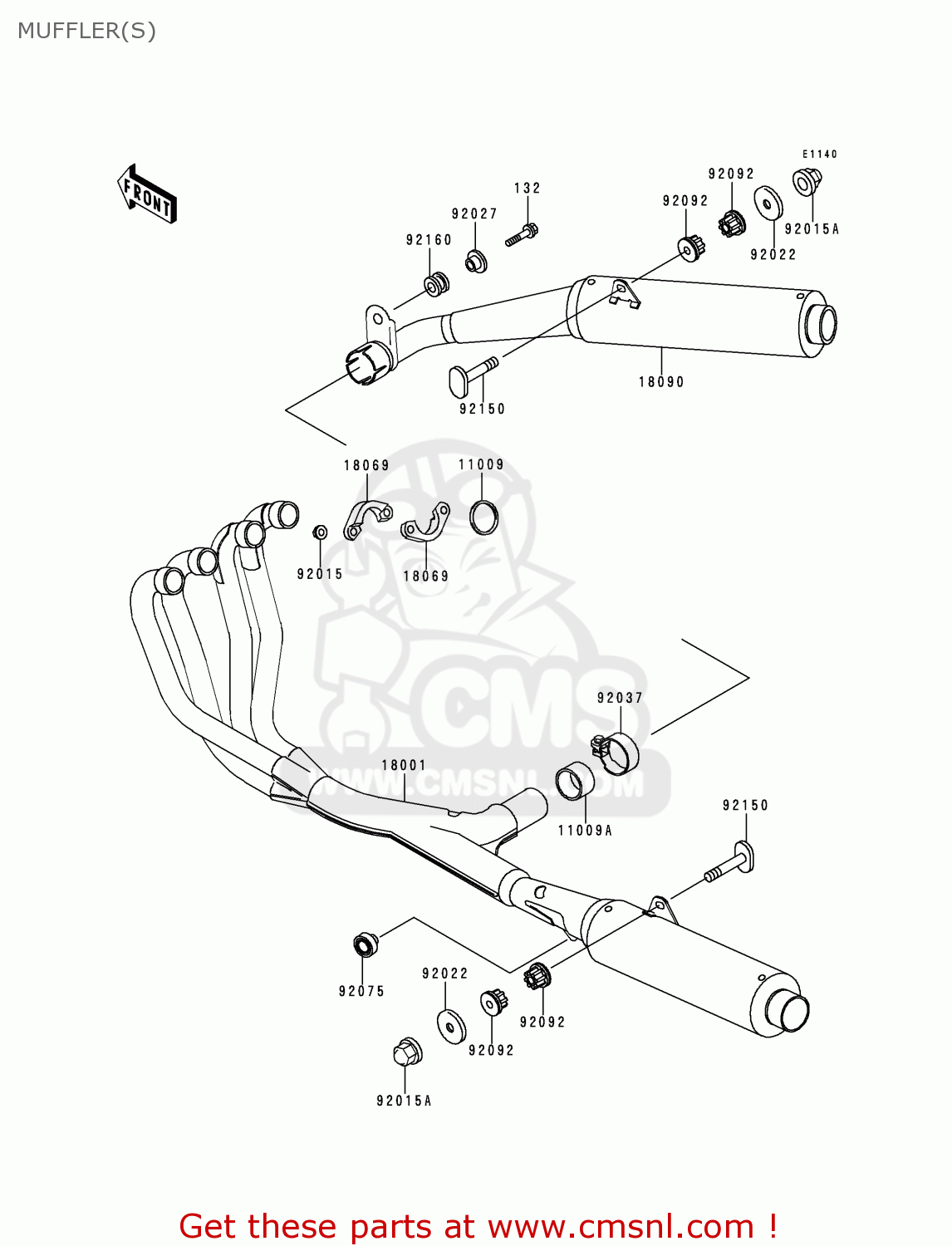

Muffler(s) diagram ZX1100E4 GPZ1100 1998 EUROPE UK FR NL AR FG GR NR SP

prices are in EUR

ref

part #

description

quantity

132

132G0835
ref: 132

BOLT-FLANGED-SMALL

€ 2.00

11009

110091840
ref: 11009

GASKET,EXHAUST PIPE H (NAS)

€ 7.00

11009A

110091888
ref: 11009A

GASKET,MUFFLER CONNEC (NAS)

€ 27.00

18001

180011907
ref: 18001

MUFFLER,LH

€ 1,046.50

18069

180691122
ref: 18069

HOLDER-EXHAUST PIPE

€ 16.50

18090

180901445
ref: 18090

BODY-COMP-MUFFLER,RH

€ 467.50

92015

920151380
ref: 92015

NUT,LOCK,8MM

€ 3.00

92015A

920151649
ref: 92015A

NUT,10MM

€ 3.50

92022

92022289
ref: 92022

WASHER,PLAIN

€ 11.50

92027

920271134
ref: 92027

COLLAR,FUEL TANK FITT

€ 7.00

92037

920371537
ref: 92037

CLAMP,POWER CHAMBER

€ 14.50

92075

92075015
ref: 92075

DAMPER RUBB-MAIN STND

€ 3.00

92092

920921013
ref: 92092

BUSHING-RUBBER,MUFFLE

€ 11.50

92150

921501792
ref: 92150

BOLT,10X55

€ 5.50

92160

921601007
ref: 92160

DAMPER

€ 3.50
