AIR CLEANER

ZX1100E4 GPZ1100 1998 EUROPE UK FR NL AR FG GR NR SP

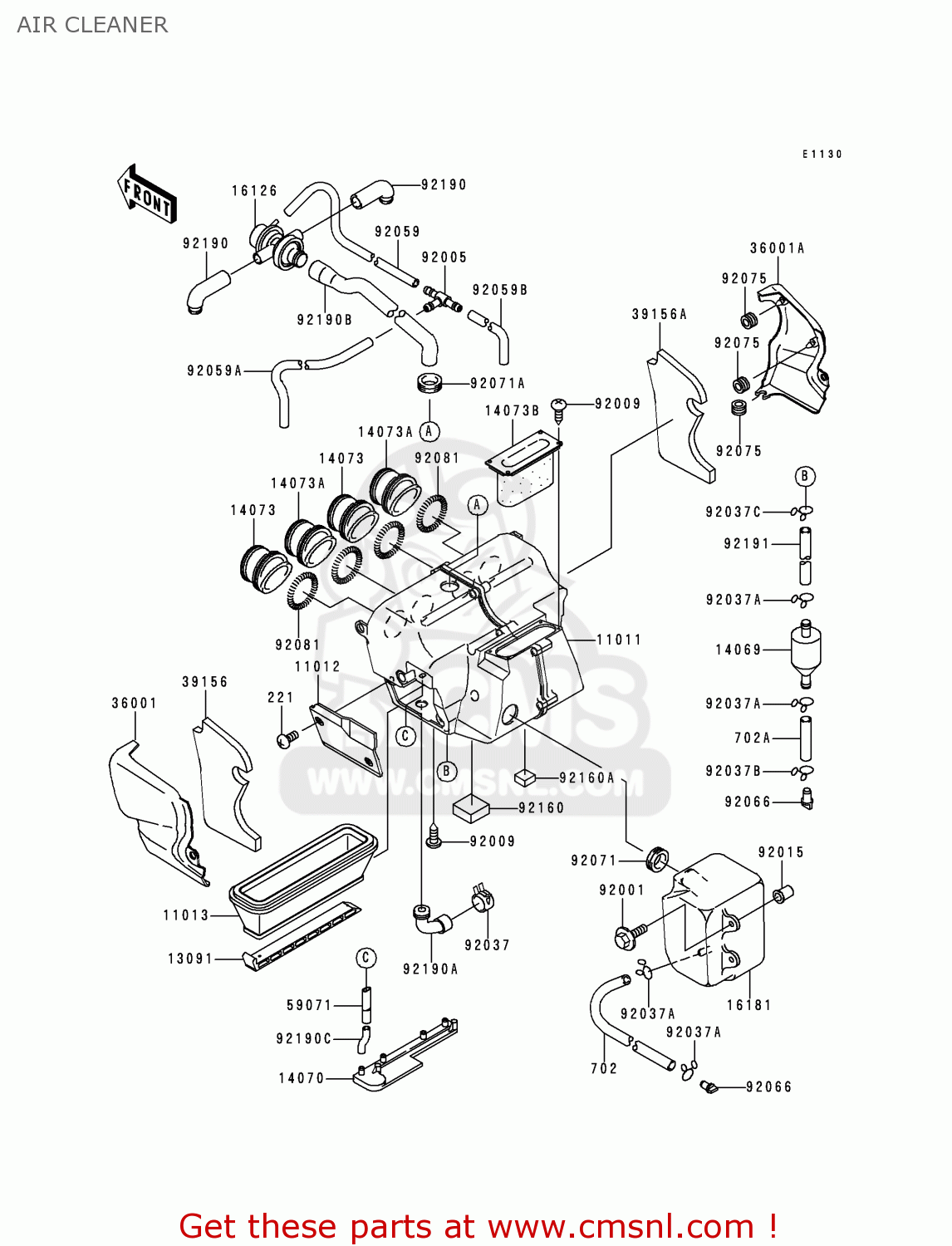

Air cleaner diagram ZX1100E4 GPZ1100 1998 EUROPE UK FR NL AR FG GR NR SP

AIR CLEANER ZX1100E4 GPZ1100 1998 EUROPE UK FR NL AR FG GR NR SP
AIR CLEANER ZX1100E4 GPZ1100 1998 EUROPE UK FR NL AR FG GR NR SP
AIR CLEANER ZX1100E4 GPZ1100 1998 EUROPE UK FR NL AR FG GR NR SP
prices are in EUR
ref
part #
description
quantity
221
221C0616
ref: 221
SCREW-CSK-CROS
221C0616
€ 2.50
11011
110111450
ref: 11011
CASE-AIR FILTER
€ 157.50
11012
110121910
ref: 11012
CAP,AIR FILTER
110121910
€ 32.50
11013
110131242
ref: 11013
ELEMENT-AIR FILTER
110131242
€ 43.00
13091
130911900
ref: 13091
HOLDER,AIR FILTER
€ 3.50
14069
140691051
ref: 14069
BREATHER
140691051
€ 6.50
14070
140701083
ref: 14070
BODY-BREATHER
€ 3.50
14073
140731273
ref: 14073
DUCT,CARBURETOR,#1273
140731273
€ 19.00
14073A
140731274
ref: 14073A
DUCT,CARBURETOR,#1274
140731274
€ 18.00
14073B
140731630
ref: 14073B
DUCT
140731630
€ 17.50
16126
161261144
ref: 16126
VALVE,AIR SWITCH
161261144
€ 135.50
16181
161811076
ref: 16181
TANK-RESONATOR
€ 27.00
36001
360011548
ref: 36001
COVER-SIDE,AIR FILTER
360011548
€ 45.50
36001A
360011549
ref: 36001A
COVER-SIDE,AIR FILTER
€ 45.50
39156
391561485
ref: 39156
PAD
391561485
€ 3.50
39156A
391561486
ref: 39156A
PAD
€ 4.00
59071
590711154
ref: 59071
JOINT
€ 2.00
92001
920011791
ref: 92001
BOLT,6X20,W/WASHER
€ 2.00
92005
920051017
ref: 92005
FITTING,TUBE
920051017
€ 6.50
92009
920091444
ref: 92009
SCREW
920091444
€ 2.00
92015
920151700A
ref: 92015
NUT
920151700A
€ 5.50
92037
920371460
ref: 92037
CLAMP
920371460
€ 7.50
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
92037147
€ 4.50
92037B
920371712
ref: 92037B
CLAMP
920371712
€ 3.00
92037C
920371972
ref: 92037C
CLAMP,TUBE
920371972
€ 2.50
92059
920591040
ref: 92059
TUBE,4X9X220L
€ 7.00
92059A
920591068
ref: 92059A
TUBE,4 X9 X230M/M
€ 12.50
92059B
920591365
ref: 92059B
TUBE,4X9X80
€ 9.50
92066
920661211
ref: 92066
PLUG
920661211
€ 5.50
92071
920711013
ref: 92071
GROMMET,AIR CLEANER
920711013
€ 4.00
92071A
920711028
ref: 92071A
GROMMET AIR FILTER
€ 4.50
92075
920751470
ref: 92075
DAMPER,AIR FILTER
920751470
€ 4.50
92081
920811457
ref: 92081
SPRING,COIL,BLACK
920811457
€ 7.00
92160
921601572
ref: 92160
DAMPER
€ 10.00
92160A
921601664
ref: 92160A
DAMPER
€ 2.50
92190
921901436
ref: 92190
TUBE
921901436
€ 7.50
92190A
921901584
ref: 92190A
TUBE
€ 6.00
92190B
921901585
ref: 92190B
TUBE,AIR SWITCH-AIR F
€ 21.50
92190C
921901605
ref: 92190C
TUBE
€ 1.50
92191
921911006
ref: 92191
TUBE
€ 6.50
702
702A07390
ref: 702
TUBE-RUBBER
€ 8.50
702A
702A0760
ref: 702A
TUBE-RUBBER
€ 2.00
