CYLINDER HEAD COVER

ZX1100E4 GPZ1100 1998 EUROPE UK FR NL AR FG GR NR SP

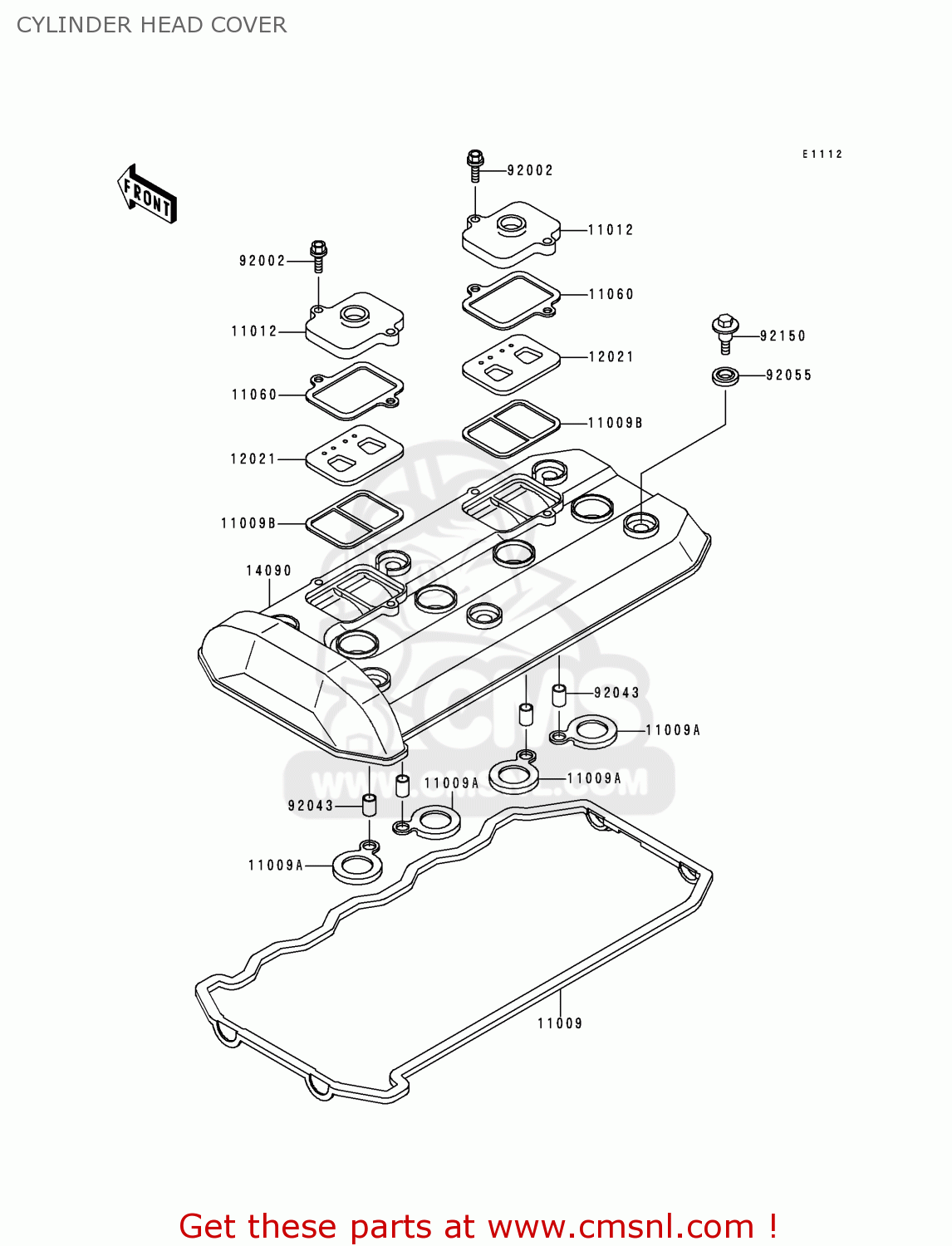

Cylinder head cover diagram ZX1100E4 GPZ1100 1998 EUROPE UK FR NL AR FG GR NR SP

prices are in EUR

ref

part #

description

quantity

11009

110091724
ref: 11009

GASKET,HEAD COVER (NAS)

€ 56.00

11009A

110091725
ref: 11009A

GASKET,SPARK PLUG (NAS)

€ 6.00

11009B

110091857
ref: 11009B

GASKET,REED VALVE (NAS)

€ 6.00

11012

110121532
ref: 11012

CAP,REED VALVE

€ 18.00

11060

110601688
ref: 11060

GASKET,REED VALVE CAP (NAS)

€ 2.50

12021

120211053
ref: 12021

VALVE-ASSY-REED

€ 50.50

14090

140901528
ref: 14090

COVER,HEAD

€ 313.00

92002

920021068
ref: 92002

BOLT,6X22

€ 2.50

92043

920431264
ref: 92043

PIN,DOWEL,8.2X10X14

€ 0.50

92055

920551352
ref: 92055

RING-O,HEAD COVER BOL

€ 7.00

92150

921501447
ref: 92150

BOLT

€ 3.00
