METER(S)

ZX1100E4 GPZ1100 1998 EUROPE UK FR NL AR FG GR NR SP

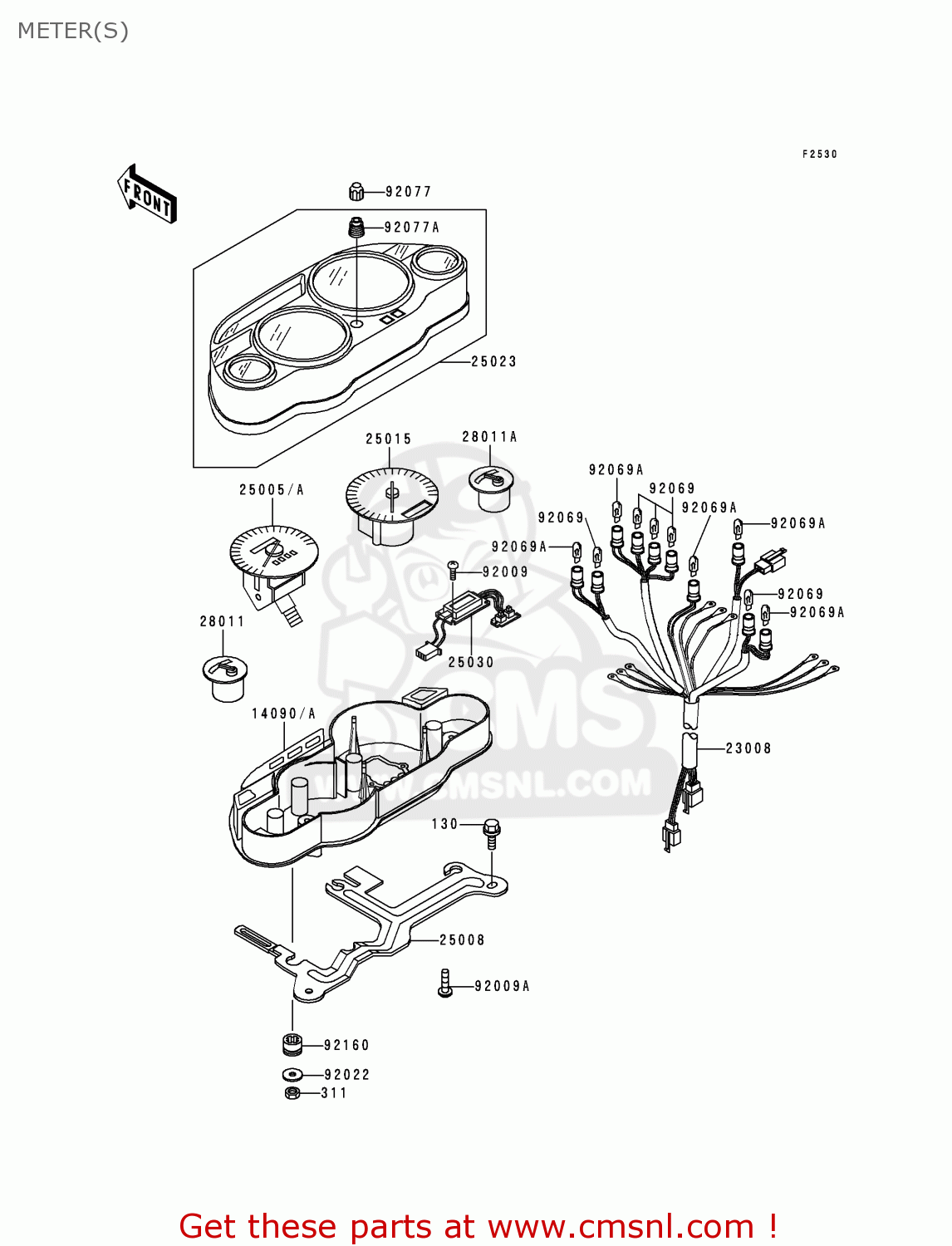

Meter(s) diagram ZX1100E4 GPZ1100 1998 EUROPE UK FR NL AR FG GR NR SP

METER(S) ZX1100E4 GPZ1100 1998 EUROPE UK FR NL AR FG GR NR SP
METER(S) ZX1100E4 GPZ1100 1998 EUROPE UK FR NL AR FG GR NR SP
METER(S) ZX1100E4 GPZ1100 1998 EUROPE UK FR NL AR FG GR NR SP
prices are in EUR
ref
part #
description
quantity
130
130J0614
ref: 130
BOLT-FLANGED,6X14,BLA
130J0614
€ 1.50
311
311B0600
ref: 311
NUT,6MM
311B0600
€ 0.50
14090A
140901554
ref: 14090A
COVER,METER HOUSING
140901554
€ 100.00
23008
230081543
ref: 23008
SOCKET-ASSY,METER
230081543
€ 106.00
25005
250051577
ref: 25005
SPEEDOMETER,KPH
€ 337.50
25008
250081199
ref: 25008
BRACKET-METER
250081199
€ 62.50
25015
250151332
ref: 25015
TACHOMETER,X1000R/MIN
250151332
€ 426.50
25023
250231219
ref: 25023
COVER-METER CASE,UPP
250231219
€ 105.00
25030
250301003
ref: 25030
CLOCK,DIGITAL
€ 348.00
28011
280111145
ref: 28011
METER,FUEL
€ 86.50
28011A
280111146
ref: 28011A
METER,TEMP
€ 95.00
92009
920091255
ref: 92009
SCREW,TAPPING,3X12
920091255
€ 2.50
92009A
920091503
ref: 92009A
SCREW,TAPPING,4X14
920091503
€ 2.50
92022
920221369
ref: 92022
WASHER,6.2X18X1.2
€ 0.50
92069
920691007
ref: 92069
BULB,12V3.4W
920691007
€ 2.50
92069A
920691059
ref: 92069A
BULB,12V 1.7W
920691059
€ 2.50
92077
920771094
ref: 92077
KNOB,TRIP RESET
920771094
€ 5.00
92077A
920771112
ref: 92077A
KNOB,TRIP RESET
920771112
€ 4.00
92160
921601461
ref: 92160
DAMPER
921601461
€ 5.00
