IGNITION SWITCH

ZX1100E4 GPZ1100 1998 EUROPE UK FR NL AR FG GR NR SP

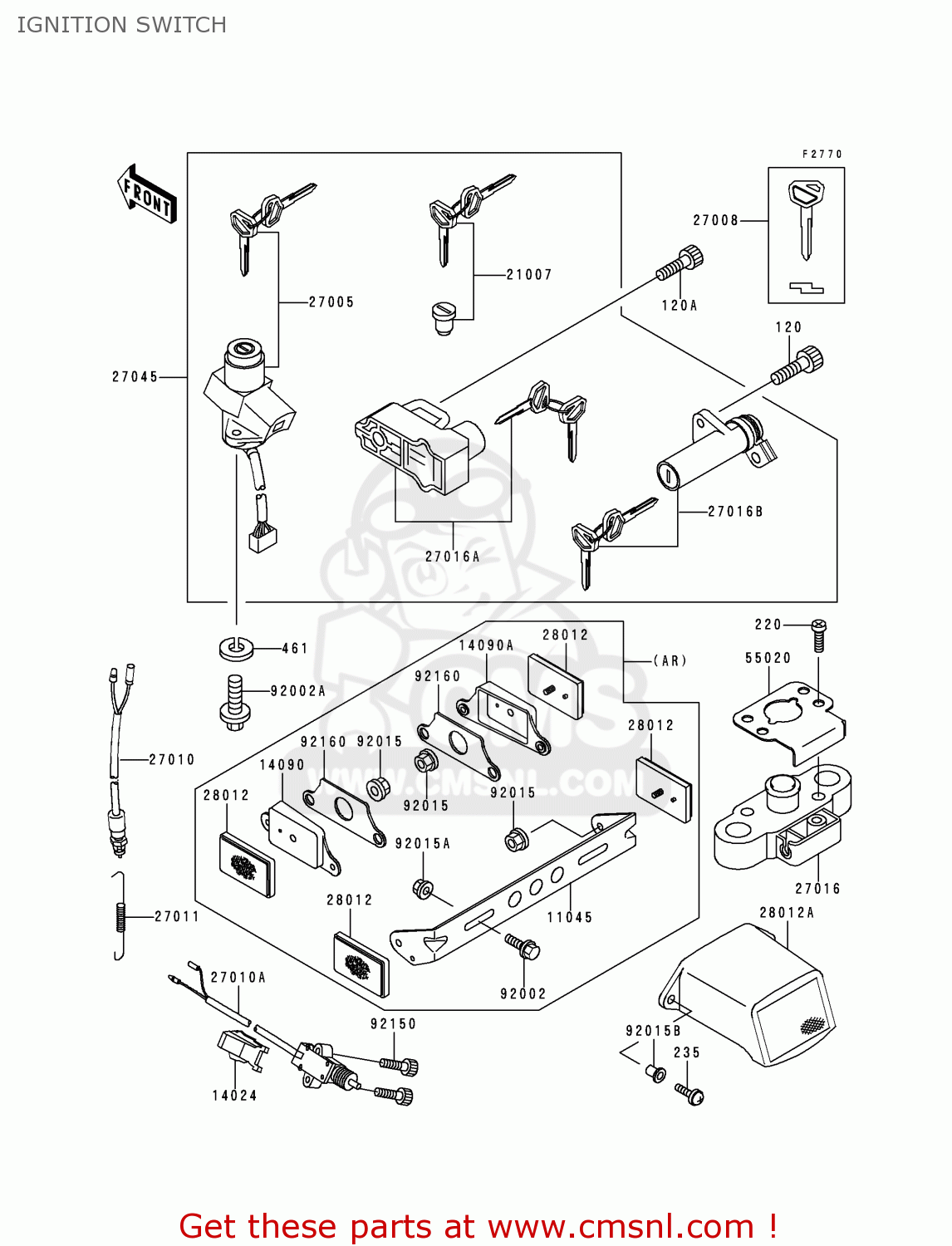

Ignition switch diagram ZX1100E4 GPZ1100 1998 EUROPE UK FR NL AR FG GR NR SP

IGNITION SWITCH ZX1100E4 GPZ1100 1998 EUROPE UK FR NL AR FG GR NR SP
IGNITION SWITCH ZX1100E4 GPZ1100 1998 EUROPE UK FR NL AR FG GR NR SP
IGNITION SWITCH ZX1100E4 GPZ1100 1998 EUROPE UK FR NL AR FG GR NR SP
prices are in EUR
ref
part #
description
quantity
120
120S0512
ref: 120
BOLT-SOCKET
120S0512
€ 1.00
120A
120S0616
ref: 120A
BOLT-SOCKET,6X16
120S0616
€ 1.00
220
220C0630
ref: 220
SCREW-PAN-CROS,6X30,B
220C0630
€ 1.50
235
235C0620
ref: 235
SCREW-PAN-WP-CROS
235C0620
€ 1.50
461
461L0600
ref: 461
WASHER-SPRING
€ 0.50
14024
140241532
ref: 14024
COVER,SIDE STAND SWIT
140241532
€ 5.00
21007
210075037
ref: 21007
ROTOR,LOCK,TANK CAP
210075037
€ 65.50
27005
270055102
ref: 27005
SWITCH-ASSY-IGNITION
270055102
€ 249.50
27008
270081173
ref: 27008
KEY-LOCK,BLANK
270081173
€ 13.00
27010
270101093
ref: 27010
SWITCH,BRAKE LAMP
270101093
€ 20.00
27010A
270101226
ref: 27010A
SWITCH,SIDE STAND
270101226
€ 47.50
27011
27011011
ref: 27011
SPRING,BRAKE LAMP SW
27011011
€ 5.50
27016
270161098
ref: 27016
LOCK-ASSY,SEAT STRIKE
270161098
€ 72.50
27016A
270165203
ref: 27016A
LOCK-ASSY,HELMET
270165203
€ 54.00
27016B
270165205
ref: 27016B
LOCK-ASSY,SEAT
270165205
€ 59.50
27045
270455013
ref: 27045
SWITCH-ASSY
€ 268.00
28012A
280121066
ref: 28012A
REFLECTOR-REFLEX,RR
280121066
€ 23.00
55020
550201498
ref: 55020
GUARD,SEAT STRIKER
€ 13.00
92002A
920021333
ref: 92002A
BOLT
920021333
€ 1.50
92015B
920151700A
ref: 92015B
NUT
920151700A
€ 5.50
92150
921501491
ref: 92150
BOLT
921501491
€ 2.50
