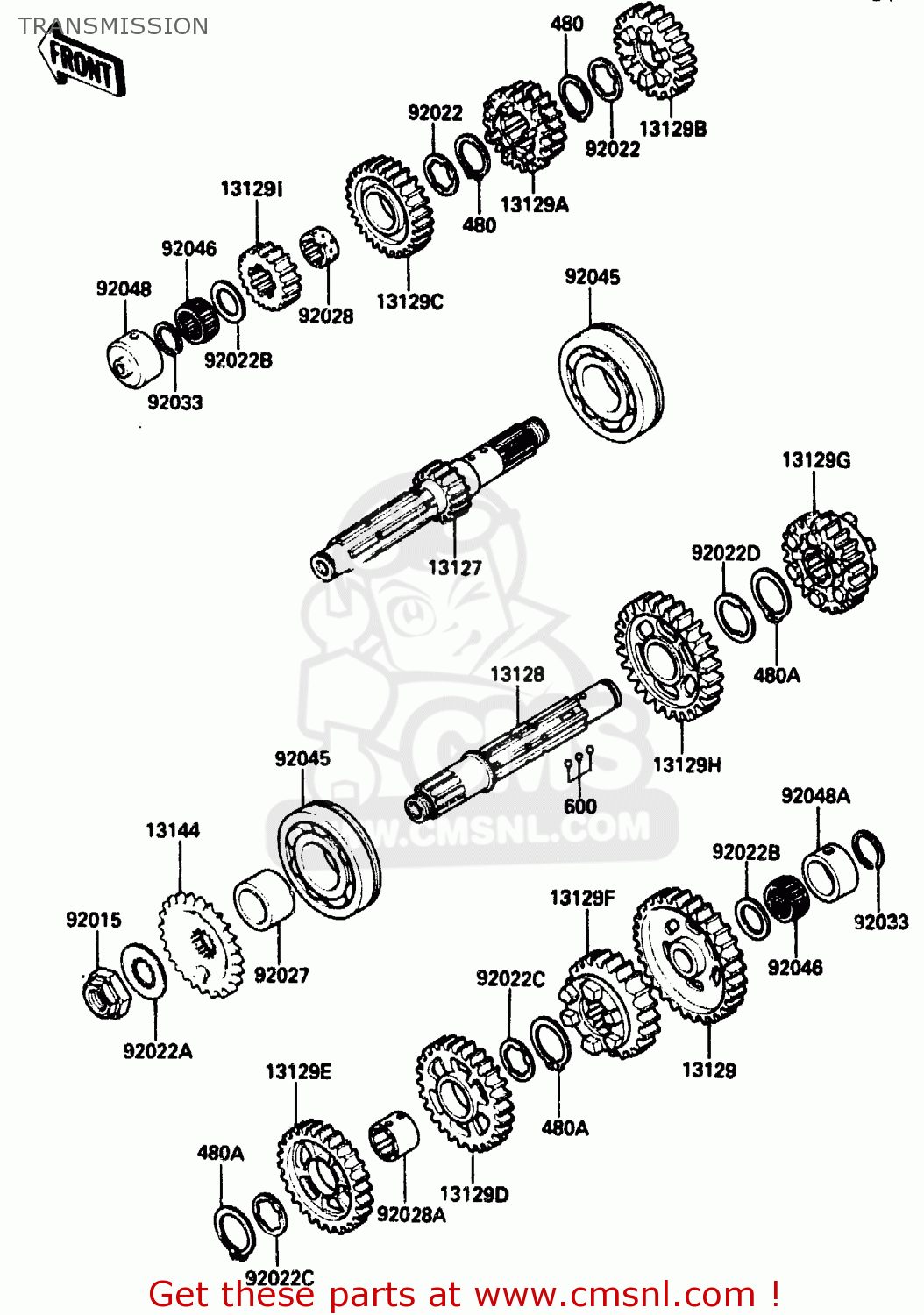

TRANSMISSION

ref

part #

description

quantity

13127

131271146
ref: 13127

SHAFT-TRANSMISSION IN

€ 209.00

13128

131281113
ref: 13128

SHAFT-TRANSMISSION

€ 173.00

13129

131291534
ref: 13129

GEAR,OUTPUT LOW,42T

€ 170.00

13129A

131291664
ref: 13129A

GEAR,INPUT 3RD&4TH,24

€ 173.00

13129B

131291665
ref: 13129B

GEAR,INPUT 5TH,26T

€ 154.50

13129C

131291666
ref: 13129C

GEAR,INPUT TOP,28T

€ 128.00

13129D

131291669
ref: 13129D

GEAR,OUTPUT 3RD,35T

€ 119.00

13129E

131291670
ref: 13129E

GEAR,OUTPUT 4TH,32T

€ 115.50

13129F

131291671
ref: 13129F

GEAR,OUTPUT 5TH,30T

€ 144.50

13129G

131291672
ref: 13129G

GEAR,OUTPUT TOP,29T

€ 128.50

13129H

131291934
ref: 13129H

GEAR,OUTPUT 2ND,38T

€ 120.50

13129I

131291953
ref: 13129I

GEAR,INPUT 2ND,19T

€ 73.00

13144

131441146
ref: 13144

SPROCKET-OUTPUT,17T

€ 33.50

92015

920151210
ref: 92015

NUT,20MM

€ 12.00

92022

920221077
ref: 92022

WASHER,LOCK (O.D=35O)

€ 7.50

92022A

920221336
ref: 92022A

WASHER,23.9X45X1.0

€ 4.00

92022B

92022212
ref: 92022B

WASHER-PLAIN,22MM

€ 6.50

92022C

92024043
ref: 92022C

WASHER,TOOTHED,30.3X4

€ 8.00

92022D

92024069
ref: 92022D

WASHER,TOOTHED,30.5X3

€ 3.50

92027

920271711
ref: 92027

COLLAR,28X40X23.5

€ 14.50

92028

920281124
ref: 92028

BUSHING,TOP GEAR

€ 31.00

92028A

920281363
ref: 92028A

BUSHING,OUTPUT 3RD&4T

€ 30.50

92033

92033025
ref: 92033

CIRCLIP,25MM

€ 3.00

92045

920451186
ref: 92045

BEARING-BALL

€ 73.00

92046

92046031
ref: 92046

BEARING-NEEDLE,FWF-22

€ 19.50

92048

920481052
ref: 92048

RACE,INPUT SHAFT

€ 59.50

92048A

920481053
ref: 92048A

RACE,30X38X15

€ 27.50

480

480J2800
ref: 480

CIRCLIP-TYPE-C,28MM

€ 3.50

480A

480J2900
ref: 480A

CIRCLIP

€ 3.50

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50
