Genuine ZX Kawasaki Parts delivered quickly!


CYLINDER HEAD

ZX1000B2 1989 EUROPE UK FR AR GR IT NR SD

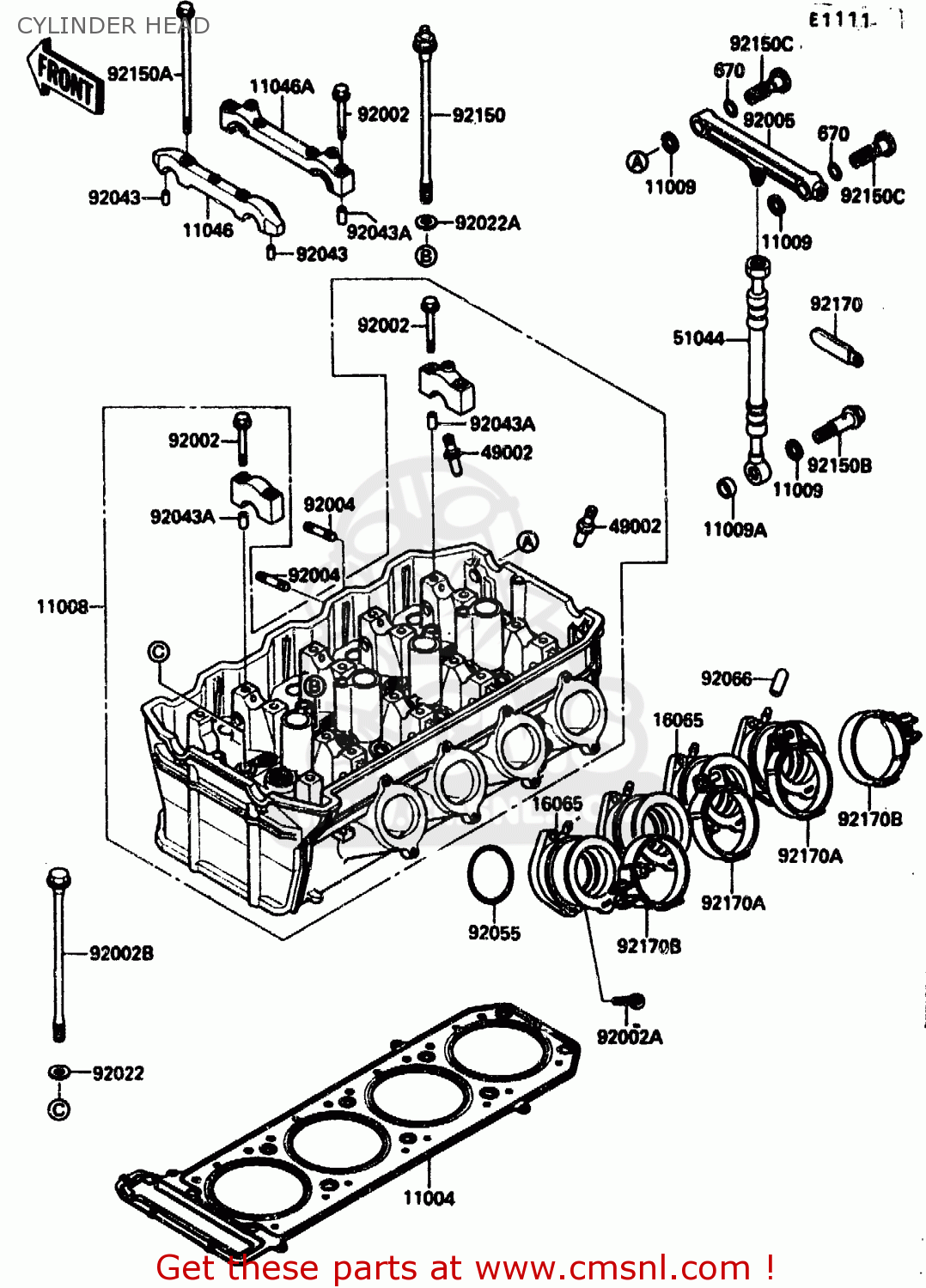

Cylinder head diagram ZX1000B2 1989 EUROPE UK FR AR GR IT NR SD

CYLINDER HEAD ZX1000B2 1989 EUROPE UK FR AR GR IT NR SD
CYLINDER HEAD ZX1000B2 1989 EUROPE UK FR AR GR IT NR SD
CYLINDER HEAD ZX1000B2 1989 EUROPE UK FR AR GR IT NR SD
prices are in EUR
ref
part #
description
quantity
11004
110041181
ref: 11004
GASKET-HEAD (NAS)
110041181
€ 61.00
11008
110081207
ref: 11008
HEAD-COMP-CYLINDER
110081207
€ 1,573.00
11009
110091461
ref: 11009
GASKET,14X19.5X1.4 (NAS)
110091461
€ 3.50
11009A
110091726
ref: 11009A
GASKET,14X20X10 (NAS)
110091726
€ 4.50
11046
110461150
ref: 11046
BRACKET,CAMSHAFT,#9
110461150
€ 34.00
11046A
110461151
ref: 11046A
BRACKET,CAMSHAFT,#10
110461151
€ 34.00
16065
160651182
ref: 16065
HOLDER-CARBURETOR
160651182
€ 20.50
49002
490021097
ref: 49002
GUIDE-VALVE
490021097
€ 18.50
51044
510441094
ref: 51044
TUBE-ASSY
510441094
€ 135.00
92002
920021756
ref: 92002
BOLT,6X40
920021756
€ 3.00
92002A
920021778
ref: 92002A
BOLT,SOCKET,6X16
920021778
€ 3.00
92002B
920021943
ref: 92002B
BOLT,10X164
920021943
€ 10.50
92004
920041181
ref: 92004
STUD,8X22
920041181
€ 3.00
92005
920051168
ref: 92005
FITTING
920051168
€ 59.00
92022
920221591
ref: 92022
WASHER,10.5X20X1.6
920221591
€ 3.00
92022A
920221720
ref: 92022A
WASHER
920221720
€ 2.50
92043
920431262
ref: 92043
PIN,DOWEL,4.2X6X12
920431262
€ 2.50
92043A
920431263
ref: 92043A
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92055
920551401
ref: 92055
RING-O,43.7X1.9
920551401
€ 9.50
92066
92068006
ref: 92066
ST
RUBBER PLUG
92068006
€ 2.50
92066
92068006
ref: 92066
AR, EU, FR, GR, IT,
RUBBER PLUG
92068006
€ 2.50
92150
921501075
ref: 92150
BOLT,11X164
921501075
€ 13.50
92150A
921501076
ref: 92150A
BOLT,6X148
€ 5.00
92150B
921501077
ref: 92150B
BOLT,BANJO,12X40.5
921501077
€ 13.00
92150C
921501078
ref: 92150C
BOLT
921501078
€ 15.50
92170
920371997
ref: 92170
CLAMP
920371997
€ 3.00
92170A
921701066
ref: 92170A
CLAMP
921701066
€ 5.50
92170B
921701068
ref: 92170B
CLAMP
€ 4.00
670
670B2015
ref: 670
O RING,15MM
670B2015
€ 1.00
