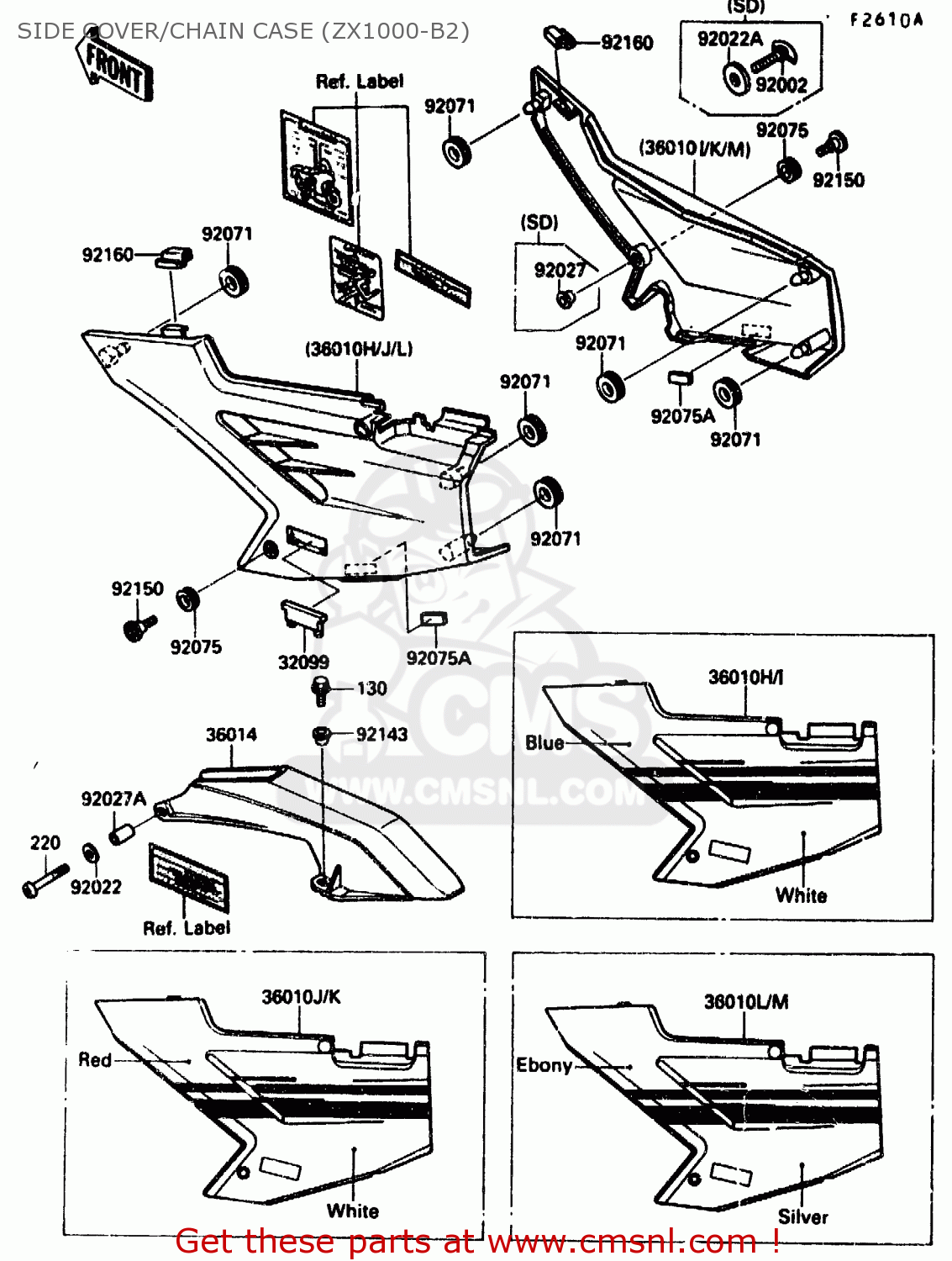

SIDE COVER/CHAIN CASE (ZX1000-B2)

ref

part #

description

quantity

32099

320991116
ref: 32099

CASE,SIDE COVER

€ 4.50

36010H

360105142S3
ref: 36010H
AR, EU, FR, GR, IT,

COVER-SIDE,LH,BLUE/WH

€ 159.50

36010I

360105143S3
ref: 36010I
AR, EU, FR, GR, IT,

COVER-SIDE,RH,BLUE/WH

€ 169.50

36010J

360105144P9
ref: 36010J
AR, EU, FR, GR, NR,

COVER-SIDE,LH,RED/WHI

€ 159.50

36010K

360105145P9
ref: 36010K
AR, EU, FR, GR, NR,

COVER-SIDE,RH,RED/WHI

€ 159.50

36010L

360105153DE
ref: 36010L

COVER-SIDE,LH,EBONY/S

€ 197.00

36010M

360105154DE
ref: 36010M

COVER-SIDE,RH,EBONY/S

€ 159.50

36014

360141151
ref: 36014

CASE-CHAIN

€ 108.50

92002

920021527
ref: 92002
SD

BOLT

€ 7.50

92022

920221346
ref: 92022

WASHER,6.5X20X1.6,BLA

€ 0.50

92022A

920221619
ref: 92022A
SD

WASHER,6.5X20X1.6,BLA

€ 3.00

92027

920271795
ref: 92027
SD

COLLAR,L=9.1,WHITE

€ 4.00

92027A

920271856
ref: 92027A

COLLAR,6.8X10X22

€ 4.00

92071

92071056
ref: 92071

GROMMET

€ 2.50

92075

920751634
ref: 92075

DAMPER

€ 3.00

92075A

920751902
ref: 92075A

DAMPER

€ 3.00

92143

921431088
ref: 92143

COLLAR,L=6.6

€ 3.50

92150

921501154
ref: 92150
SD

BOLT,SOCKET,6MM

€ 5.00

92150

921501154
ref: 92150
AR, EU, FR, GR, IT,

BOLT,SOCKET,6MM

€ 5.00

92160

921601085
ref: 92160

DAMPER

€ 3.00

130

130J0614
ref: 130

BOLT-FLANGED,6X14,BLA

€ 1.50

220

220C0635
ref: 220

SCREW-PAN-CROS,6X35,B

€ 3.50

all assemblies
