REAR HUB

ZX1000B2 1989 EUROPE UK FR AR GR IT NR SD

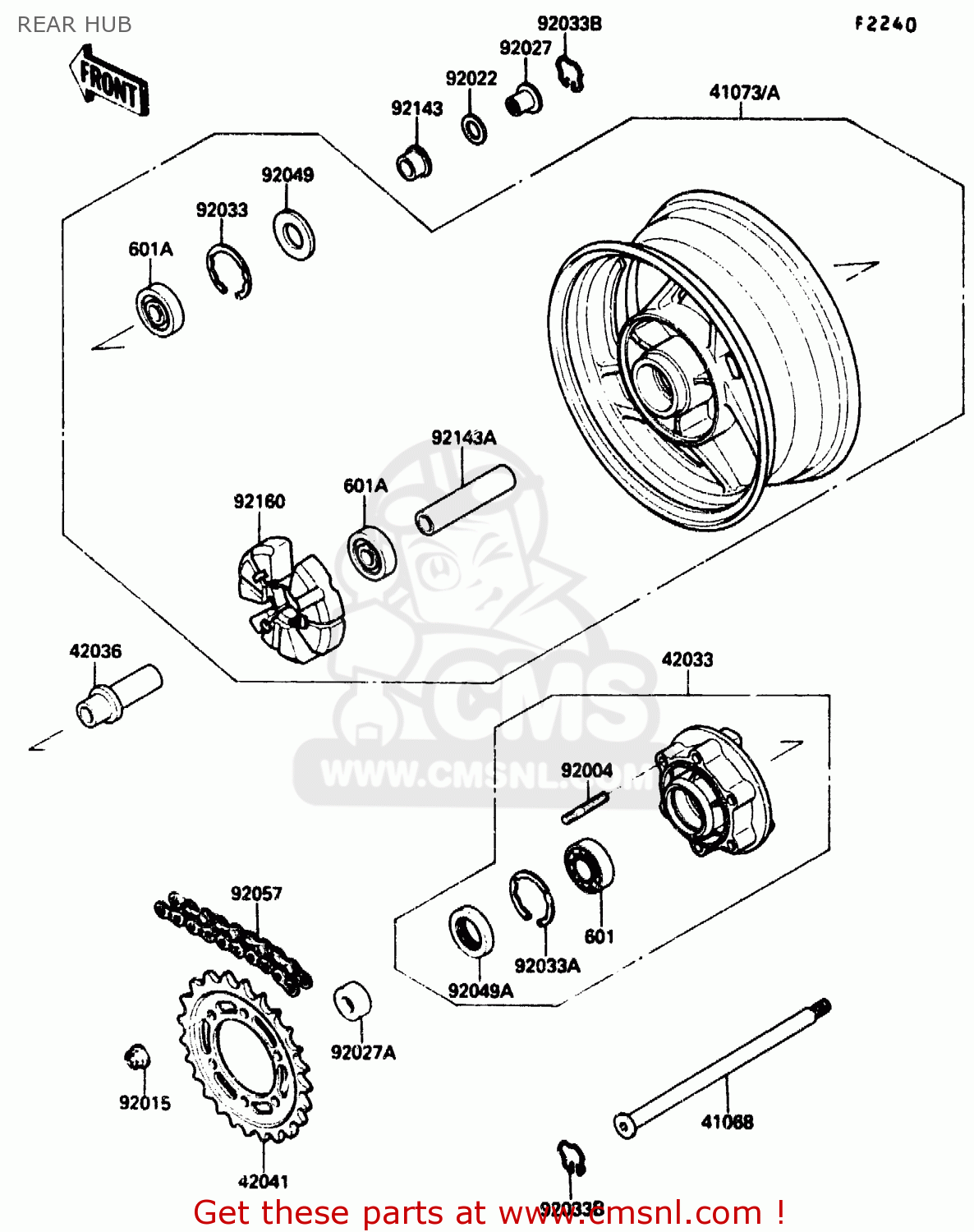

Rear hub diagram ZX1000B2 1989 EUROPE UK FR AR GR IT NR SD

REAR HUB ZX1000B2 1989 EUROPE UK FR AR GR IT NR SD
REAR HUB ZX1000B2 1989 EUROPE UK FR AR GR IT NR SD
REAR HUB ZX1000B2 1989 EUROPE UK FR AR GR IT NR SD
prices are in EUR
ref
part #
description
quantity
41068
410681256
ref: 41068
AXLE,RR
€ 89.00
41073
410731392CX
ref: 41073
WHEEL-ASSY,RR,SILVER
410731392CX
€ 688.50
42033
4203311337J
ref: 42033
COUPLING-ASSY,RR HUB,
€ 238.00
42036
420361229
ref: 42036
SLEEVE,RR AXLE,L=62
420361229
€ 26.50
42041
420411306
ref: 42041
SPROCKET-HUB,45T
420411306
€ 45.50
92004
920041146
ref: 92004
STUD,10X24
920041146
€ 4.00
92015
920151720
ref: 92015
NUT,10MM
920151720
€ 3.50
92022
920221618
ref: 92022
WASHER,23X32X2.3
920221618
€ 4.00
92027
920271810
ref: 92027
COLLAR,RR AXLE,L=28
920271810
€ 21.00
92027A
920271884
ref: 92027A
COLLAR,RR AXLE,L=20.5
920271884
€ 20.50
92033
920331043
ref: 92033
RING,SNAP,56.2M/M
920331043
€ 6.00
92033A
920331044
ref: 92033A
CIRCLIP 62 M/M
920331044
€ 7.50
92033B
920331156
ref: 92033B
RING-SNAP,RR AXLE
920331156
€ 3.00
92049
920491061
ref: 92049
SEAL-OIL,28X52X5
920491061
€ 13.00
92049A
92050027
ref: 92049A
OIL SEAL
92050027
€ 13.50
92057
920571259
ref: 92057
CHAIN,DRIVE,EK532ZV-O
920571259
€ 165.50
92143
921431042
ref: 92143
COLLAR,L=23
921431042
€ 19.50
92143A
921431199
ref: 92143A
COLLAR,20.2X29X89
921431199
€ 20.00
92160
921601051
ref: 92160
DAMPER,SHOCK,RR HUB
921601051
€ 97.50
601
601B6206UU
ref: 601
BEARING-BALL,#6206UUC
601B6206UU
€ 41.00
601A
601B6304UU
ref: 601A
BEARING-BALL,#6304UUC
601B6304UU
€ 34.50
