Genuine ZX Kawasaki Parts delivered quickly!


CYLINDER/PISTON

ZX1000B2 1989 EUROPE UK FR AR GR IT NR SD

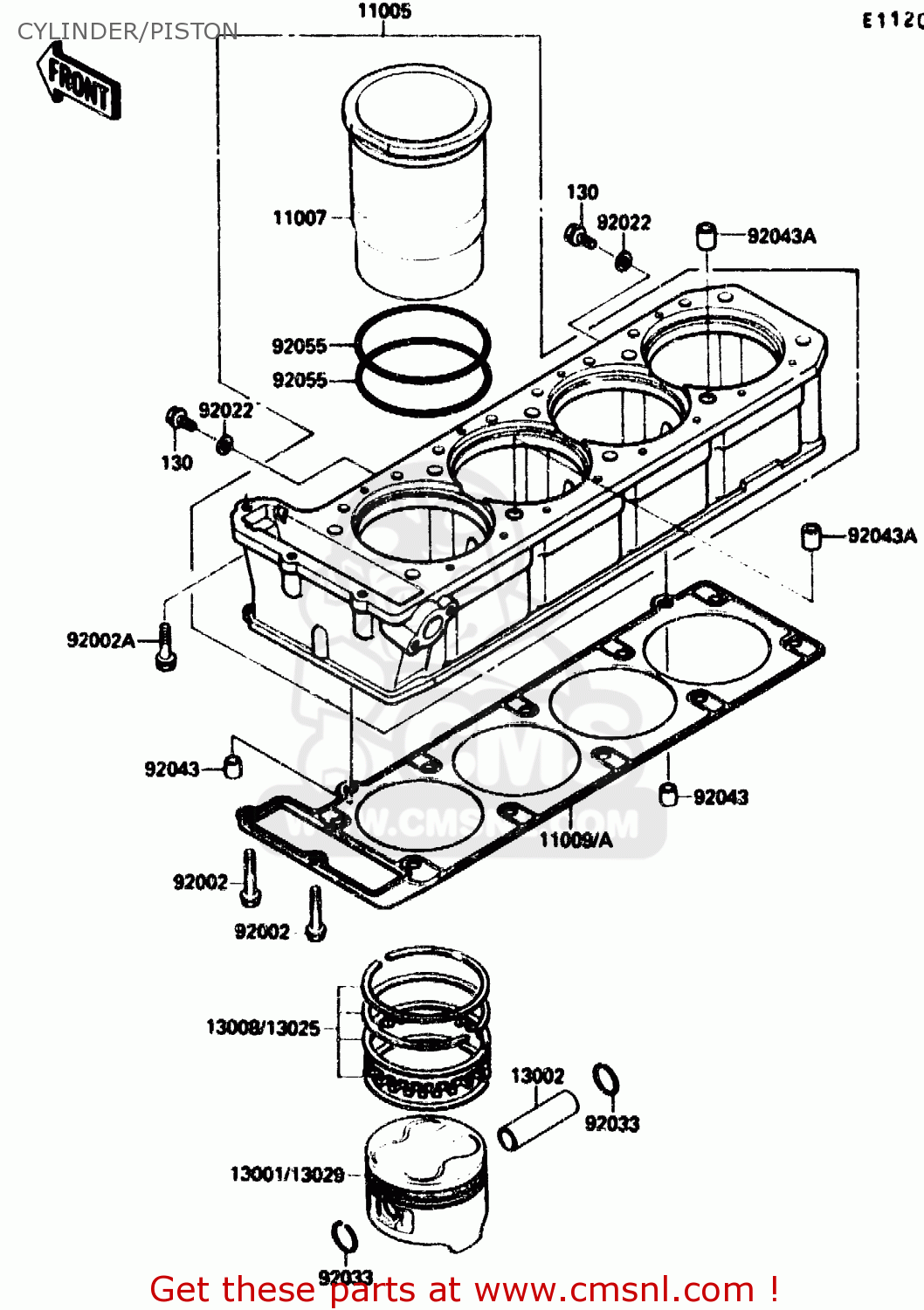

Cylinder/piston diagram ZX1000B2 1989 EUROPE UK FR AR GR IT NR SD

CYLINDER/PISTON ZX1000B2 1989 EUROPE UK FR AR GR IT NR SD
CYLINDER/PISTON ZX1000B2 1989 EUROPE UK FR AR GR IT NR SD
CYLINDER/PISTON ZX1000B2 1989 EUROPE UK FR AR GR IT NR SD
prices are in EUR
ref
part #
description
quantity
11005
110051551
ref: 11005
CYLINDER-ENGINE
€ 1,191.00
11007
110071102
ref: 11007
LINER-CYLINDER
110071102
€ 84.00
11009
110091505
ref: 11009
AR, EU, GR, IT, NR,
GASKET,CYLINDER BASE (NAS)
110091505
€ 24.50
11009
110091505
ref: 11009
FR
GASKET,CYLINDER BASE (NAS)
110091505
€ 24.50
11009A
110091753
ref: 11009A
FR
GASKET,CYLINDER BASE (NAS)
110091753
€ 13.00
13001
130011273
ref: 13001
PISTON-ENGINE,STD
130011273
€ 39.50
13002
130021058
ref: 13002
PIN-PISTON
130021058
€ 17.00
13008
130081102
ref: 13008
RING-SET-PISTON,STD
130081102
€ 47.00
13025
130251091
ref: 13025
RING-SET-PISTON L,O/S
130251091
€ 58.50
13029
130291172
ref: 13029
PISTON-ENGINE L,O/S 0
€ 73.50
92002
920011899
ref: 92002
BOLT,6X38
920011899
€ 2.50
92002A
920021138
ref: 92002A
BOLT,6X30
920021138
€ 3.00
92022
92022304
ref: 92022
WASHER,PLAIN
92022304
€ 2.50
92033
920331099
ref: 92033
RING-SNAP,18MM
920331099
€ 0.50
92043
920431264
ref: 92043
PIN,DOWEL,8.2X10X14
920431264
€ 0.50
92043A
920431279
ref: 92043A
PIN,11.5X14X14
920431279
€ 3.00
92055
920551247
ref: 92055
RING-O,80.6X2.4
920551247
€ 8.00
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
130C0610
€ 1.50
