COWLING (ZX1000-B2)

ZX1000B2 1989 EUROPE UK FR AR GR IT NR SD

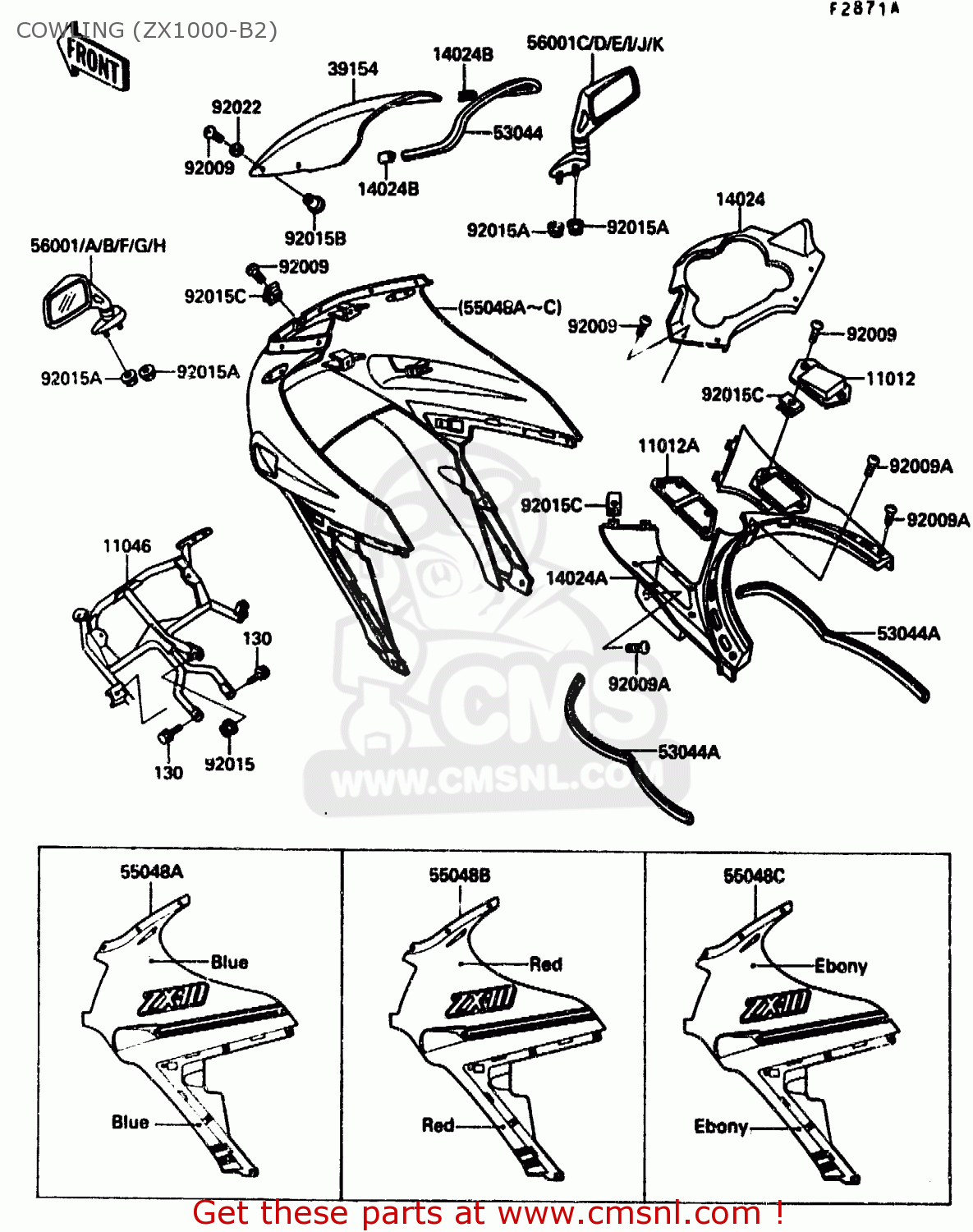

Cowling (zx1000-b2) diagram ZX1000B2 1989 EUROPE UK FR AR GR IT NR SD

COWLING (ZX1000-B2) ZX1000B2 1989 EUROPE UK FR AR GR IT NR SD
COWLING (ZX1000-B2) ZX1000B2 1989 EUROPE UK FR AR GR IT NR SD
COWLING (ZX1000-B2) ZX1000B2 1989 EUROPE UK FR AR GR IT NR SD
prices are in EUR
ref
part #
description
quantity
11012
110121654
ref: 11012
CAP,INNER COWLING,RH
110121654
€ 12.00
11012A
110121656
ref: 11012A
CAP,INNER COWLING,LH
110121656
€ 31.50
11046
110461251
ref: 11046
BRACKET,UPPER COWLING
110461251
€ 204.50
14024
140241642
ref: 14024
COVER,INNER COWLING,F
€ 52.00
14024A
140241643
ref: 14024A
COVER,INNER COWLING,R
140241643
€ 106.00
14024B
140241730
ref: 14024B
COVER,TRIM END
140241730
€ 3.00
39154
391541090
ref: 39154
WINDSHIELD
€ 251.00
53044
530441203
ref: 53044
TRIM,L=720
530441203
€ 19.00
53044A
530441210
ref: 53044A
TRIM,L=685
530441210
€ 19.00
55048A
550485053M4
ref: 55048A
AR, EU, FR, GR, IT,
COWLING.,UPP,L.P.BLUE
550485053M4
€ 786.50
55048B
550485057B1
ref: 55048B
AR, EU, FR, GR, NR,
COWLING.,UPP,F.RED
€ 786.50
55048C
550485068H8
ref: 55048C
COWLING.,UPP,EBONY
€ 786.50
56001
560011293BT
ref: 56001
EU, FR, IT, SP, UK
MIRROR-ASSY,LH,P.BLUE
560011293BT
€ 94.50
56001A
5600112936C
ref: 56001A
EU, FR, IT, SP, UK
MIRROR-ASSY,LH,EBONY
5600112936C
€ 98.00
56001B
5600112936L
ref: 56001B
EU, FR, SP, UK
MIRROR-ASSY,LH,F.RED
5600112936L
€ 92.50
56001C
560011294BT
ref: 56001C
EU, FR, IT, SP, UK
MIRROR-ASSY,RH,P.BLUE
560011294BT
€ 101.00
56001D
5600112946C
ref: 56001D
EU, FR, IT, SP, UK
MIRROR-ASSY,RH,EBONY
5600112946C
€ 98.00
56001E
5600112946L
ref: 56001E
EU, FR, SP, UK
MIRROR-ASSY,RH,F.RED
5600112946L
€ 92.50
56001F
560011325BT
ref: 56001F
AR, GR, NR, SD, WG
MIRROR-ASSY,LH,P.BLUE
€ 101.00
56001G
5600113256C
ref: 56001G
AR, GR, NR, SD, ST,
MIRROR-ASSY,LH,EBONY
5600113256C
€ 101.00
56001H
5600113256L
ref: 56001H
AR, GR, ST, WG
MIRROR-ASSY,LH,F.RED
5600113256L
€ 80.00
56001I
560011326BT
ref: 56001I
AR, GR, NR, SD, WG
MIRROR-ASSY,RH,P.BLUE
€ 94.50
56001J
5600113266C
ref: 56001J
AR, GR, NR, SD, ST,
MIRROR-ASSY,RH,EBONY
5600113266C
€ 94.50
56001K
5600113266L
ref: 56001K
AR, GR, ST, WG
MIRROR-ASSY,RH,F.RED
5600113266L
€ 92.50
92009
920091301
ref: 92009
SCREW,5X16
920091301
€ 0.50
92009A
920091530
ref: 92009A
SCREW,6X10
920091530
€ 2.50
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92015A
920151233
ref: 92015A
NUT,FLANGED,6MM
920151233
€ 3.50
92015B
920151640
ref: 92015B
NUT
920151640
€ 5.00
92015C
920151710
ref: 92015C
NUT
920151710
€ 4.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
130
130J0812
ref: 130
BOLT-FLANGED
130J0812
€ 0.50
