Genuine ZX Kawasaki Parts delivered quickly!


TURN SIGNALS

ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP

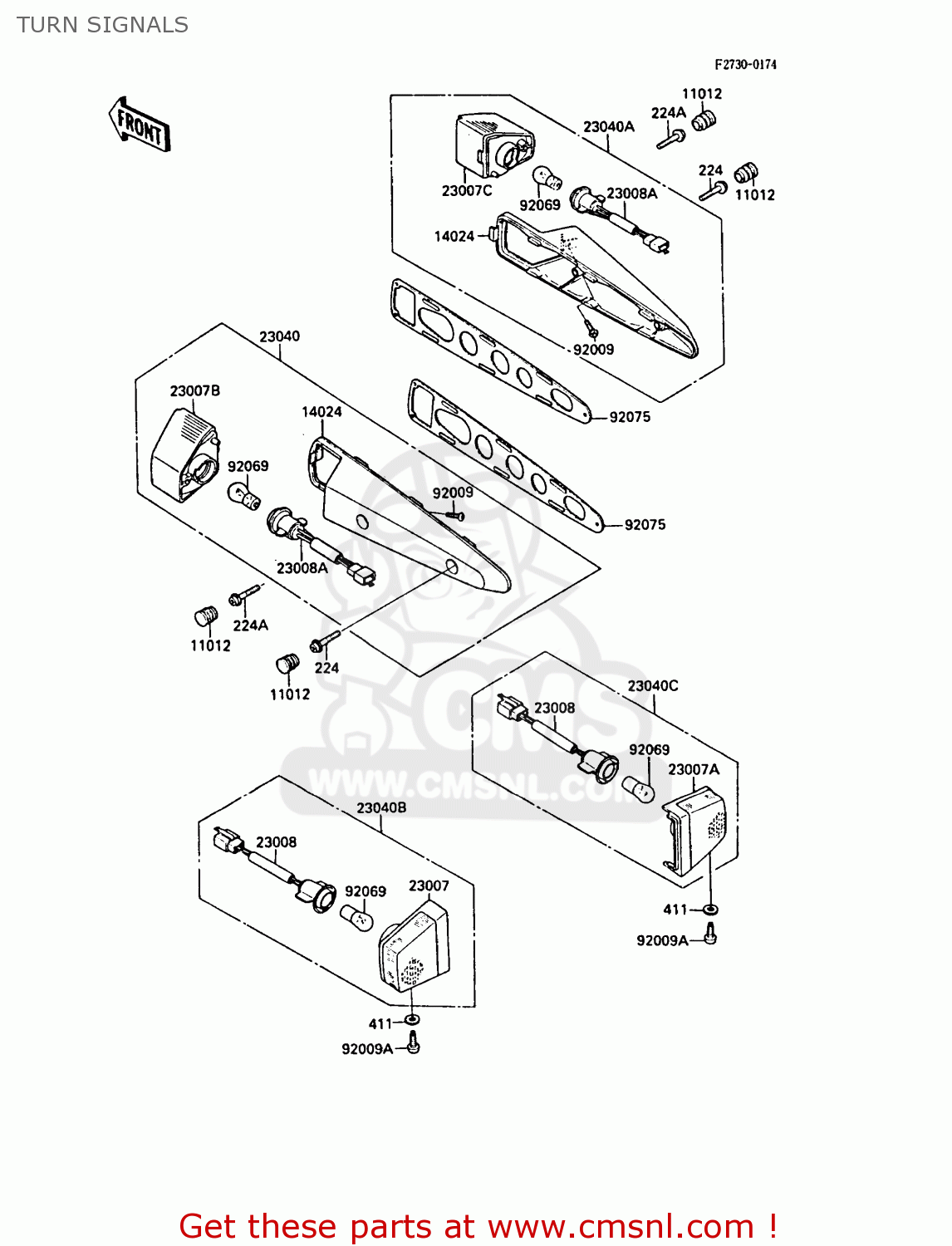

Turn signals diagram ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP

TURN SIGNALS ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP
TURN SIGNALS ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP
TURN SIGNALS ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP
prices are in EUR
ref
part #
description
quantity
224
224D0516
ref: 224
SCREW-PAN-WP-CROS,5X1
224D0516
€ 2.00
224A
224D0535
ref: 224A
SCREW-PAN-WP-CROS,5X3
224D0535
€ 2.00
411
411F0500
ref: 411
WASHER,PLANE,5MM
411F0500
€ 0.50
11012
110121453
ref: 11012
CAP,PLUG
110121453
€ 2.50
14024
140241053
ref: 14024
COVER,SIGNAL LAMP,FR
140241053
€ 25.00
23007
230071129
ref: 23007
LENS-COMP,SIGNAL LAMP
230071129
€ 32.00
23007A
230071130
ref: 23007A
LENS-COMP,SIGNAL LAMP
230071130
€ 38.00
23007B
230071139
ref: 23007B
LENS-COMP,SIGNAL LAMP
230071139
€ 13.00
23007C
230071140
ref: 23007C
LENS-COMP,SIGNAL LAMP
230071140
€ 17.50
23008
230081263
ref: 23008
SOCKET-ASSY,SIGNAL LA
230081263
€ 12.50
23008A
230081273
ref: 23008A
SOCKET-ASSY,SIGNAL LA
230081273
€ 16.50
23040
230401121
ref: 23040
LAMP-SIGNAL,FR,LH
230401121
€ 52.00
23040A
230401122
ref: 23040A
LAMP-SIGNAL,FR,RH
230401122
€ 52.00
23040B
230401123
ref: 23040B
LAMP-SIGNAL,RR,LH
230401123
€ 34.50
23040C
230401124
ref: 23040C
LAMP-SIGNAL,RR,RH
230401124
€ 55.00
92009
920091254
ref: 92009
SCREW,TAPPING,4X12
920091254
€ 2.50
92009A
920091399
ref: 92009A
SCREW,TAPPING,5X20
920091399
€ 2.00
92069

ref: 92069
92075
920751722
ref: 92075
DAMPER,SIGNAL LAMP,FR
920751722
€ 18.50
