CARBURETOR

ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP

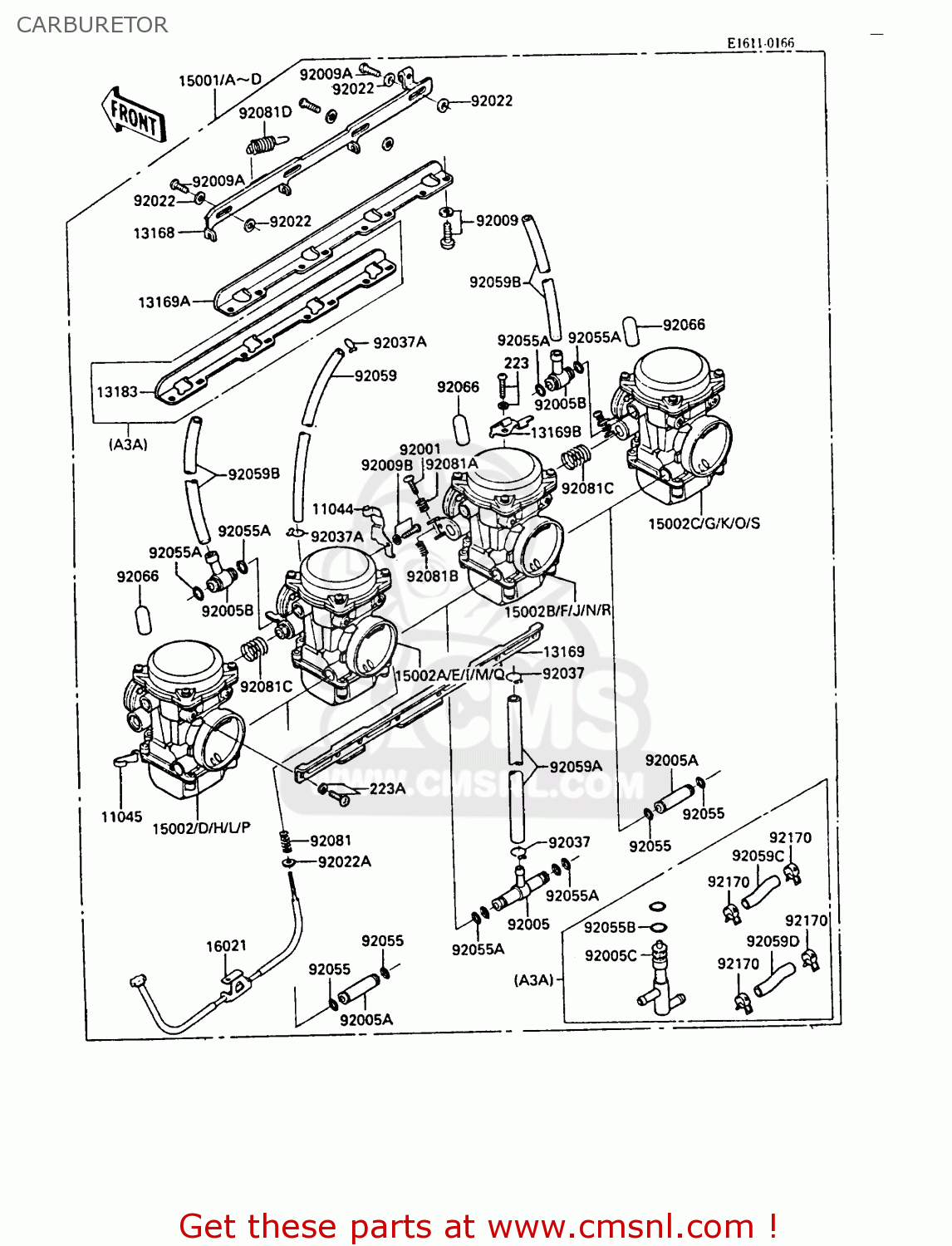

Carburetor diagram ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP

CARBURETOR ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP
CARBURETOR ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP
CARBURETOR ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP
prices are in EUR
ref
part #
description
quantity
11044
110441546
ref: 11044
BRACKET,THROTTLE CABL
110441546
€ 41.00
11045
110451607
ref: 11045
BRACKET,THROTTLE STOP
€ 14.50
13168
131681245
ref: 13168
LEVER,STARTER
€ 95.50
13169
131691869
ref: 13169
PLATE,CARBURETOR STAY
131691869
€ 80.50
13169A
131691870
ref: 13169A
PLATE,CARBURETOR STAY
131691870
€ 72.00
13169B
131691871
ref: 13169B
PLATE,STARTER CABLE
€ 16.00
15001
150011162
ref: 15001
ST
CARBURETOR-ASSY
€ 1,668.50
15001A
150011163
ref: 15001A
FGSD
CARBURETOR-ASSY
€ 1,077.00
15001B
150011166
ref: 15001B
EUGRITNRSPUK
CARBURETOR-ASSY
€ 1,776.50
15001C
150011227
ref: 15001C
ARFR
CARBURETOR-ASSY
€ 1,605.00
15002
150021288
ref: 15002
ST
CARBURETOR,LH,OUTSIDE
€ 453.50
15002A
150021289
ref: 15002A
ST
CARBURETOR,LH,INSIDE
€ 396.50
15002B
150021290
ref: 15002B
ST
CARBURETOR,RH,INSIDE
€ 396.50
15002C
150021291
ref: 15002C
ST
CARBURETOR,RH,OUTSIDE
€ 396.50
15002D
150021292
ref: 15002D
FGSD
CARBURETOR,LH,OUTSIDE
€ 396.50
15002E
150021293
ref: 15002E
FGSD
CARBURETOR,LH,INSIDE
€ 396.50
15002F
150021294
ref: 15002F
FGSD
CARBURETOR,RH,INSIDE
€ 453.50
15002G
150021295
ref: 15002G
FGSD
CARBURETOR,RH,OUTSIDE
€ 453.50
15002H
150021304
ref: 15002H
EUGRITNRSPUK
CARBURETOR,LH,OUTSIDE
€ 563.00
15002I
150021305
ref: 15002I
EUGRITNRSPUK
CARBURETOR,LH,INSIDE
€ 396.50
15002J
150021306
ref: 15002J
EUGRITNRSPUK
CARBURETOR,RH,INSIDE
€ 563.00
15002K
150021307
ref: 15002K
EUGRITNRSPUK
CARBURETOR,RH,OUTSIDE
€ 563.00
15002L
150021308
ref: 15002L
ARFR
CARBURETOR,LH,OUTSIDE
€ 453.50
15002M
150021309
ref: 15002M
ARFR
CARBURETOR,LH,INSIDE
€ 453.50
15002N
150021310
ref: 15002N
ARFR
CARBURETOR,RH,INSIDE
€ 453.50
15002O
150021311
ref: 15002O
ARFR
CARBURETOR,RH,OUTSIDE
€ 453.50
16021
160211116
ref: 16021
SCREW-THROTTLE STOP
€ 101.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92005
920051108
ref: 92005
FITTING,FUEL,T-TYPE
920051108
€ 16.50
92005A
920051109
ref: 92005A
FITTING,FUEL,I-TYPE
920051109
€ 25.00
92005B
920051125
ref: 92005B
FITTING,T-TYPE
920051125
€ 18.00
92009
920091129
ref: 92009
SCREW,6X16
€ 3.00
92009A
920091262
ref: 92009A
SCREW
920091262
€ 4.00
92009B
920091365
ref: 92009B
SCREW
920091365
€ 4.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
920221480
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
920371075
€ 2.50
92037A
920371477
ref: 92037A
CLAMP,TUBE
920371477
€ 3.00
92055
920551004
ref: 92055
O RING
920551004
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
920551223
€ 3.50
92059
920591173
ref: 92059
TUBE,5X9X200
€ 16.50
92059A
920591492
ref: 92059A
TUBE,7.3X12.5X260
€ 25.00
92059B
920591598
ref: 92059B
TUBE,6.5X9.5X260
€ 20.50
92066
92068006
ref: 92066
RUBBER PLUG
92068006
€ 2.50
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
223C0420
€ 3.00
223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
92081
920811617
ref: 92081
SPRING,THROTTLE STOP
920811617
€ 3.50
92081A
920811620
ref: 92081A
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081B
920811621
ref: 92081B
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081C
920811622
ref: 92081C
SPRING,THROTTLE ADJUS
920811622
€ 6.50
92081D
920811762
ref: 92081D
SPRING,STARTER LEVER
920811762
€ 14.00
