CARBURETOR PARTS

ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP

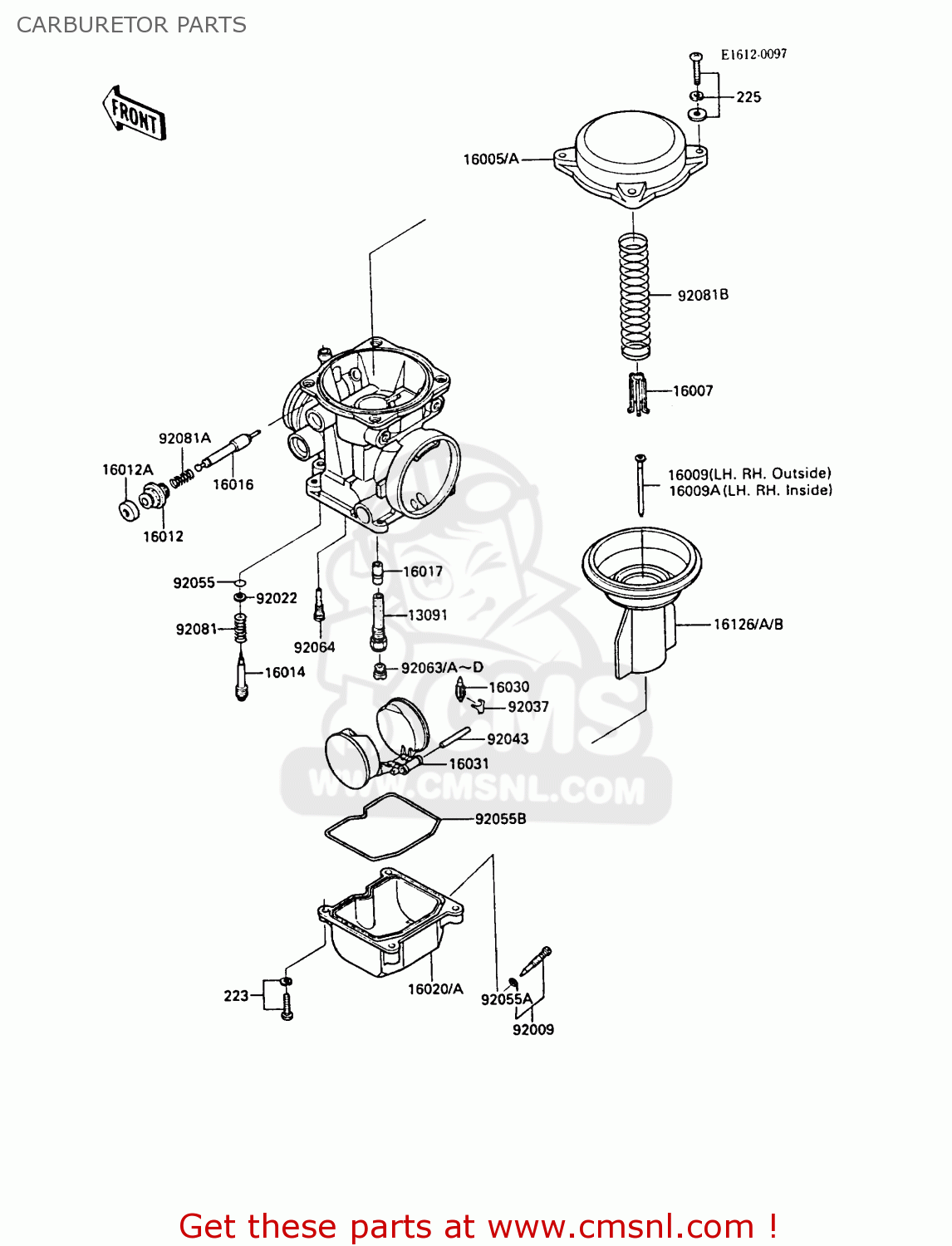

Carburetor parts diagram ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP

CARBURETOR PARTS ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP
CARBURETOR PARTS ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP
CARBURETOR PARTS ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP
prices are in EUR
ref
part #
description
quantity
13091
130911425
ref: 13091
HOLDER,NEEDLE JET
130911425
€ 19.50
16005
160051054
ref: 16005
EUGRITNRSPSTUK
TOP-CHAMBER,MIXING
160051054
€ 30.50
16005A
160051059
ref: 16005A
ARFGFRSD
TOP-CHAMBER,MIXING,50
160051059
€ 55.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
160071117
€ 16.50
16009
160091292
ref: 16009
NEEDLE-JET,N36D
160091292
€ 19.50
16009A
160091293
ref: 16009A
NEEDLE-JET,N36E
160091293
€ 19.50
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
160121051
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
160121052
€ 10.00
16014
160141054
ref: 16014
SCREW-PILOT AIR
160141054
€ 15.50
16016
160161061
ref: 16016
PLUNGER,STARTER
160161061
€ 30.50
16017
160171266
ref: 16017
JET-NEEDLE,#6
160171266
€ 39.00
16020
160201056
ref: 16020
CHAMBER-FLOAT,LH
€ 77.50
16020A
160201057
ref: 16020A
CHAMBER-FLOAT,RH
€ 77.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16031
160311052
ref: 16031
FLOAT
160311052
€ 48.50
16126
161261163
ref: 16126
FGSD
VALVE,VACUUM
161261163
€ 157.50
16126A
161261170
ref: 16126A
AREUFRGRITNRSPUK
VALVE,VACUUM
161261170
€ 168.00
16126B
161261171
ref: 16126B
ST
VALVE,VACUUM
€ 125.50
92009
920091095
ref: 92009
SCREW,DRAIN
920091095
€ 10.00
92022
920221003
ref: 92022
WASHER,PLAIN
920221003
€ 2.50
92037
16044007
ref: 92037
CLIP, FLOAT VALVE
16044007
€ 4.00
92043
920431207
ref: 92043
PIN,FLOAT
920431207
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055A
920551053
ref: 92055A
O RING,DRAIN SCREW
920551053
€ 3.00
92055B
920551222
ref: 92055B
RING-O,FLOAT CHAMBER
920551222
€ 12.50
92063
920631014
ref: 92063
MAIN JET,#135
920631014
€ 9.50
92063A
920631015
ref: 92063A
MAIN JET,#138
920631015
€ 9.50
92063B
920631074
ref: 92063B
MAIN JET,2ND #128
920631074
€ 9.50
92063C
920631075
ref: 92063C
MAIN JET,2ND #130
920631075
€ 9.50
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
223C0416
€ 2.50
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
225C0418
€ 2.50
92063D
920631076
ref: 92063D
JET-MAIN,#132
920631076
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
920641101
€ 11.50
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
920811002
€ 3.50
92081A
920811761
ref: 92081A
SPRING,STARTER PLUNGE
920811761
€ 6.00
92081B
920811983
ref: 92081B
SPRING,VACUUM VALVE
920811983
€ 13.00
