BRAKE PEDAL

ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP

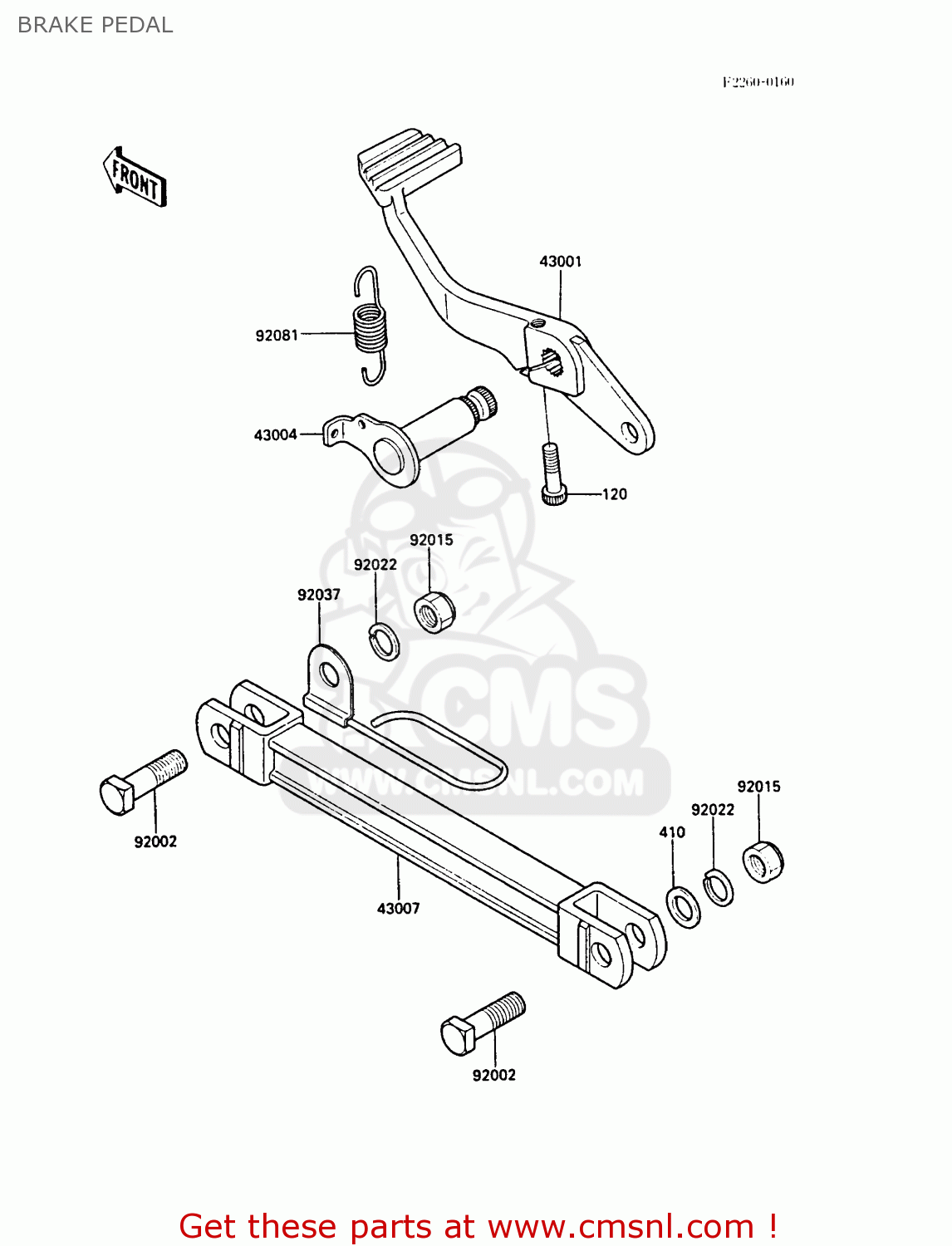

Brake pedal diagram ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP

prices are in EUR

ref

part #

description

quantity

120

120P0625
ref: 120

BOLT,6X25

€ 1.50

410

410B1000
ref: 410

WASHER-PLAIN-SMALL,10

€ 0.50

43001

430011183
ref: 43001

LEVER-BRAKE,PEDAL

€ 45.50

43004

430041112
ref: 43004

SHAFT-BRAKE

€ 21.50

43007

430071117
ref: 43007

ROD-TORQUE

€ 73.00

92002

920021494
ref: 92002

BOLT,10X40

€ 3.50

92015

920151429
ref: 92015

NUT,10MM

€ 4.50

92022

920221540
ref: 92022

WASHER,SPRING,10MM

€ 2.50

92037

920371709
ref: 92037

CLAMP,HOSE

€ 8.50

92081

920811947
ref: 92081

SPRING,STEP RETURN

€ 3.50
