Genuine ZX Kawasaki Parts delivered quickly!


RADIATOR

ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP

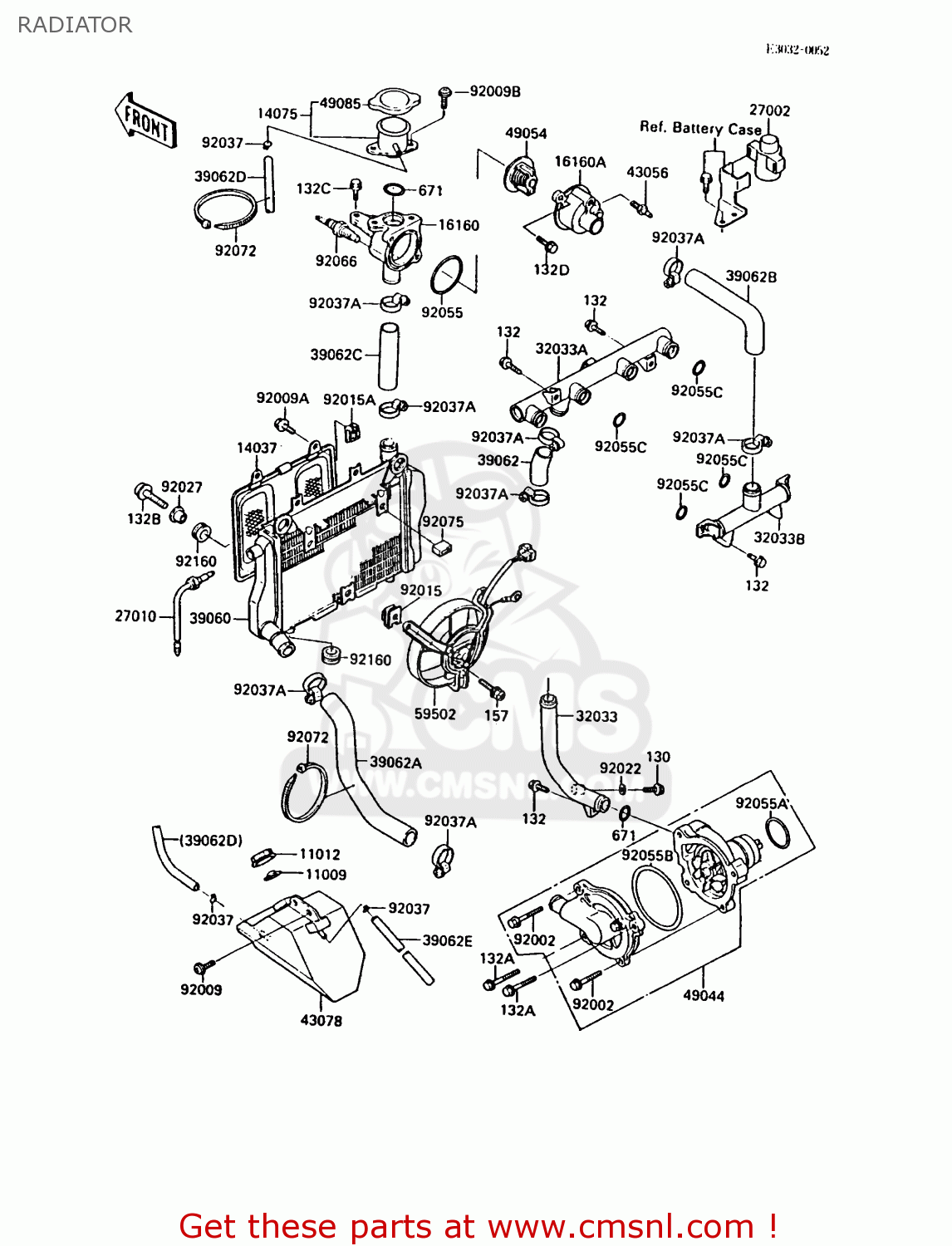

Radiator diagram ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP

RADIATOR ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP
RADIATOR ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP
RADIATOR ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
14037
140371070
ref: 14037
SCREEN,RADIATOR
140371070
€ 66.00
14075
140751062
ref: 14075
CAP-ASSY,RADIATOR
140751062
€ 89.50
16160
161601100
ref: 16160
BODY
161601100
€ 41.00
16160A
161601111
ref: 16160A
BODY
161601111
€ 31.50
27002
270021054
ref: 27002
RELAY-ASSY
270021054
€ 31.50
27010
270101180
ref: 27010
SWITCH,FAN
270101180
€ 104.50
32033
320331206
ref: 32033
PIPE
320331206
€ 98.00
32033A
320331262
ref: 32033A
PIPE
€ 124.50
32033B
320331846
ref: 32033B
PIPE
€ 69.00
39060
390601063
ref: 39060
RADIATOR
€ 728.00
39062
390621072
ref: 39062
HOSE-COOLING
390621072
€ 14.00
39062A
390621117
ref: 39062A
HOSE-COOLING
390621117
€ 44.00
39062B
390621118
ref: 39062B
HOSE-COOLING
390621118
€ 48.50
39062C
390621119
ref: 39062C
HOSE-COOLING
390621119
€ 9.50
39062D
390621121
ref: 39062D
HOSE-COOLING,5.5X10.5
€ 16.50
39062E
390621144
ref: 39062E
HOSE-COOLING,5.5X10.5
390621144
€ 25.00
43056
43056003
ref: 43056
BREATHER-BRAKE
43056003
€ 16.50
43078
430781063
ref: 43078
RESERVOIR
430781063
€ 46.50
49044
490441058
ref: 49044
PUMP-WATER
490441058
€ 259.00
49054
490541051
ref: 49054
THERMOSTAT
490541051
€ 44.50
49085
490851053
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
59502
595021056
ref: 59502
FAN-ASSY
595021056
€ 625.50
92002
920021392
ref: 92002
BOLT,6X22
920021392
€ 3.00
92009
920091258
ref: 92009
SCREW
920091258
€ 3.00
92009A
920091261
ref: 92009A
SCREW,TAPPING,6MM
920091261
€ 2.00
92009B
920091288
ref: 92009B
SCREW,6X14
920091288
€ 2.00
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92015A
920151582
ref: 92015A
NUT
€ 4.50
92022
92022304
ref: 92022
WASHER,PLAIN
92022304
€ 2.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
920271134
€ 7.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92037A
920371669
ref: 92037A
CLAMP,COOLING HOSE
920371669
€ 12.00
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
92055A
920551266
ref: 92055A
RING-O,33.8MM
920551266
€ 12.00
92055B
920551271
ref: 92055B
RING-O,WATER PUMP
920551271
€ 7.00
92055C
920551282
ref: 92055C
RING-O
920551282
€ 3.00
92066
920661183
ref: 92066
PLUG,SENSOR WATER
920661183
€ 38.00
92072
920721197
ref: 92072
BAND
920721197
€ 5.00
130
130J0610
ref: 130
BOLT-FLANGED
130J0610
€ 1.50
132
132W0612
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132W0640
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132W0825
ref: 132B
BOLT-FLANGED-SMALL
132W0825
€ 2.50
132C
132Y0616
ref: 132C
BOLT-FLANGED-SMALL
132Y0616
€ 2.50
132D
132Y0620
ref: 132D
BOLT-FLANGED-SMALL
132Y0620
€ 2.50
157
157J0616
ref: 157
BOLT-WSP
€ 1.00
671
671B2525
ref: 671
O RING,25MM
671B2525
€ 3.00
92075
920751446
ref: 92075
DAMPER,SIDE COVER
920751446
€ 3.00
92160
921601007
ref: 92160
DAMPER
921601007
€ 3.50
