COWLING LOWERS(1/4)

ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP

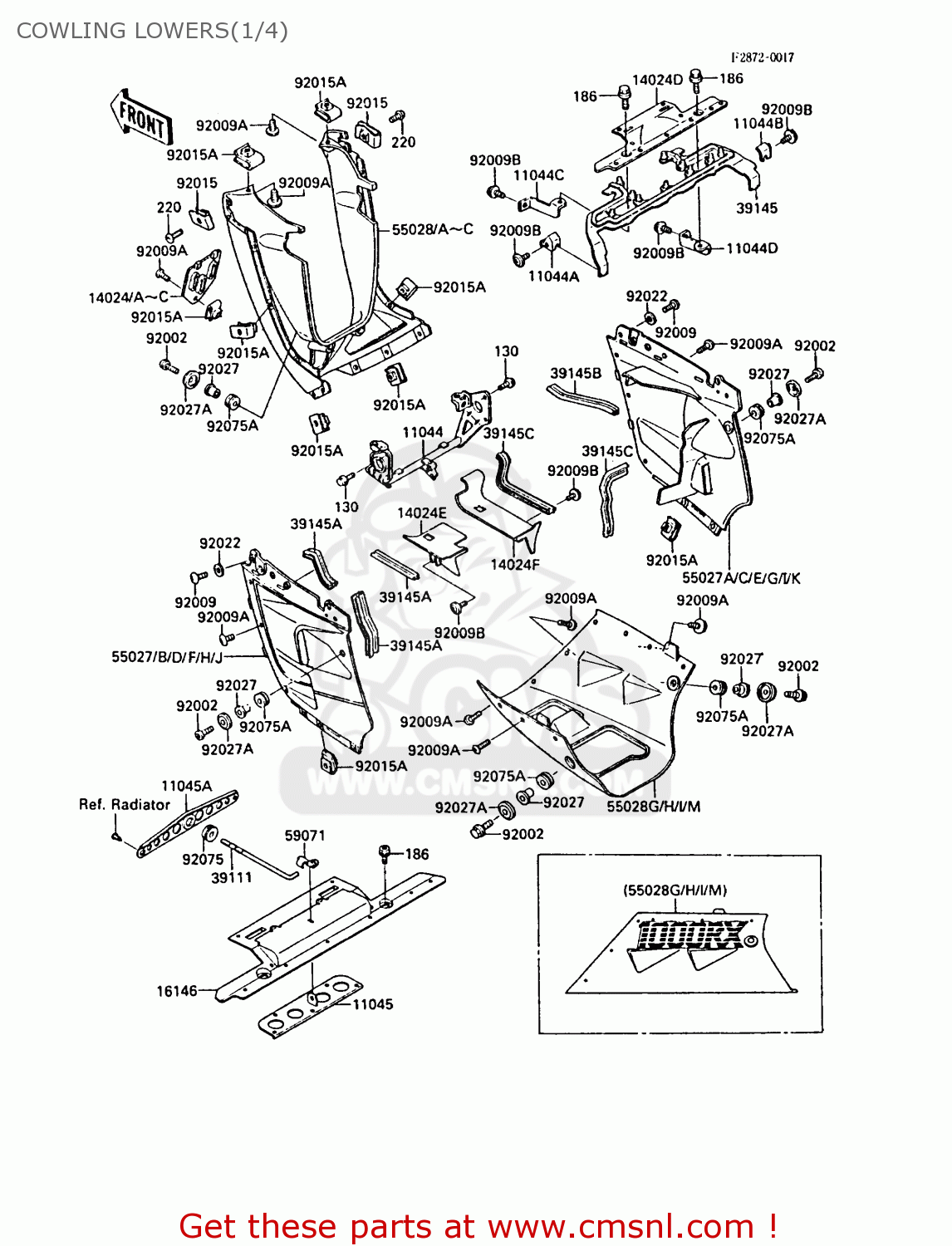

Cowling lowers(1/4) diagram ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP

COWLING LOWERS(1/4) ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP
COWLING LOWERS(1/4) ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP
COWLING LOWERS(1/4) ZX1000A2 GPZ1000RX 1987 EUROPE FG IT NR SD SP
prices are in EUR
ref
part #
description
quantity
11044
110441198
ref: 11044
BRACKET,OIL COOLER
110441198
€ 74.00
11044A
110441441
ref: 11044A
BRACKET,CENTER COVER,
€ 4.50
11044B
110441442
ref: 11044B
BRACKET,CENTER COVER,
110441442
€ 5.00
11044C
110441580
ref: 11044C
BRACKET,COWLING,SIDE,
€ 6.50
11044D
110441581
ref: 11044D
BRACKET,COWLING,SIDE,
€ 6.00
11045
110451812
ref: 11045
FRUK
BRACKET,CENTER COVER
€ 12.50
11045A
110451813
ref: 11045A
FRUK
BRACKET,CENTER COVER
110451813
€ 8.50
14024
140241068F2
ref: 14024
EUST
COVER,RESERVE TANK,G.
140241068F2
€ 34.50
14024A
140241068R1
ref: 14024A
AREUFRGRITNRSD
COVER,RESERVE TANK,P.
€ 34.50
14024B
140241068T2
ref: 14024B
AREUFGFRGRNRSTUK
COVER,RESERVE TANK,P.
140241068T2
€ 34.50
14024C
1402410681A
ref: 14024C
EUFGFRGRITNRSDSPSTUK
COVER,RESERVE TANK,M.
1402410681A
€ 34.50
14024D
140241109
ref: 14024D
AREUFGGRITNRSDSPST
COVER,CNT
140241109
€ 34.00
14024E
140241114
ref: 14024E
COVER,LOWER COWLING I
140241114
€ 17.50
14024F
140241115
ref: 14024F
COVER,LOWER COWLING I
140241115
€ 27.50
16146
161461087
ref: 16146
FRUK
COVER-ASSY,CNT
161461087
€ 49.00
39111
391111078
ref: 39111
FRUK
ROD-TIE
391111078
€ 4.50
39145
391451054
ref: 39145
TRIM-SEAL,CENTER COVE
391451054
€ 38.50
39145A
391451055
ref: 39145A
TRIM-SEAL,L=175
391451055
€ 8.50
39145B
391451056
ref: 39145B
TRIM-SEAL,SIDE COWLIN
391451056
€ 10.50
39145C
391451057
ref: 39145C
TRIM-SEAL,SIDE COWLIN
€ 9.50
55027
550275018T4
ref: 55027
AR
COWLING-ASSY,SIDE,LH,
€ 385.50
55027A
550275019T4
ref: 55027A
AR
COWLING-ASSY,SIDE,RH,
€ 385.50
55027B
550275020T3
ref: 55027B
EUFGFRGRITNRSDSPSTUK
COWLING-ASSY,SIDE,LH,
550275020T3
€ 385.50
55027C
550275021T3
ref: 55027C
EUFGFRGRITNRSDSPSTUK
COWLING-ASSY,SIDE,RH,
550275021T3
€ 385.50
55027D
550275022T4
ref: 55027D
EUFGFRGRNRSTUK
COWLING-ASSY,SIDE,LH,
550275022T4
€ 385.50
55027E
550275023T4
ref: 55027E
EUFGFRGRNRSTUK
COWLING-ASSY,SIDE,RH,
550275023T4
€ 385.50
55027F
550275026L8
ref: 55027F
EUST
COWLING-ASSY,SIDE,LH,
€ 385.50
55027G
550275027L8
ref: 55027G
EUST
COWLING-ASSY,SIDE,RH,
€ 385.50
55027H
550275029W5
ref: 55027H
AR
COWLING-ASSY,SIDE,LH,
€ 328.00
55027I
550275030W5
ref: 55027I
AR
COWLING-ASSY,SIDE,RH,
€ 365.50
55027J
550275031W5
ref: 55027J
EUFRGRITNRSD
COWLING-ASSY,SIDE,LH,
€ 365.50
55027K
550275032W5
ref: 55027K
EUFRGRITNRSD
COWLING-ASSY,SIDE,RH,
€ 328.00
55028
550281090F2
ref: 55028
EUST
COWLING,FR,G.SILVER
€ 134.50
55028A
550281090R1
ref: 55028A
AREUFRGRITNRSD
COWLING,FR,P.A.WHITE
€ 124.50
55028B
550281090T2
ref: 55028B
AREUFGFRGRNRSTUK
COWLING,FR,P.C.GRAY
550281090T2
€ 134.50
55028C
5502810901A
ref: 55028C
EUFGFRGRITNRSDSPSTUK
COWLING,FR,M.BLACK
€ 134.50
55028G
5502851781A
ref: 55028G
EUFGFRGRITNRSDSPSTUK
COWLING,LWR,M.BLACK
5502851781A
€ 311.50
55028H
550285179T2
ref: 55028H
AREUFGFRGRNRSTUK
COWLING,LWR,P.C.GRAY
550285179T2
€ 311.50
55028I
550285189F2
ref: 55028I
EUST
COWLING,LWR,G.SILVER
€ 205.50
55028M
550285306R1
ref: 55028M
AREUFRGRITNRSD
COWLING,LWR,P.A.WHITE
€ 268.50
130
130G0812
ref: 130
BOLT-FLANGED
130G0812
€ 0.50
186
186C0618
ref: 186
BOLT-UPSET-WP
186C0618
€ 2.50
220
220B0416
ref: 220
SCREW-PAN-CROS
220B0416
€ 2.00
59071
590711104
ref: 59071
FRUK
JOINT
590711104
€ 3.50
92002
920021514
ref: 92002
BOLT,SOCKET,6X18,BLAC
920021514
€ 4.00
92009
920091186
ref: 92009
SCREW,SEAT COVER
920091186
€ 2.50
92009A
920091383
ref: 92009A
SCREW,5X14
920091383
€ 2.50
92009B
920091402
ref: 92009B
SCREW,6X10
920091402
€ 1.50
92015
920151558
ref: 92015
NUT,4MM
920151558
€ 4.50
92015A
920151710
ref: 92015A
NUT
920151710
€ 4.00
92022
92022285
ref: 92022
WASHER,5.2X18X1.2
92022285
€ 4.50
92027
920271795
ref: 92027
COLLAR,L=9.1,WHITE
920271795
€ 4.00
92027A
920271886
ref: 92027A
COLLAR,L=6.5,WHITE
920271886
€ 8.00
92075
920751629
ref: 92075
FRUK
DAMPER,SEAT COVER KIT
920751629
€ 3.00
92075A
920751634
ref: 92075A
DAMPER
920751634
€ 3.00
