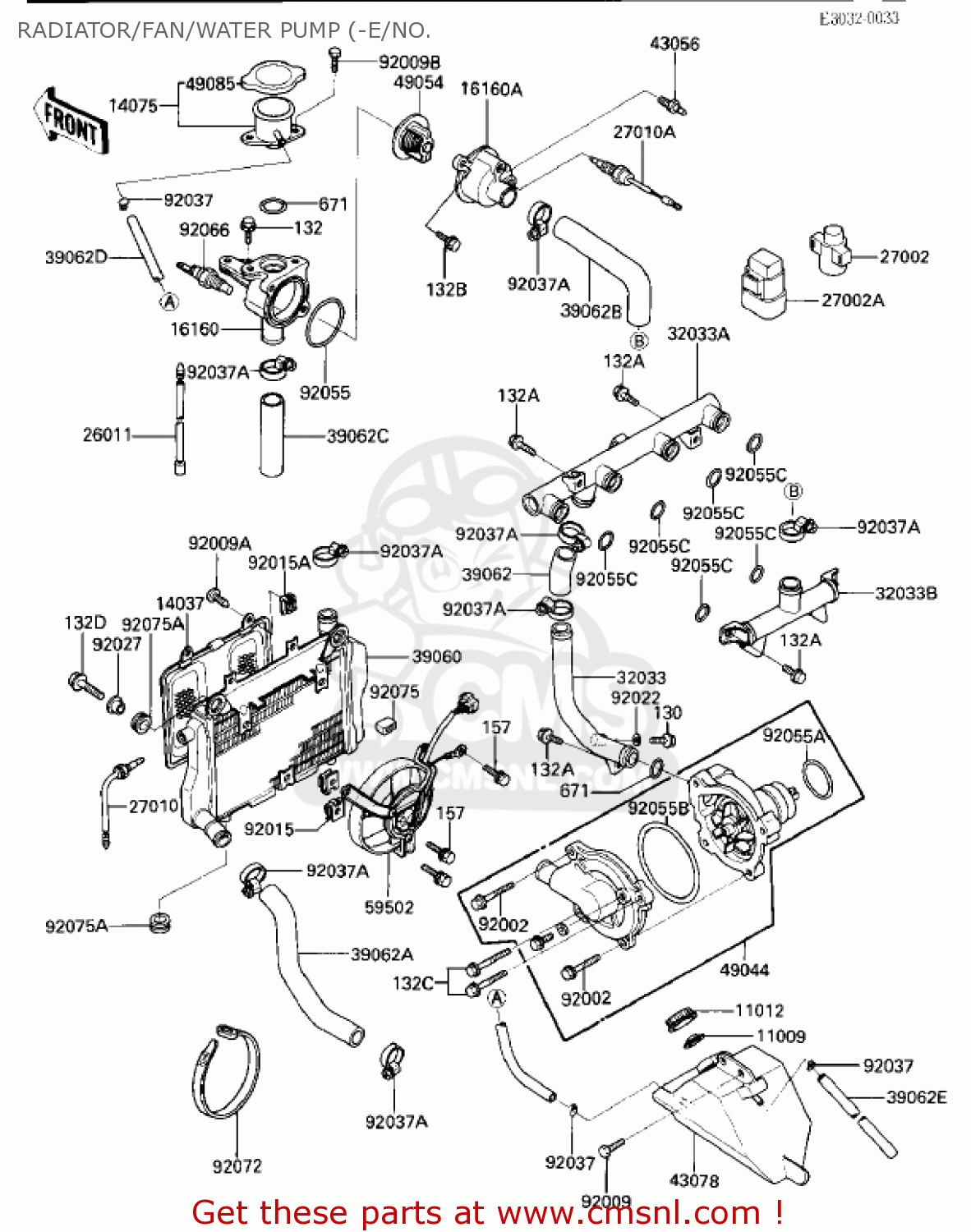

RADIATOR/FAN/WATER PUMP (-E/NO.

ref

part #

description

quantity

11009

110091145
ref: 11009

GASKET,RESERVOIR TANK (NAS)

€ 1.00

11012

110121084
ref: 11012

CAP

€ 1.50

14037

140371070
ref: 14037

SCREEN,RADIATOR

€ 66.00

14075

140751062
ref: 14075

CAP-ASSY,RADIATOR

€ 89.50

16160

161601100
ref: 16160

BODY

€ 41.00

16160A

161601101
ref: 16160A

BODY

€ 27.00

26011

260111335
ref: 26011

WIRE-LEAD,OIL TEMPERA

€ 7.00

27002

270021054
ref: 27002

RELAY-ASSY

€ 31.50

27002A

270021055
ref: 27002A

RELAY-ASSY

€ 53.00

27010

270101180
ref: 27010

SWITCH,FAN

€ 104.50

27010A

270101199
ref: 27010A

SWITCH,WARNING

€ 114.00

32033

391921028
ref: 32033

PIPE-WATER

€ 98.00

32033A

320331262
ref: 32033A

PIPE

€ 124.50

32033B

320331846
ref: 32033B

PIPE

€ 69.00

39060

390601063
ref: 39060

RADIATOR

€ 728.00

39062

390621072
ref: 39062

HOSE-COOLING

€ 14.00

39062A

390621117
ref: 39062A

HOSE-COOLING

€ 44.00

39062B

390621118
ref: 39062B

HOSE-COOLING

€ 48.50

39062C

390621119
ref: 39062C

HOSE-COOLING

€ 9.50

39062D

390621121
ref: 39062D

HOSE-COOLING,5.5X10.5

€ 16.50

39062E

390621144
ref: 39062E

HOSE-COOLING,5.5X10.5

€ 25.00

43056

43056003
ref: 43056

BREATHER-BRAKE

€ 16.50

43078

430781063
ref: 43078

RESERVOIR

€ 46.50

49044

490441058
ref: 49044

PUMP-WATER

€ 259.00

49054

490541051
ref: 49054

THERMOSTAT

€ 44.50

49085

490851053
ref: 49085

CAP-ASSY-PRESSURE

€ 23.50

59502

595021056
ref: 59502

FAN-ASSY

€ 625.50

92002

920021392
ref: 92002

BOLT,6X22

€ 3.00

92009

920091258
ref: 92009

SCREW

€ 3.00

92009A

920091261
ref: 92009A

SCREW,TAPPING,6MM

€ 2.00

92009B

920091288
ref: 92009B

SCREW,6X14

€ 2.00

92015

920151487
ref: 92015

NUT

€ 3.00

92015A

920151582
ref: 92015A

NUT

€ 4.50

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92027

920271134
ref: 92027

COLLAR,FUEL TANK FITT

€ 7.00

92037

92037147
ref: 92037

CLAMP,CHAIN OILER

€ 4.50

92037A

920371985
ref: 92037A

CLAMP,COOLING HOSE

€ 7.50

92055

92055112
ref: 92055

O RING, 53.5 M/M

€ 4.00

92055A

920551266
ref: 92055A

RING-O,33.8MM

€ 12.00

92055B

920551271
ref: 92055B

RING-O,WATER PUMP

€ 7.00

92055C

920551282
ref: 92055C

RING-O

€ 3.00

92066

920661183
ref: 92066

PLUG,SENSOR WATER

€ 38.00

92072

920721197
ref: 92072

BAND

€ 5.00

92075

920751446
ref: 92075

DAMPER,SIDE COVER

€ 3.00

92075A

921601007
ref: 92075A

DAMPER

€ 3.50

130

130J0610
ref: 130

BOLT-FLANGED

€ 1.50

132

132J0616
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

132A

132J0612
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

132B

132J0620
ref: 132B

BOLT-FLANGED-SMALL

€ 2.00

132C

132J0640
ref: 132C

BOLT-FLANGED-SMALL

€ 3.00

132D

132J0825
ref: 132D

BOLT-FLANGED-SMALL

€ 2.50

157

157J0616
ref: 157

BOLT-WSP

€ 1.00

671

671B2525
ref: 671

O RING,25MM

€ 3.00
