GEAR CHANGE MECHANISM

ZX1000A1 NINJA 1000R 1986 USA CALIFORNIA CANADA

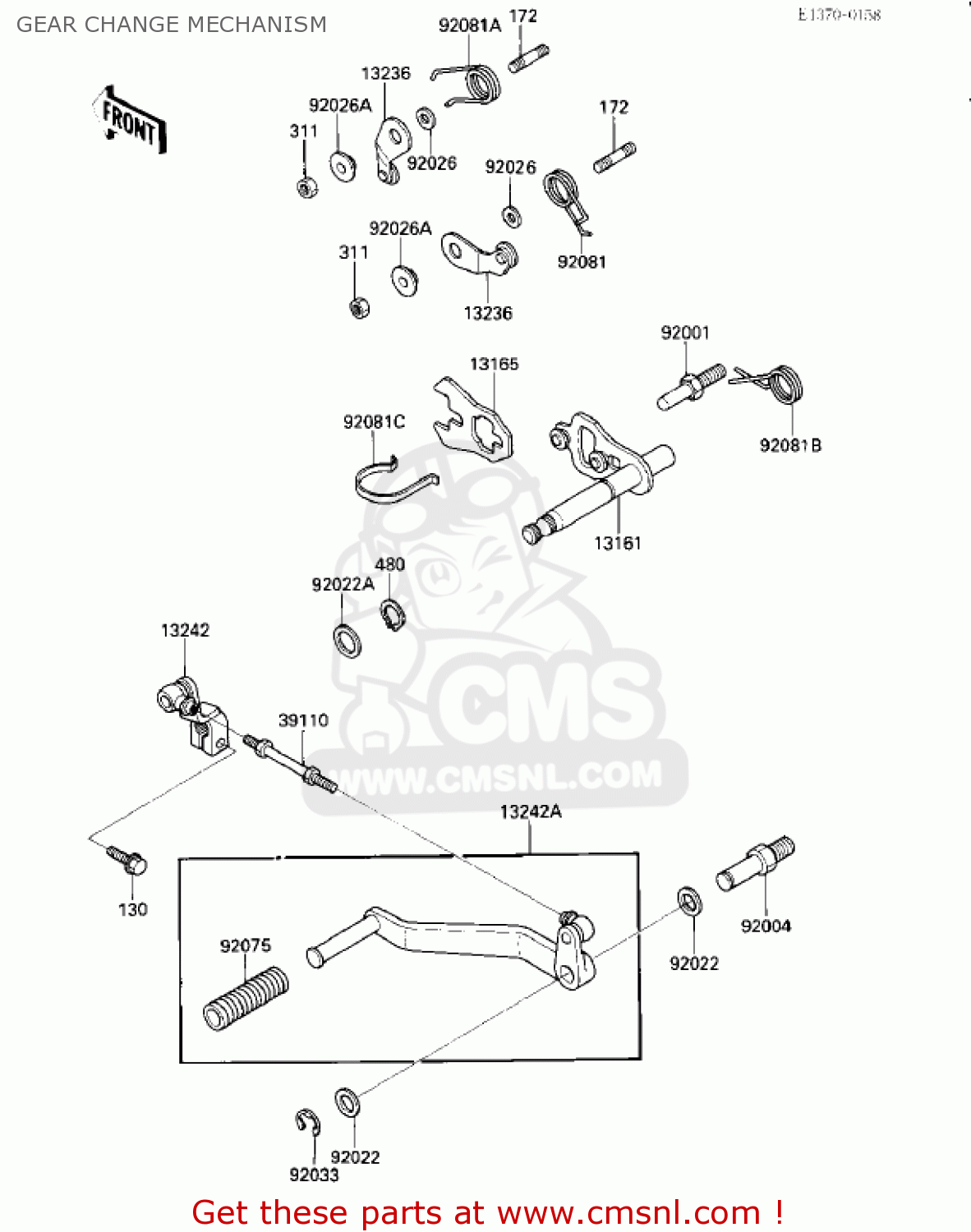

Gear change mechanism diagram ZX1000A1 NINJA 1000R 1986 USA CALIFORNIA CANADA

GEAR CHANGE MECHANISM ZX1000A1 NINJA 1000R 1986 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM ZX1000A1 NINJA 1000R 1986 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM ZX1000A1 NINJA 1000R 1986 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13161
131611123
ref: 13161
LEVER-COMP-CHANGE SHA
131611123
€ 81.50
13165
131651120
ref: 13165
PAWL
131651120
€ 9.50
13236
132361103
ref: 13236
LEVER-COMP,GEAR POSIT
132361103
€ 13.00
13242
132421195
ref: 13242
LEVER-ASSY-CHANGE
132421195
€ 22.00
13242A
132421196
ref: 13242A
LEVER-ASSY-CHANGE, PE
132421196
€ 41.50
39110
391101008
ref: 39110
ROD-ASSY-TIE,L=90,BLA
391101008
€ 7.50
92001
920011401
ref: 92001
BOLT,RETURN SPRING
920011401
€ 3.00
92004
920041164
ref: 92004
STUD,CHANGE PEDAL,PIV
920041164
€ 10.00
92022
920221593
ref: 92022
WASHER,12.5X22X1.2
920221593
€ 3.00
92022A
920221772
ref: 92022A
WASHER
920221772
€ 3.00
92026
92026094
ref: 92026
WASHER,THRUST
92026094
€ 6.50
92026A
920261217
ref: 92026A
SPACER
920261217
€ 3.50
92033
920331178
ref: 92033
RING-SNAP,TYPE-E,10MM
920331178
€ 2.50
92075
13157004
ref: 92075
RUBBER-CHANGE PEDAL
13157004
€ 4.00
92081
920811645
ref: 92081
SPRING
920811645
€ 9.00
92081A
920811742
ref: 92081A
SPRING
920811742
€ 7.00
92081B
920811750
ref: 92081B
SPRING,CHANGE PEDAL R
920811750
€ 7.50
92081C
920811829
ref: 92081C
SPRING,CHANGE LEVER
920811829
€ 6.00
130
130S0620
ref: 130
BOLT-FLANGED,6X20,BLA
130S0620
€ 2.50
172
172G0614
ref: 172
STUD,6X14
172G0614
€ 1.00
311
311G0600
ref: 311
NUT,6M/M
311G0600
€ 0.50
480
480J1300
ref: 480
CIRCLIP-TYPE-C,13MM
480J1300
€ 2.50
