CLUTCH

ZX1000A1 NINJA 1000R 1986 USA CALIFORNIA CANADA

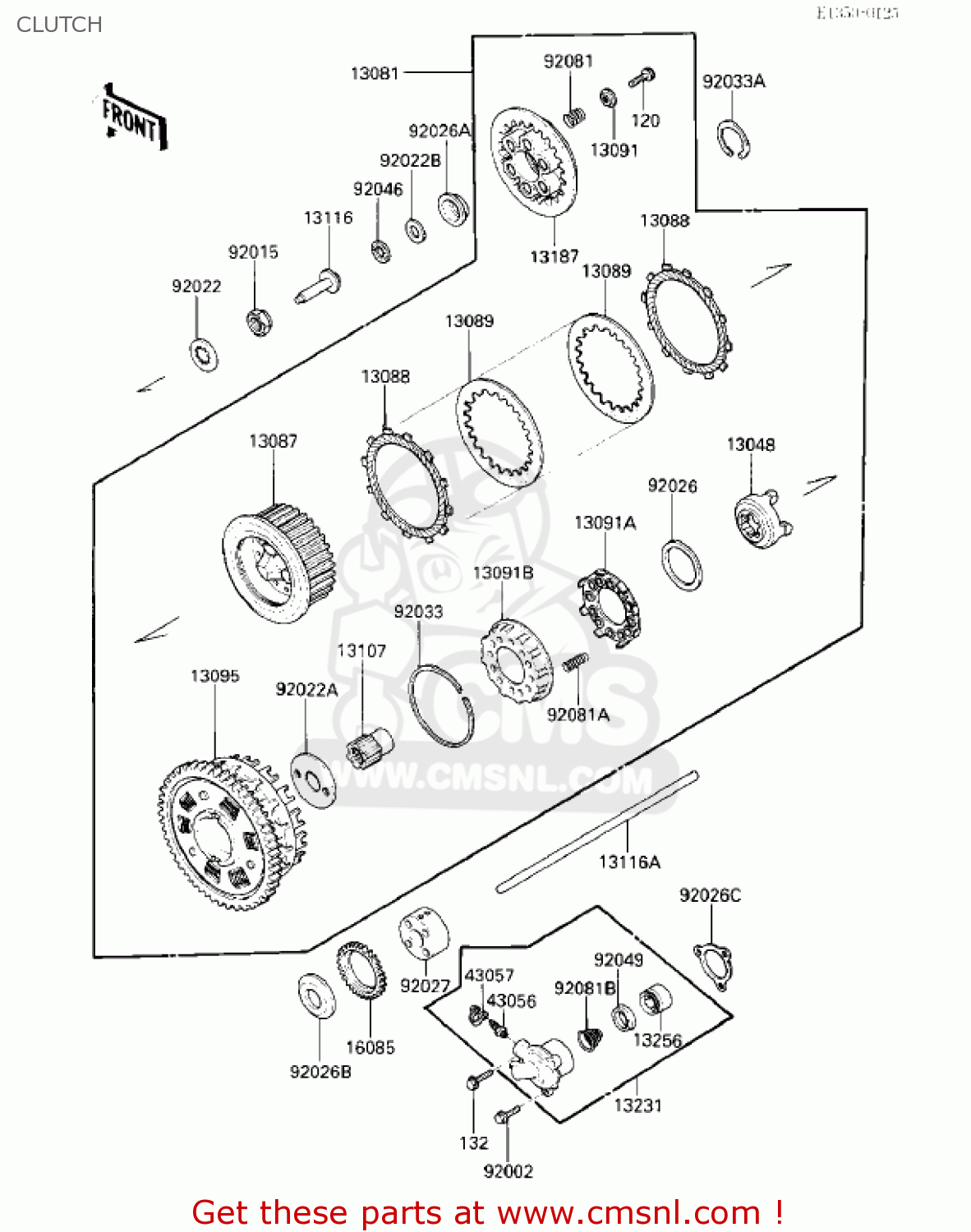

Clutch diagram ZX1000A1 NINJA 1000R 1986 USA CALIFORNIA CANADA

CLUTCH ZX1000A1 NINJA 1000R 1986 USA CALIFORNIA CANADA
CLUTCH ZX1000A1 NINJA 1000R 1986 USA CALIFORNIA CANADA
CLUTCH ZX1000A1 NINJA 1000R 1986 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13048
130481007
ref: 13048
CAM-DAMPER
€ 61.50
13081
130811208
ref: 13081
CLUTCH-ASSY
€ 530.50
13087
130871009
ref: 13087
HUB-CLUTCH
130871009
€ 155.50
13088
130881051
ref: 13088
PLATE-FRICTION (NAS)
130881051
€ 14.00
13089
130891004
ref: 13089
PLATE,CLUTCH STEEL (NAS)
130891004
€ 6.50
13091
130911041
ref: 13091
HOLDER CLUTCH SPRING
130911041
€ 8.50
13091A
130911042
ref: 13091A
HOLDER,DAMPER SPRING,
130911042
€ 16.50
13091B
130911043
ref: 13091B
HOLDER,DAMPER SPRING,
€ 16.50
13095
130951146
ref: 13095
HOUSING-COMP-CLUTCH
130951146
€ 368.50
13107
131071024
ref: 13107
SHAFT,CLUTCH
€ 60.50
13116
131161102
ref: 13116
ROD-PUSH,CLUTCH
131161102
€ 26.50
13116A
131161115
ref: 13116A
ROD-PUSH,CLUTCH
131161115
€ 15.50
13187
131871004
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
131871004
€ 49.00
13231
132311066
ref: 13231
RELEASE-ASSY-CLUTCH
132311066
€ 124.50
13256
132561051
ref: 13256
PISTON,CLUTCH RELEASE
132561051
€ 38.50
16085
160851108
ref: 16085
GEAR,OIL PUMP
160851108
€ 117.00
43056
430561052
ref: 43056
BREATHER-BRAKE
430561052
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
430571001
€ 3.00
92002
920021613
ref: 92002
BOLT
920021613
€ 1.50
92015
920151555
ref: 92015
NUT,20MM
920151555
€ 9.00
92022
920221114
ref: 92022
WASHER,TOOTHED,25X40X
920221114
€ 10.50
92022A
920221221
ref: 92022A
WASHER,CLUTCH THRUST
920221221
€ 10.50
92022B
920221463
ref: 92022B
WASHER,15.1X29X1.0
920221463
€ 3.00
92026
920261043
ref: 92026
SPACER,3.5X59X70
920261043
€ 19.00
92026A
920261202
ref: 92026A
SPACER,CLUTCH
920261202
€ 31.50
92026B
920265001
ref: 92026B
SPACER
€ 18.00
92026C
920261263
ref: 92026C
SPACER,CLUTCH RELEASE
920261263
€ 11.50
92027
920271710
ref: 92027
COLLAR
920271710
€ 61.50
92033
920331029
ref: 92033
RING-SNAP
920331029
€ 9.50
92033A
920331177
ref: 92033A
RING-SNAP,50MM
920331177
€ 6.00
92046
920461052
ref: 92046
BEARING-NEEDLE,AXK110
920461052
€ 14.00
92049
920491165
ref: 92049
SEAL-OIL,PISTON
920491165
€ 13.00
92081
920811114
ref: 92081
SPRING,CLUTCH
920811114
€ 4.50
92081A
920811115
ref: 92081A
SPRING,CLUTCH DAMPER
920811115
€ 4.50
92081B
920811644
ref: 92081B
SPRING,CLUTCH RELEASE
920811644
€ 5.50
120
120S0616
ref: 120
BOLT-SOCKET,6X16
120S0616
€ 1.00
132
132J0680
ref: 132
BOLT-FLANGED-SMALL
132J0680
€ 4.00
