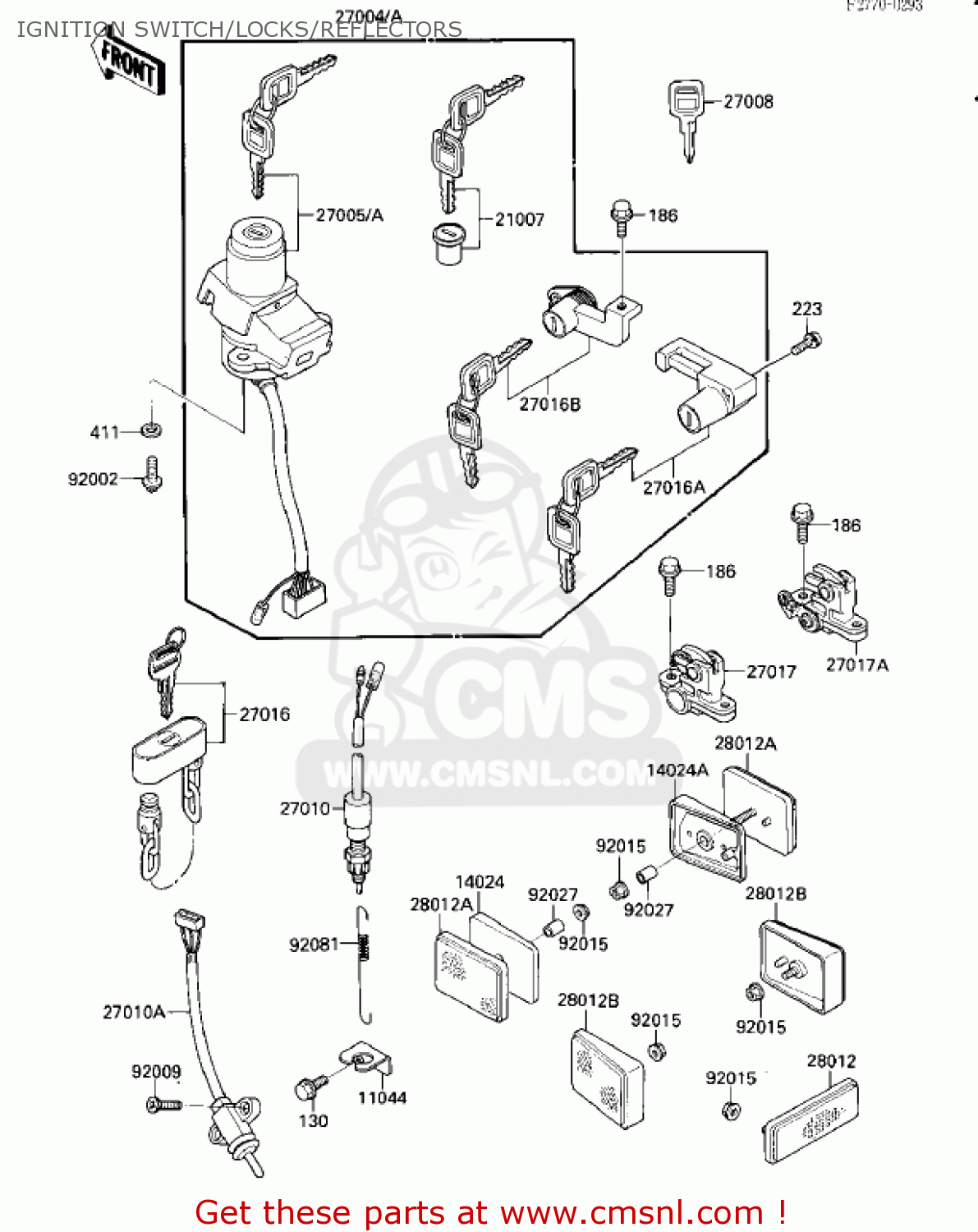

IGNITION SWITCH/LOCKS/REFLECTORS

ref

part #

description

quantity

11044

110441210
ref: 11044

BRACKET,BRAKE SWITCH,

€ 3.50

14024

140241098
ref: 14024

COVER,REFLECTOR,FR,LH

€ 8.00

14024A

140241099
ref: 14024A

COVER,REFLECTOR,FR,RH

€ 8.50

21007

210075008
ref: 21007

ROTOR,TANK CAP

€ 65.50

27004

270045309
ref: 27004

SWITCH ASSEMBLY

€ 266.50

27004A

270045309
ref: 27004A

SWITCH ASSEMBLY

€ 266.50

27005

270055070
ref: 27005

IGNITION SWITCH ASSEMBLY

€ 152.50

27005A

270055070
ref: 27005A

IGNITION SWITCH ASSEMBLY

€ 152.50

27008

270081103
ref: 27008
(OPTION)

KEY-LOCK,BLANK

€ 13.50

27010

270101019
ref: 27010

SWITCH,REAR BRAKE

€ 23.00

27010A

270101193
ref: 27010A

SWITCH,SIDE STAND

€ 38.00

27016

270161051
ref: 27016

LOCK-ASSY,WHEEL

€ 104.50

27016A

270165070
ref: 27016A

LOCK-ASSY,HELMET

€ 43.00

27016B

270165095
ref: 27016B

LOCK-ASSY,SEAT,TAIL

€ 66.50

27017

270171112
ref: 27017

LOCK,SEAT,LH

€ 61.50

27017A

270171113
ref: 27017A

LOCK,SEAT,RH

€ 61.50

28012

280121005
ref: 28012

REFLECTOR-REFLEX,RR

€ 16.50

28012A

280121052
ref: 28012A

REFLECTOR-REFLEX,FR

€ 17.50

28012B

280121056
ref: 28012B

REFLECTOR,REAR,REFLEX

€ 13.50

92002

920021333
ref: 92002

BOLT

€ 1.50

92009

920091359
ref: 92009

SCREW

€ 2.50

92015

920151259
ref: 92015

NUT,FLANGED,5MM

€ 2.50

92027

920271923
ref: 92027

COLLAR,5.6X8X8.8

€ 3.50

92081

27011017
ref: 92081

SPRING,BRK LIGHT SW

€ 6.50

130

130J0608
ref: 130

BOLT-FLANGED,6X8

€ 2.50

186

186C0612
ref: 186

BOLT-UPSET-WP

€ 0.50

223

223B0512
ref: 223

SCREW-PAN-WS-CROS

€ 2.50

411

410B0600
ref: 411

WASHER-PLAIN-SMALL,6M

€ 0.50
