CRANKCASE BOLT PATTERN

ZX1000A1 NINJA 1000R 1986 USA CALIFORNIA CANADA

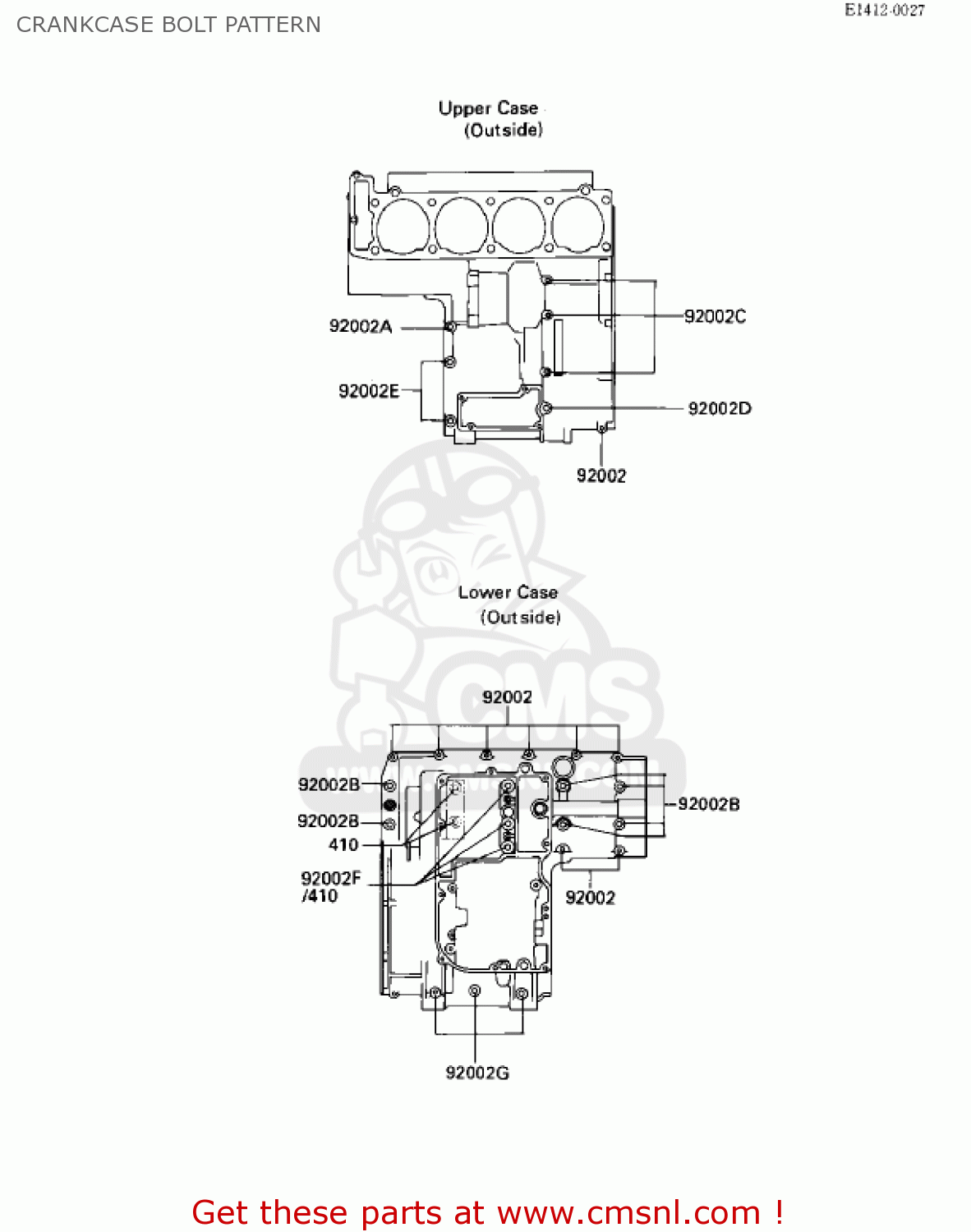

Crankcase bolt pattern diagram ZX1000A1 NINJA 1000R 1986 USA CALIFORNIA CANADA

CRANKCASE BOLT PATTERN ZX1000A1 NINJA 1000R 1986 USA CALIFORNIA CANADA

CRANKCASE BOLT PATTERN ZX1000A1 NINJA 1000R 1986 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

92002

920011899
ref: 92002

BOLT,6X38

€ 2.50

92002A

920021054
ref: 92002A

BOLT,6X55

€ 3.00

92002B

920021057
ref: 92002B

BOLT,8X90

€ 6.50

92002C

921501140
ref: 92002C

BOLT

€ 4.00

92002D

920021306
ref: 92002D

BOLT

€ 3.50

92002E

920021308
ref: 92002E

BOLT

€ 5.50

92002F

921501164
ref: 92002F

BOLT,8X140

€ 6.50

92002G

920021654
ref: 92002G

BOLT

€ 4.50

410

410B0800
ref: 410

WASHER-PLAIN-SMALL,8M

€ 0.50
