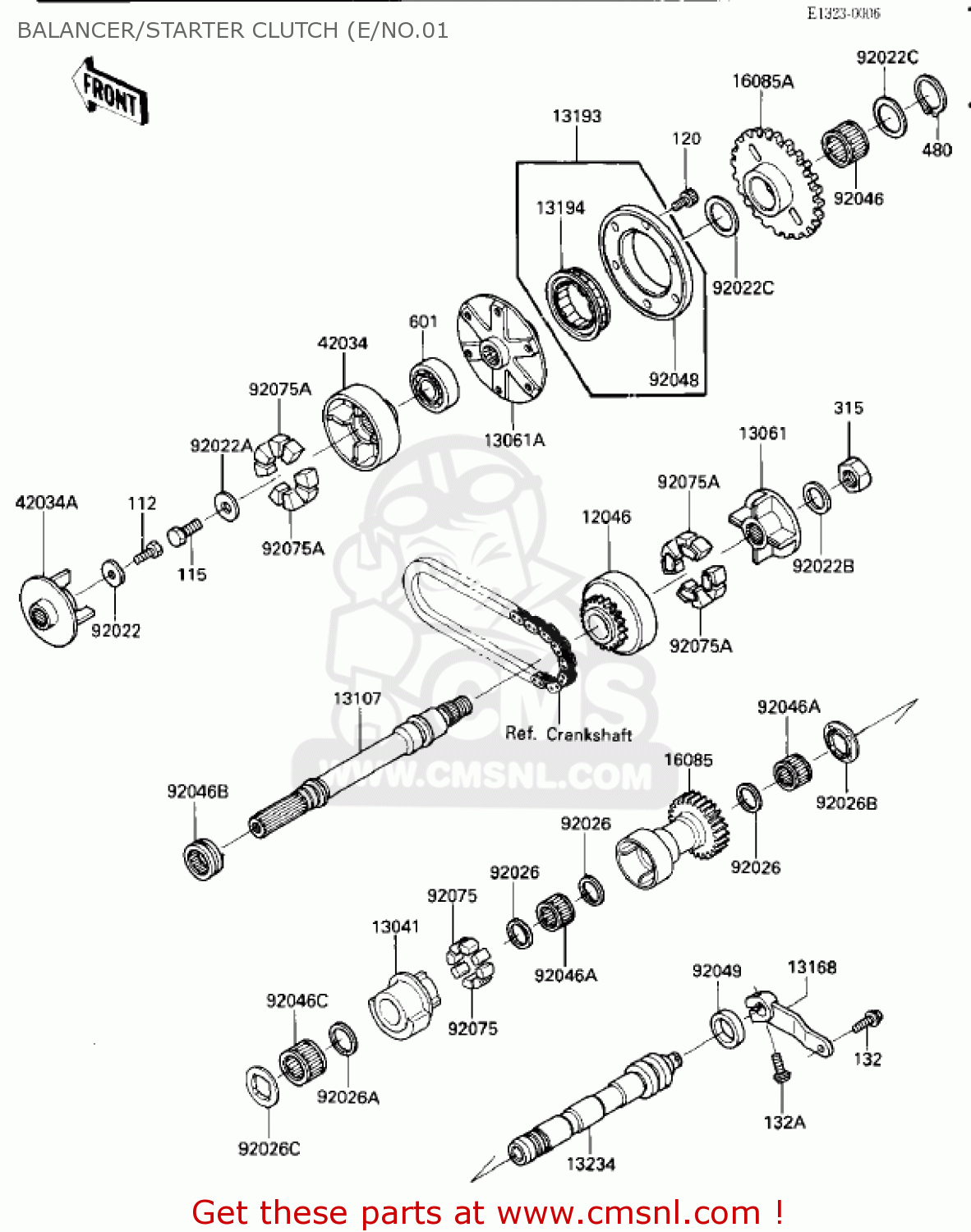

BALANCER/STARTER CLUTCH (E/NO.01

ref

part #

description

quantity

12046

120461068
ref: 12046

SPROCKET,GENERATOR

€ 76.00

13041

130411064
ref: 13041

BALANCER

€ 122.00

13061

130611111
ref: 13061

BOSS,SPROCKET

€ 45.00

13061A

130611191
ref: 13061A

BOSS,COUPLING

€ 76.00

13107

131071108
ref: 13107

SHAFT

€ 175.50

13168

131681236
ref: 13168

LEVER,BALANCER

€ 20.00

13194

131941067
ref: 13194

CLUTCH-ONEWAY

€ 81.00

13234

132341052
ref: 13234

SHAFT-COMP,BALANCER

€ 179.00

16085

160851139
ref: 16085

GEAR,BALANCER

€ 141.50

16085A

160851173
ref: 16085A

GEAR,ONEWAY CLUTCH

€ 100.00

42034

420341055
ref: 42034

COUPLING

€ 64.00

42034A

420341056
ref: 42034A

COUPLING

€ 58.00

92022

920221517
ref: 92022

WASHER,6X19.5X2

€ 1.50

92022A

920221518
ref: 92022A

WASHER,8X22X3

€ 2.50

92022B

920221519
ref: 92022B

WASHER,16X26X2

€ 3.00

92022C

92022225
ref: 92022C

WASHER-THRUST

€ 3.50

92026

920261213
ref: 92026

SPACER,21.3X24.3X1.5

€ 4.00

92026A

920261223
ref: 92026A

SPACER,21.3X26X1

€ 4.50

92026B

920261265
ref: 92026B

SPACER

€ 29.50

92026C

920261271
ref: 92026C

SPACER

€ 29.50

92046

920461022
ref: 92046

BEARING-NEEDLE,K25302

€ 24.50

92046A

920461105
ref: 92046A

BEARING-NEEDLE,K21X25

€ 23.50

92046B

920461109
ref: 92046B

BEARING-NEEDLE,RNA490

€ 48.50

92046C

920461155
ref: 92046C

BEARING-NEEDLE

€ 28.00

92048

920481065
ref: 92048

RACE,ONEWAY CLUTCH

€ 71.00

92049

920491174
ref: 92049

SEAL-OIL,S192705

€ 6.00

92075

920751709
ref: 92075

DAMPER,BALANCER

€ 3.50

92075A

920751790
ref: 92075A

DAMPER,COUPLING

€ 6.50

112

112G0616
ref: 112

BOLT UPSET,6X16

€ 1.00

115

115G0820
ref: 115

BOLT,8X20

€ 2.00

120

120P0612
ref: 120

BOLT,SOCKET,6X12

€ 1.00

132

132J0616
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

132A

132J0620
ref: 132A

BOLT-FLANGED-SMALL

€ 2.00

315

315G1600
ref: 315

NUT-HEX-FINE

€ 2.50

480

480J2500
ref: 480

CIRCLIP-TYPE-C,25MM

€ 1.00

601

601A6203
ref: 601

BEARING-BALL,#6203

€ 10.50

all assemblies
