THROTTLE
ZR750K6F Z750S 2006 USA CALIFORNIA CANADA

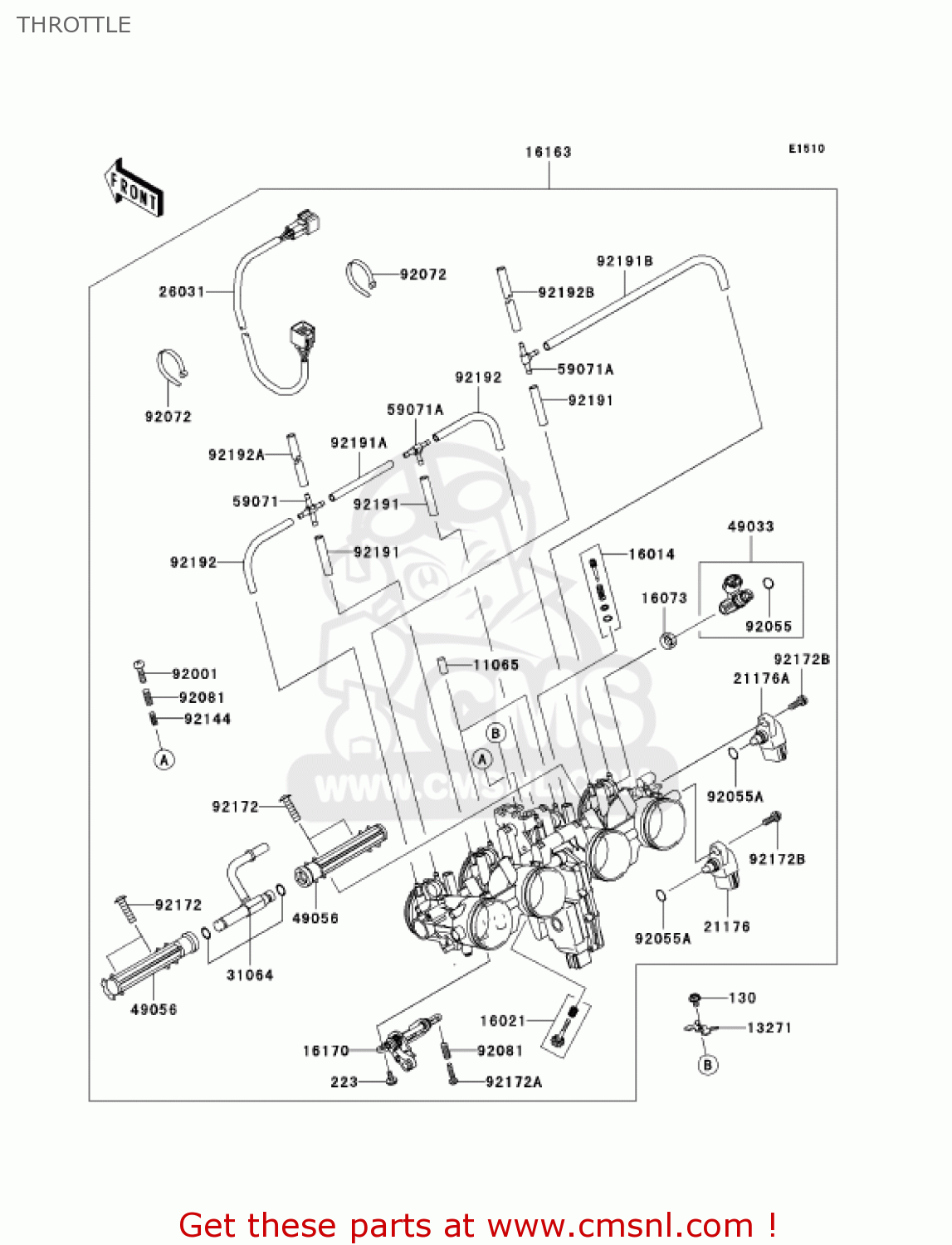

Throttle diagram ZR750K6F Z750S 2006 USA CALIFORNIA CANADA
THROTTLE ZR750K6F Z750S 2006 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130G0508
ref: 130
BOLT-FLANGED
€ 0.50
223
223D0410
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
11065
110650018
ref: 11065
CAP
€ 4.00
13271
132710056
ref: 13271
PLATE
€ 2.00
16014
160140002
ref: 16014
SCREW-PILOT AIR
€ 17.50
16021
160210002
ref: 16021
SCREW-THROTTLE STOP
€ 62.50
16073
160733707
ref: 16073
INSULATOR
€ 4.00
16163
161630065
ref: 16163
THROTTLE-ASSY
€ 2,687.50
16170
161700002
ref: 16170
LINK-ASSY
€ 194.50
21176
211760002
ref: 21176
SENSOR,TPS,MAIN
€ 188.00
21176A
211760003
ref: 21176A
SENSOR,MAIN
€ 191.50
26031
260310313
ref: 26031
HARNESS
€ 72.00
31064
310640005
ref: 31064
PIPE-COMP
€ 16.50
49033
490330005
ref: 49033
NOZZLE-INJECTION
€ 126.00
49056
490560001
ref: 49056
PIPE-INJECTION
€ 82.00
59071
590710014
ref: 59071
JOINT
€ 10.50
59071A
590713752
ref: 59071A
JOINT,3WAY,T
€ 6.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92055
920551622
ref: 92055
RING-O,INJECTION NOZZ
€ 1.50
92055A
920551671
ref: 92055A
RING-O,THROTTLE SENSO
€ 2.50
92072
920720012
ref: 92072
BAND,SUB-HARNESS
€ 3.00
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
€ 3.00
92144
921441451
ref: 92144
SPRING
€ 7.00
92172
921720064
ref: 92172
SCREW,PIPE INJECTION
€ 2.00
92172A
921720065
ref: 92172A
SCREW,THROTTLE SYNCRO
€ 2.00
92172B
921720080
ref: 92172B
SCREW
€ 3.00
92191
921910025
ref: 92191
TUBE
€ 1.50
92191A
921910036
ref: 92191A
TUBE,3X7X82
€ 2.50
92191B
921910038
ref: 92191B
TUBE,3X7X265
€ 7.50
92192
921920018
ref: 92192
TUBE,3X7X95
€ 2.50
92192A
921920019
ref: 92192A
TUBE,3X7X170
€ 9.00
92192B
921920062
ref: 92192B
TUBE,3X7X275
€ 5.50
