Genuine ZR Kawasaki Parts delivered quickly!


SWINGARM

ZR750K6F Z750S 2006 USA CALIFORNIA CANADA

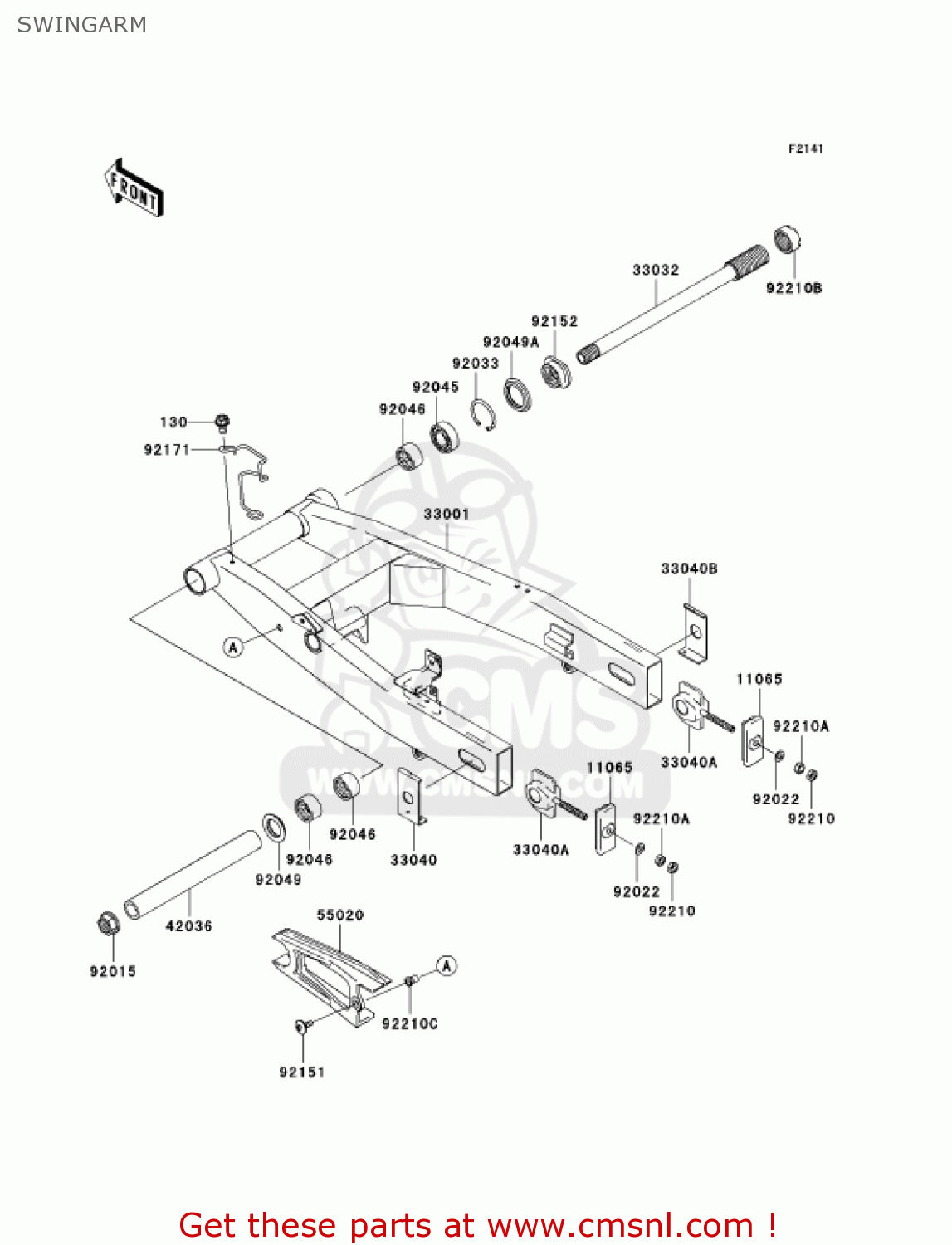

Swingarm diagram ZR750K6F Z750S 2006 USA CALIFORNIA CANADA

SWINGARM ZR750K6F Z750S 2006 USA CALIFORNIA CANADA
SWINGARM ZR750K6F Z750S 2006 USA CALIFORNIA CANADA
SWINGARM ZR750K6F Z750S 2006 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130L0612
ref: 130
BOLT-FLANGED
€ 1.50
11065
110650055
ref: 11065
CAP,CHAIN ADJUSTER
110650055
€ 26.50
33001
330010051
ref: 33001
ARM-COMP-SWING
€ 1,312.00
33032
330320005
ref: 33032
SHAFT-SWING ARM
€ 111.50
33040
330400009
ref: 33040
ADJUSTER-CHAIN,OUTER,
330400009
€ 12.00
33040A
330400012
ref: 33040A
ADJUSTER-CHAIN,INNER
330400012
€ 23.50
33040B
330401143
ref: 33040B
ADJUSTER-CHAIN,OUTER
330401143
€ 5.50
42036
420361264
ref: 42036
SLEEVE,SWING ARM,L=23
420361264
€ 50.50
55020
550200061
ref: 55020
GUARD,CHAIN
550200061
€ 55.00
92015
920151724
ref: 92015
NUT,FLANGED,20MM
920151724
€ 10.50
92022
920221582
ref: 92022
WASHER,8.5X16X1.2
€ 0.50
92033
920331041
ref: 92033
CIRCLIP,42MM
920331041
€ 4.00
92045
920450017
ref: 92045
BEARING-BALL,6004UL11
920450017
€ 14.00
92046
920460008
ref: 92046
BEARING-NEEDLE,7E-HVS
920460008
€ 21.00
92049
920491181
ref: 92049
SEAL-OIL
920491181
€ 7.50
92049A
920491380
ref: 92049A
SEAL-OIL,MHA 35 42 5.
920491380
€ 8.50
92151
921511149
ref: 92151
BOLT,SOCKET,6X18
921511149
€ 5.50
92152
921520136
ref: 92152
COLLAR,SWING ARM PIVO
€ 27.50
92171
921710141
ref: 92171
CLAMP
921710141
€ 5.50
92210
922100116
ref: 92210
NUT,8MM
922100116
€ 1.50
92210A
922100117
ref: 92210A
NUT,8MM
922100117
€ 1.50
92210B
922101347
ref: 92210B
NUT,28X1.0
922101347
€ 15.00
92210C
922101397
ref: 92210C
AUT,POP,6MM,L=15
922101397
€ 3.00
