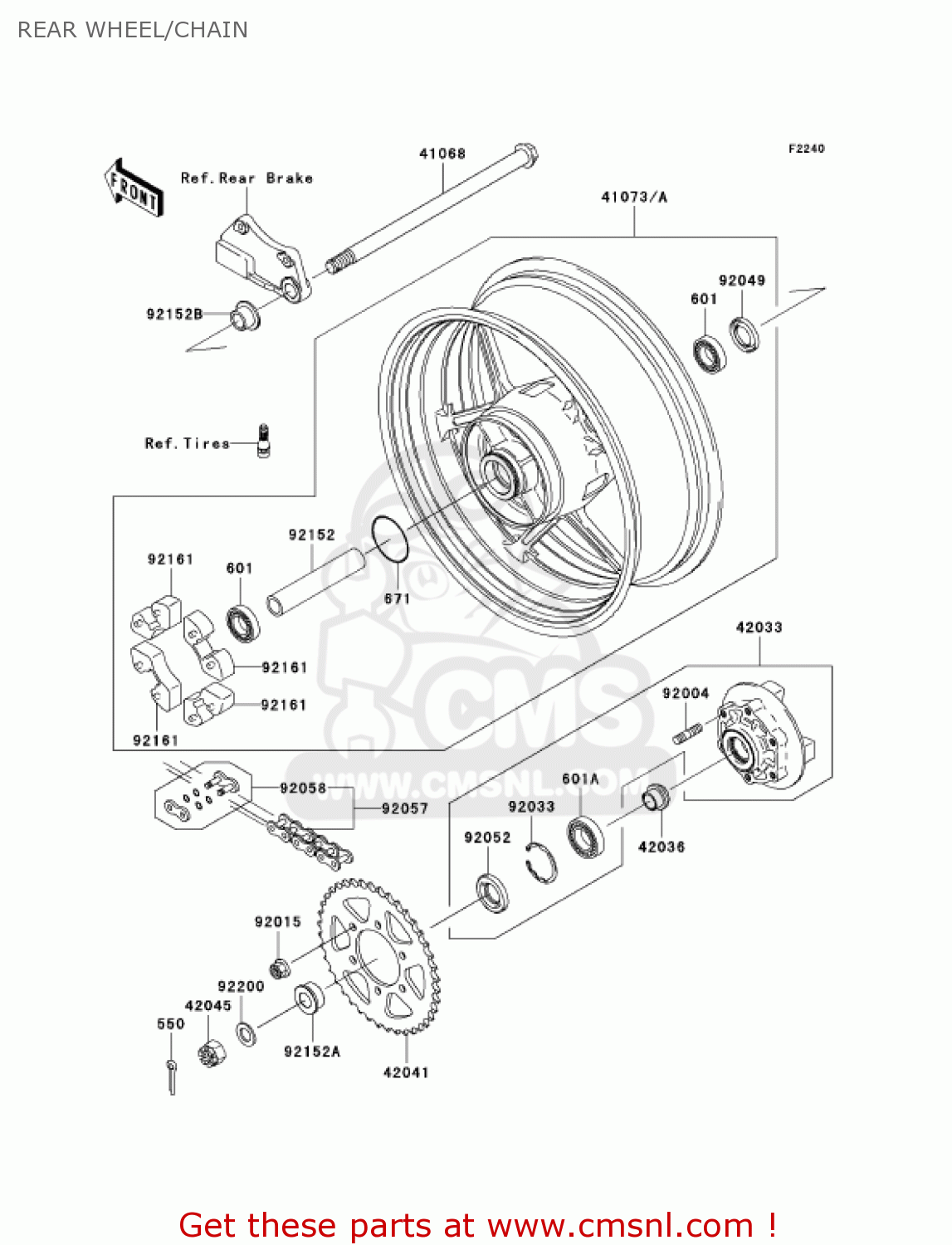

REAR WHEEL/CHAIN

ref

part #

description

quantity

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6204UU
ref: 601

BEARING-BALL,6204UUC3

€ 28.00

601A

601B6205UU
ref: 601A

BEARING-BALL

€ 27.50

671

671B2560
ref: 671

O RING,60MM

€ 1.50

41068

410680023
ref: 41068

AXLE,RR

€ 76.50

41073

410730009V5
ref: 41073
[CN]

WHEEL-ASSY,RR,SILVER

€ 914.50

41073A

4107300092A
ref: 41073A

WHEEL-ASSY,RR,GRAYSTO

€ 912.00

42033

420330003
ref: 42033

COUPLING-ASSY,RR HUB

€ 217.00

42036

420361251
ref: 42036

SLEEVE,RR HUB,L=23

€ 18.00

42041

420410010
ref: 42041

SPROCKET-HUB,43T

€ 81.50

42045

42045018
ref: 42045

NUT,18MM

€ 7.50

92004

920041275
ref: 92004

STUD

€ 6.50

92015

920151335
ref: 92015

NUT,FLANGED,10MM

€ 1.50

92033

920331043
ref: 92033

RING,SNAP,56.2M/M

€ 6.00

92049

920491056
ref: 92049

OIL SEAL,BJN28475

€ 8.50

92052

92052006
ref: 92052

OIL SEAL WTC35527

€ 6.50

92057

920570079
ref: 92057

CHAIN,DRIVE,EK520MVXL

€ 161.50

92058

920580002
ref: 92058

JOINT-CHAIN,DRIVE

€ 8.50

92152

921520070
ref: 92152

COLLAR,RR HUB,L=150

€ 15.00

92152A

921520118
ref: 92152A

COLLAR,RR AXLE,LH,L=1

€ 5.50

92152B

921521162
ref: 92152B

COLLAR,RR AXLE,RH,L=2

€ 16.50

92161

921610342
ref: 92161

DAMPER,SHOCK,RR HUB

€ 19.00

92200

922001489
ref: 92200

WASHER

€ 1.50

all assemblies
