RADIATOR

ZR750K6F Z750S 2006 USA CALIFORNIA CANADA

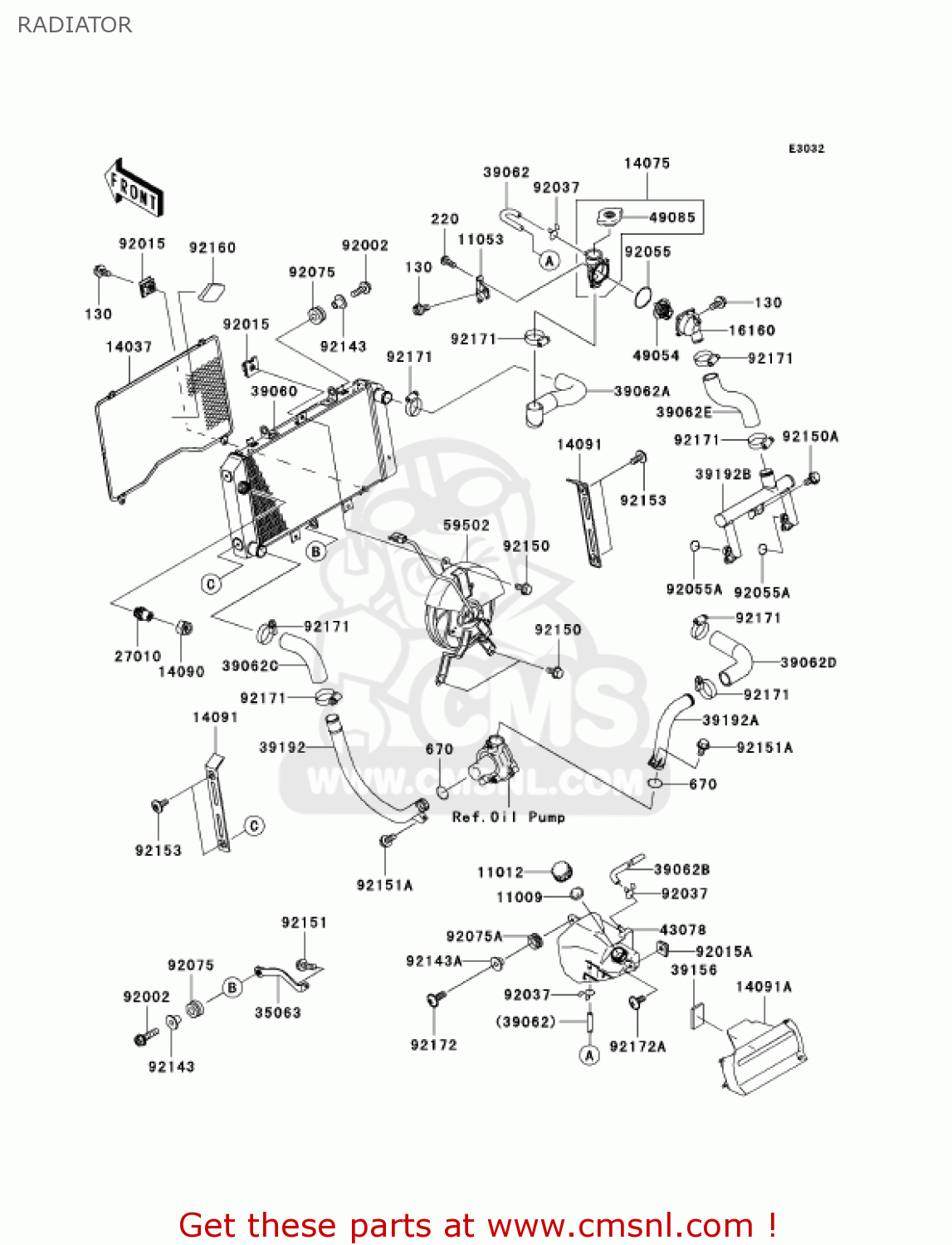

Radiator diagram ZR750K6F Z750S 2006 USA CALIFORNIA CANADA

RADIATOR ZR750K6F Z750S 2006 USA CALIFORNIA CANADA
RADIATOR ZR750K6F Z750S 2006 USA CALIFORNIA CANADA
RADIATOR ZR750K6F Z750S 2006 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
11053
110531070
ref: 11053
BRACKET,THERMOSTAT
€ 8.00
14037
140371315
ref: 14037
SCREEN
140371315
€ 67.50
14075
140750001
ref: 14075
CAP-ASSY
140750001
€ 124.00
14090
140901830
ref: 14090
COVER
140901830
€ 3.00
14091
140910097
ref: 14091
COVER,RADIATOR
€ 65.00
14091A
140911532
ref: 14091A
COVER
€ 29.00
16160
161600039
ref: 16160
BODY,LWR
€ 51.00
27010
270101443
ref: 27010
SWITCH
270101443
€ 115.50
35063
350630065
ref: 35063
STAY,RADIATOR
350630065
€ 10.50
39060
390600007
ref: 39060
RADIATOR
390600007
€ 747.50
39062
390620013
ref: 39062
HOSE-COOLING,THERMO-R
€ 12.00
39062A
390620045
ref: 39062A
HOSE-COOLING,THERMO-R
€ 35.50
39062B
390621208
ref: 39062B
HOSE-COOLING
€ 25.00
39062C
390621851
ref: 39062C
HOSE-COOLING,FITTING
€ 91.00
39062D
390621914
ref: 39062D
HOSE-COOLING,PUMP-CYL
390621914
€ 26.50
39062E
390621916
ref: 39062E
HOSE-COOLING,HEAD-THE
390621916
€ 30.50
39156
391560018
ref: 39156
PAD,TAIL COVER
€ 2.50
39192
391920012
ref: 39192
PIPE-WATER
391920012
€ 48.00
39192A
391920015
ref: 39192A
PIPE-WATER
391920015
€ 40.50
39192B
391921151
ref: 39192B
PIPE-WATER
€ 195.00
43078
430781187
ref: 43078
RESERVOIR
€ 25.00
49054
490541067
ref: 49054
THERMOSTAT
490541067
€ 46.00
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
490851066
€ 23.50
59502
595020008
ref: 59502
FAN-ASSY
€ 731.00
92002
920021086
ref: 92002
BOLT,6X25
920021086
€ 3.50
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92015A
920151531
ref: 92015A
NUT
920151531
€ 3.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
92055A
920551350
ref: 92055A
RING-O,18.54X2.6
920551350
€ 3.00
92075
920751123
ref: 92075
DAMPER,RUBBER
920751123
€ 3.00
92075A
920751634
ref: 92075A
DAMPER
920751634
€ 3.00
92143
921431353
ref: 92143
COLLAR
921431353
€ 5.50
92143A
921431962
ref: 92143A
COLLAR
921431962
€ 4.00
92150
921501186
ref: 92150
BOLT
921501186
€ 3.00
92150A
921501841
ref: 92150A
BOLT,6X12
€ 3.50
92151
921511774
ref: 92151
BOLT
€ 1.00
92151A
921511997
ref: 92151A
BOLT,6X12
921511997
€ 1.00
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
670
670B2021
ref: 670
O RING,21MM
670B2021
€ 3.00
92153
921530603
ref: 92153
BOLT,6X14
€ 1.50
92160
921601863
ref: 92160
DAMPER
921601863
€ 3.00
92171
921710179
ref: 92171
CLAMP
921710179
€ 7.50
92172
921720002
ref: 92172
SCREW,6X18
921720002
€ 2.00
92172A
921720004
ref: 92172A
SCREW,6X14
921720004
€ 2.00
