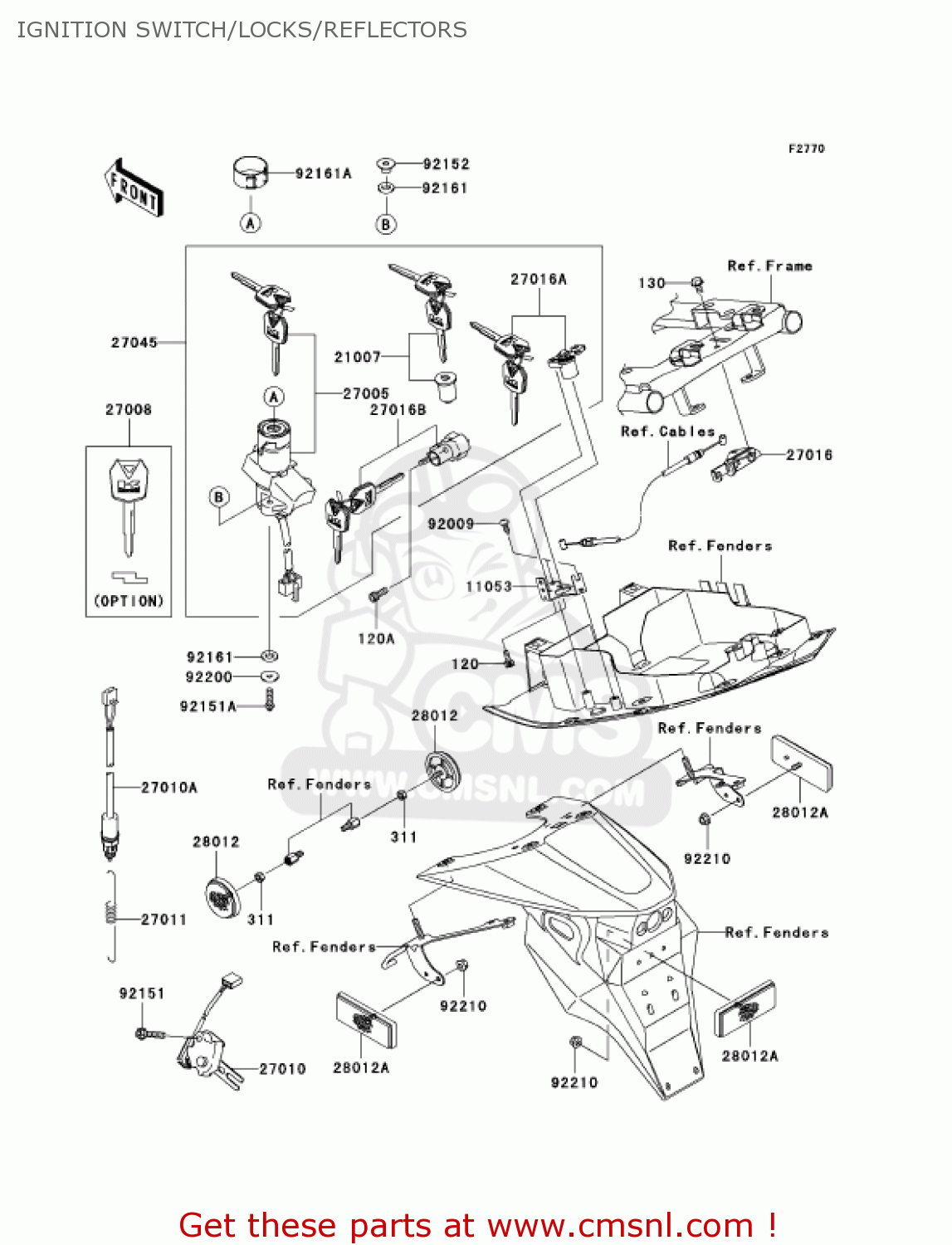

IGNITION SWITCH/LOCKS/REFLECTORS

ref

part #

description

quantity

120

120S0512
ref: 120

BOLT-SOCKET

€ 1.00

120A

120W0616
ref: 120A

BOLT-SOCKET

€ 1.00

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

311

311L0500
ref: 311

NUT-HEX

€ 1.00

11053

110531520
ref: 11053

BRACKET,SEAT LOCK

€ 4.50

21007

210075057
ref: 21007

ROTOR,LOCK,TANK CAP

€ 68.50

27005

270055135
ref: 27005

SWITCH-ASSY-IGNITION

€ 236.00

27008

270080030
ref: 27008
(OPTION)

KEY-LOCK,BLANK

€ 13.50

27010

270101470
ref: 27010

SWITCH,SIDE STAND

€ 53.50

27010A

270101479
ref: 27010A

SWITCH,REAR BRAKE

€ 20.00

27011

27011021
ref: 27011

SPRING,BRAKE LAMP SW

€ 15.50

27016

270161115
ref: 27016

LOCK-ASSY,SEAT STRIKE

€ 27.00

27016A

270165309
ref: 27016A

LOCK-ASSY,SEAT

€ 79.00

27016B

270165326
ref: 27016B

LOCK-ASSY,HELMET

€ 60.00

27045

270455310
ref: 27045

SWITCH-ASSY

€ 211.50

28012

28012016
ref: 28012

REFLECTOR REFLEX

€ 16.00

28012A

280121077
ref: 28012A

REFLECTOR-REFLEX

€ 16.00

92009

920091138
ref: 92009

SCREW,TAPPING,5X12,BL

€ 2.50

92151

921511216
ref: 92151

BOLT

€ 1.50

92151A

921511946
ref: 92151A

BOLT,TORX,6X22

€ 2.50

92152

921520352
ref: 92152

COLLAR

€ 4.00

92161

921610240
ref: 92161

DAMPER

€ 1.50

92161A

921610257
ref: 92161A

DAMPER,IGINITION SWIT

€ 3.50

92200

922000212
ref: 92200

WASHER,6X20X1.6

€ 2.00

92210

922100007
ref: 92210

NUT,FLANGED,5MM

€ 2.00

all assemblies
