Genuine ZR Kawasaki Parts delivered quickly!


STARTER MOTOR

ZR750K6F Z750S 2006 USA CALIFORNIA CANADA

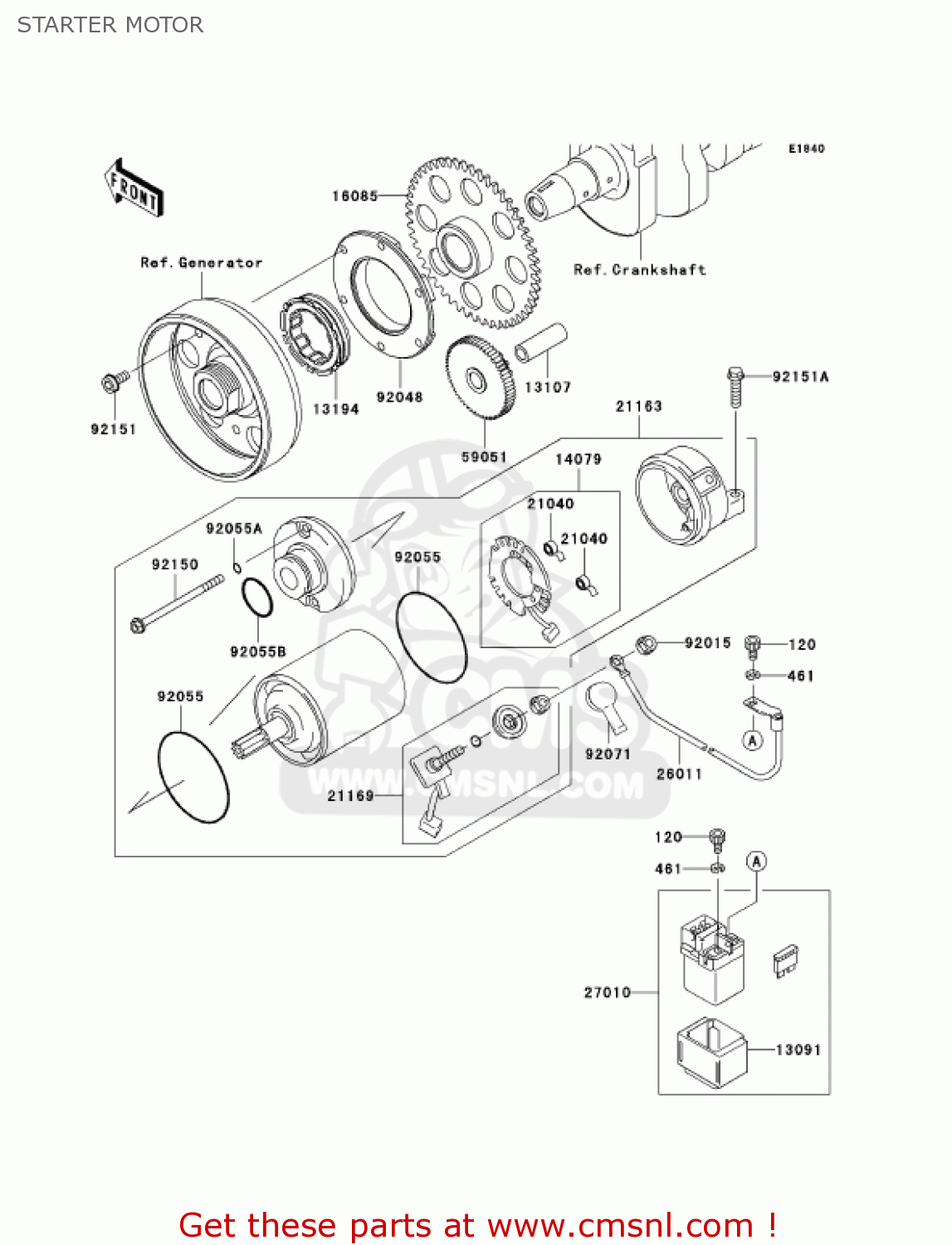

Starter motor diagram ZR750K6F Z750S 2006 USA CALIFORNIA CANADA

STARTER MOTOR ZR750K6F Z750S 2006 USA CALIFORNIA CANADA
STARTER MOTOR ZR750K6F Z750S 2006 USA CALIFORNIA CANADA
STARTER MOTOR ZR750K6F Z750S 2006 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120S0510
ref: 120
BOLT-SOCKET
120S0510
€ 0.50
461
461K0500
ref: 461
WASHER-SPRING,5MM,BLA
461K0500
€ 0.50
13091
130911992
ref: 13091
HOLDER
€ 5.50
13107
131071377
ref: 13107
SHAFT,IDLER GEAR
131071377
€ 3.50
13194
131941096
ref: 13194
CLUTCH-ONEWAY
131941096
€ 81.00
14079
140790009
ref: 14079
HOLDER-ASSY,STARTER
140790009
€ 76.00
16085
160851303
ref: 16085
GEAR,CLUTCH ONEWAY
160851303
€ 107.00
21040
210400001
ref: 21040
SPRING-BRUSH
210400001
€ 1.50
21163
211630024
ref: 21163
STARTER-ELECTRIC
€ 642.00
21169
211691058
ref: 21169
TERMINAL,STARTER
211691058
€ 44.00
26011
260110015
ref: 26011
WIRE-LEAD,STARTER
€ 50.00
27010
270101376
ref: 27010
SWITCH,MAGNETIC
270101376
€ 106.50
59051
590510037
ref: 59051
GEAR-SPUR,IDLER
€ 76.00
92015
920151623
ref: 92015
NUT
920151623
€ 3.00
92048
920481114
ref: 92048
RACE,CLUTCH ONEWAY
920481114
€ 66.00
92055
920551260
ref: 92055
RING-O,62MM
920551260
€ 7.50
92055A
920551261
ref: 92055A
RING-O,4.5MM
920551261
€ 2.00
92055B
920551262
ref: 92055B
RING-O,24.4X3.1
920551262
€ 8.50
92071
920711120
ref: 92071
GROMMET,STARTER TERMI
920711120
€ 8.50
92150
921501237
ref: 92150
BOLT
921501237
€ 7.00
92151
921511335
ref: 92151
BOLT,6X14
€ 2.00
92151A
921511930
ref: 92151A
BOLT,6X25
921511930
€ 2.00
