TAILLIGHT(S)

ZR1200A4 ZRX1200R 2004 USA CALIFORNIA CANADA

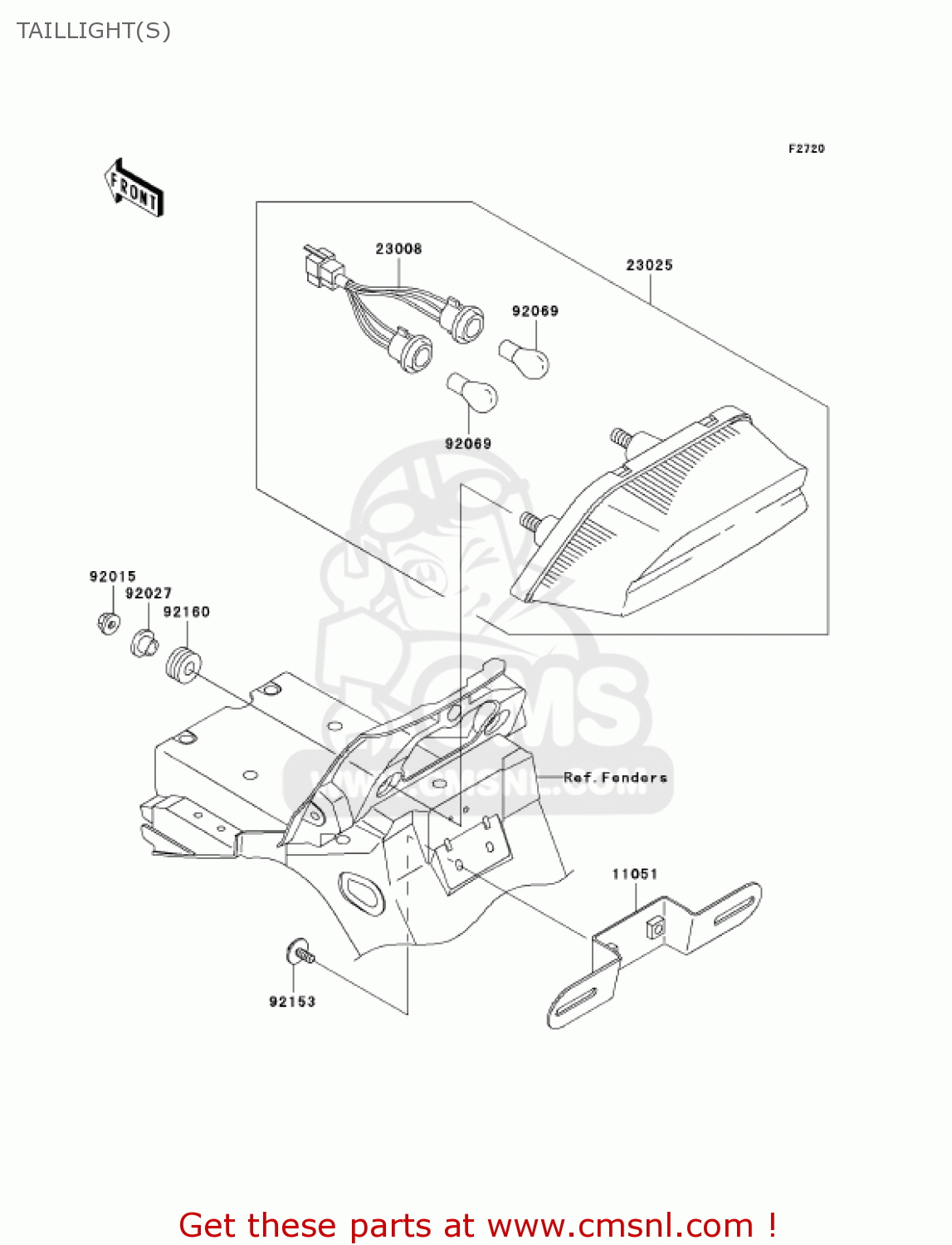

Taillight(s) diagram ZR1200A4 ZRX1200R 2004 USA CALIFORNIA CANADA

TAILLIGHT(S) ZR1200A4 ZRX1200R 2004 USA CALIFORNIA CANADA

TAILLIGHT(S) ZR1200A4 ZRX1200R 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11051

110511128
ref: 11051

LICENSE BRACKET

€ 9.50

23008

230081413
ref: 23008

SOCKET-ASSY,TAIL LAMP

€ 29.50

23025

230251316
ref: 23025

LAMP-TAIL

€ 118.00

92015

920151367
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92027

920271183
ref: 92027

COLLAR,6.5X10X14.1

€ 3.50

92069

92069063
ref: 92069

BULB 12V 21/5W

€ 4.50

92153

921530684
ref: 92153

BOLT,6X16

€ 3.00

92160

921601162
ref: 92160

DAMPER

€ 3.00
