Genuine ZR Kawasaki Parts delivered quickly!


REAR WHEEL/CHAIN

ZR1200A4 ZRX1200R 2004 USA CALIFORNIA CANADA

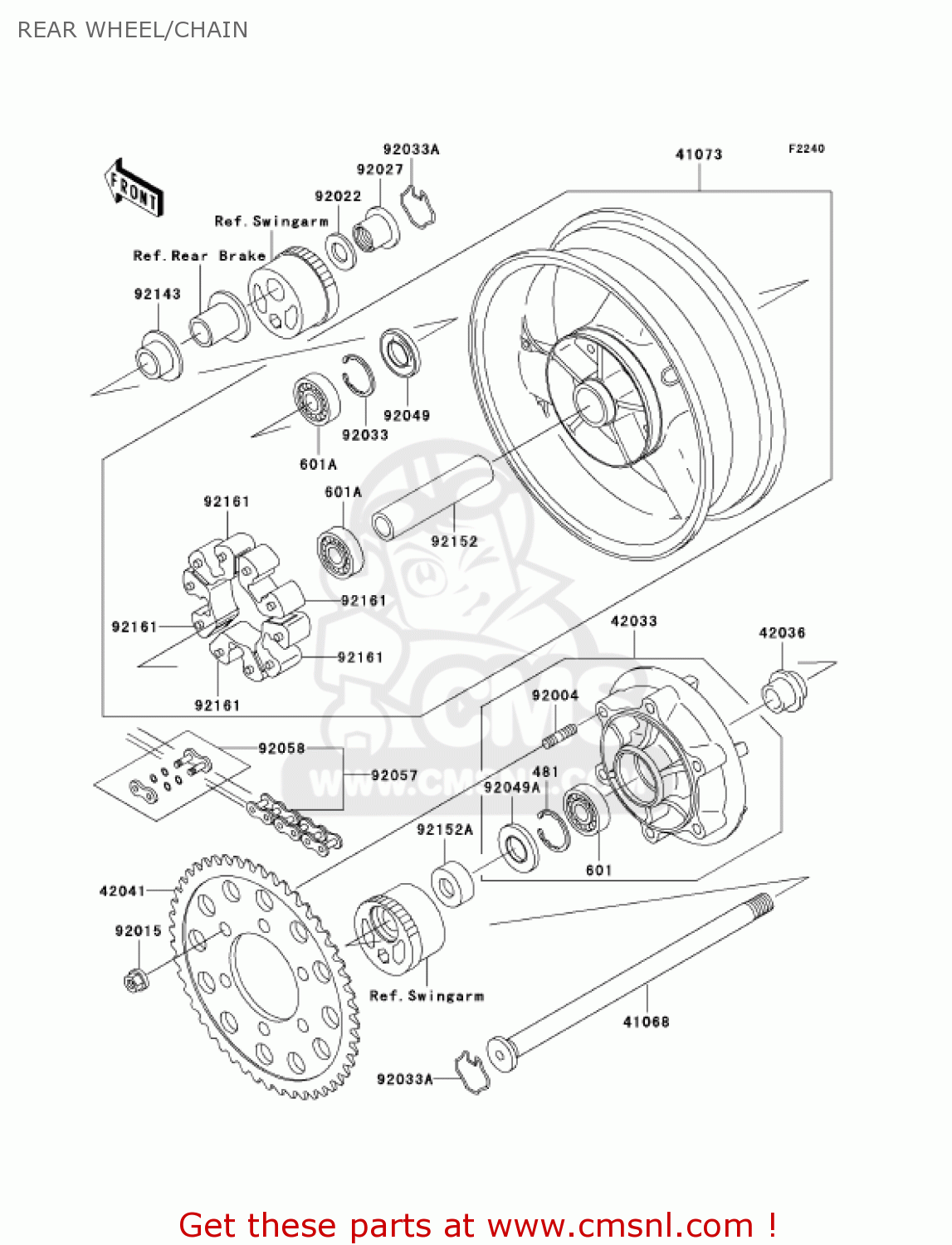

Rear wheel/chain diagram ZR1200A4 ZRX1200R 2004 USA CALIFORNIA CANADA

REAR WHEEL/CHAIN ZR1200A4 ZRX1200R 2004 USA CALIFORNIA CANADA
REAR WHEEL/CHAIN ZR1200A4 ZRX1200R 2004 USA CALIFORNIA CANADA
REAR WHEEL/CHAIN ZR1200A4 ZRX1200R 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
481
481J5500
ref: 481
CIRCLIP
€ 6.50
601
601B6006G
ref: 601
BEARING-BALL,#6006G
601B6006G
€ 27.50
601A
601B6304UU
ref: 601A
BEARING-BALL,#6304UUC
601B6304UU
€ 34.50
41068
410681429
ref: 41068
AXLE,RR
410681429
€ 96.50
41073
410730017R2
ref: 41073
WHEEL-ASSY,RR,BLACK
€ 877.50
42033
420331203
ref: 42033
COUPLING-ASSY,RR HUB
€ 282.00
42036
420361366
ref: 42036
SLEEVE,RR HUB COUPLIN
420361366
€ 16.50
42041
420411387
ref: 42041
SPROCKET-HUB,42T
420411387
€ 65.50
92004
920041275
ref: 92004
STUD
920041275
€ 6.50
92015
920151335
ref: 92015
NUT,FLANGED,10MM
920151335
€ 1.50
92022
920221618
ref: 92022
WASHER,23X32X2.3
920221618
€ 4.00
92027
920271810
ref: 92027
COLLAR,RR AXLE,L=28
920271810
€ 21.00
92033
920331043
ref: 92033
RING,SNAP,56.2M/M
920331043
€ 6.00
92033A
920331156
ref: 92033A
RING-SNAP,RR AXLE
920331156
€ 3.00
92049
920491061
ref: 92049
SEAL-OIL,28X52X5
920491061
€ 13.00
92049A
920491263
ref: 92049A
SEAL-OIL,PJN40556
920491263
€ 12.50
92057
920570067
ref: 92057
CHAIN,DRIVE,DID50VA8X
€ 240.00
92058
920580004
ref: 92058
JOINT-CHAIN,DRIVE
€ 7.50
92143
921431915
ref: 92143
COLLAR,RR AXLE,RH,L=1
921431915
€ 21.50
92152
921520129
ref: 92152
COLLAR,RR HUB
921520129
€ 28.00
92152A
921521280
ref: 92152A
COLLAR,RR AXLE,LH,L=1
921521280
€ 23.50
92161
921611069
ref: 92161
DAMPER,SHOCK,RR HUB
921611069
€ 19.50
