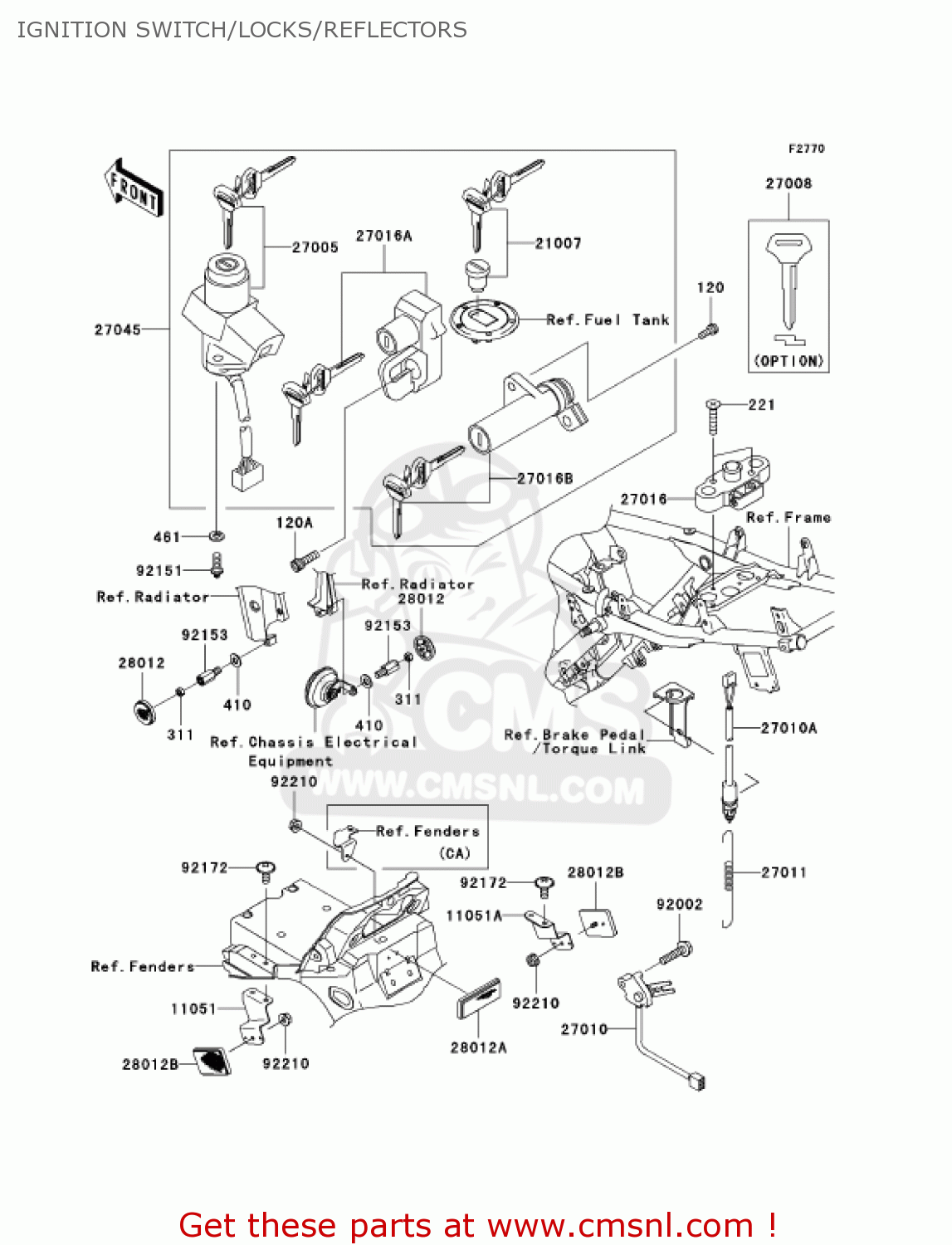

IGNITION SWITCH/LOCKS/REFLECTORS

ref

part #

description

quantity

120

120S0512
ref: 120

BOLT-SOCKET

€ 1.00

120A

120S0620
ref: 120A

BOLT-SOCKET,6X20

€ 1.00

221

221F0630
ref: 221

SCREW-CSK-CROSS

€ 1.00

311

311L0500
ref: 311

NUT-HEX

€ 1.00

410

410F0800
ref: 410

WASHER-PLANE-SMALL,8M

€ 3.00

461

461L0600
ref: 461

WASHER-SPRING

€ 0.50

11051

110511131
ref: 11051

BRACKET,REFLECTOR,RR,

€ 9.00

11051A

110511132
ref: 11051A

BRACKET,REFLECTOR,RR,

€ 9.00

21007

210075042
ref: 21007

ROTOR,LOCK,TANK CAP

€ 65.50

27005

270055120
ref: 27005

SWITCH-ASSY-IGNITION

€ 100.00

27008

270081189
ref: 27008
(OPTION)

KEY-LOCK,BLANK

€ 12.50

27010

270101465
ref: 27010

SWITCH,SIDE STAND

€ 50.50

27010A

270101479
ref: 27010A

SWITCH,REAR BRAKE

€ 20.00

27011

27011017
ref: 27011

SPRING,BRK LIGHT SW

€ 6.50

27016

270161098
ref: 27016

LOCK-ASSY,SEAT STRIKE

€ 72.50

27016A

270165249
ref: 27016A

LOCK-ASSY,HELMET

€ 56.50

27016B

270165250
ref: 27016B

LOCK-ASSY,SEAT

€ 59.50

27045

270455142
ref: 27045

SWITCH-ASSY

€ 244.50

28012

28012016
ref: 28012

REFLECTOR REFLEX

€ 16.00

28012A

280121077
ref: 28012A

REFLECTOR-REFLEX

€ 16.00

28012B

280121088
ref: 28012B

REFLECTOR-REFLEX

€ 15.00

92002

920021582
ref: 92002

BOLT,6X25

€ 3.00

92151

921511911
ref: 92151

BOLT,TORX,6X16

€ 1.50

92153

921530788
ref: 92153

BOLT,8MM

€ 2.50

92172

921720004
ref: 92172

SCREW,6X14

€ 2.00

92210

922100007
ref: 92210

NUT,FLANGED,5MM

€ 2.00

all assemblies
