CAMSHAFT(S)/TENSIONER

ZR1200A4 ZRX1200R 2004 USA CALIFORNIA CANADA

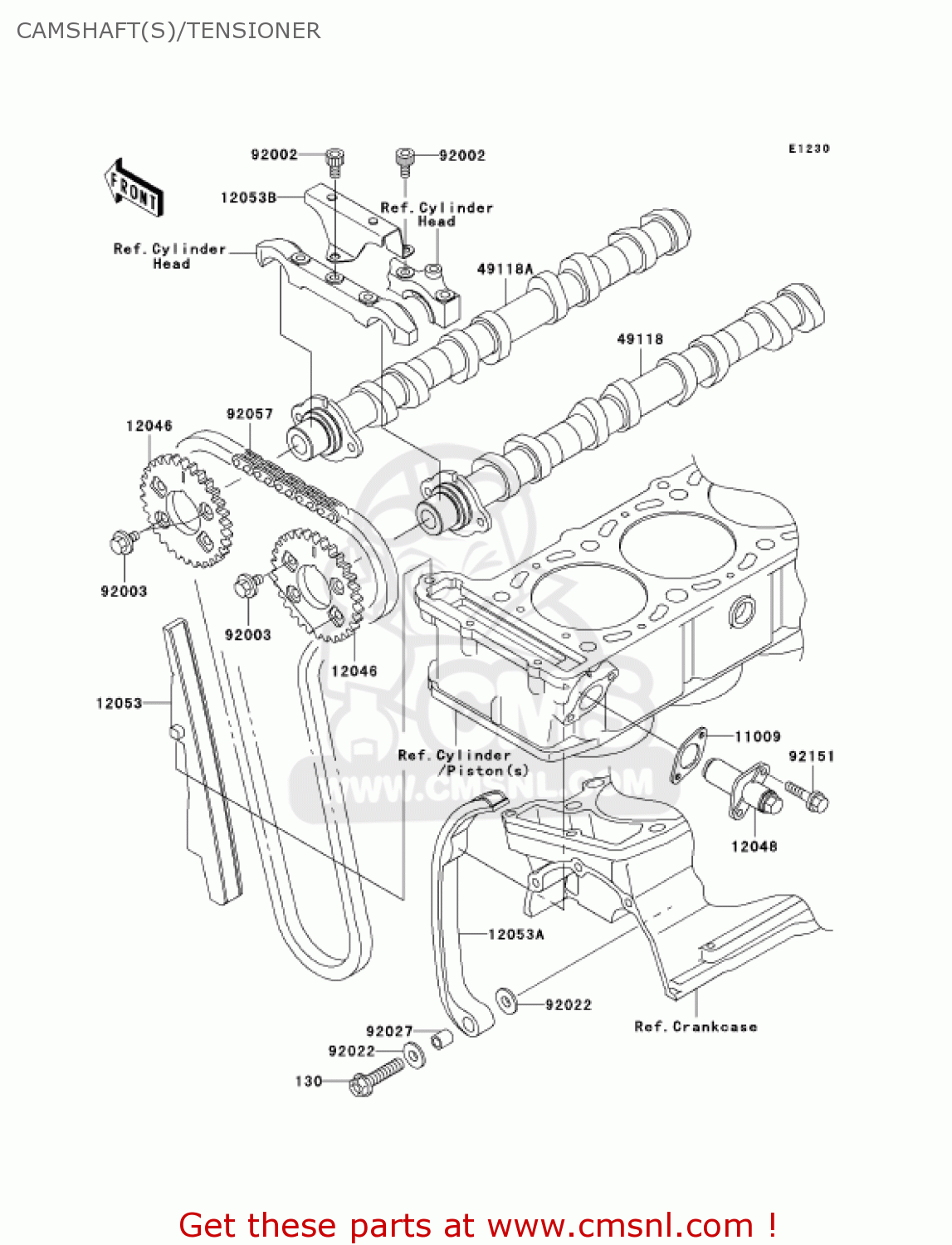

Camshaft(s)/tensioner diagram ZR1200A4 ZRX1200R 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130G0835
ref: 130

BOLT,FLANGED,8X35

€ 1.00

11009

110091858
ref: 11009

GASKET,TENSIONER (NAS)

€ 3.00

12046

120461112
ref: 12046

SPROCKET,CAMSHAFT,34T

€ 68.50

12048

120481113
ref: 12048

TENSIONER-ASSY

€ 106.00

12053

120531241
ref: 12053

GUIDE-CHAIN,FR

€ 30.50

12053A

120531242
ref: 12053A

GUIDE-CHAIN,RR

€ 55.00

12053B

120531243
ref: 12053B

GUIDE-CHAIN,UPP

€ 27.00

49118

491181202
ref: 49118

CAMSHAFT-COMP,INTAKE

€ 529.50

49118A

491181203
ref: 49118A

CAMSHAFT-COMP,EXHAUST

€ 644.00

92002

920021796
ref: 92002

BOLT,SOCKET,6X12

€ 3.00

92003

92003208
ref: 92003

BOLT,SPROCKET FITTING

€ 2.50

92022

920221533
ref: 92022

WASHER,8.2X19X2

€ 3.50

92027

920271763
ref: 92027

COLLAR,8.2X10.5X15.6

€ 4.00

92057

920571255
ref: 92057

CHAIN,CAMSHAFT

€ 35.50

92151

921511190
ref: 92151

BOLT,6X25

€ 2.00
